Description

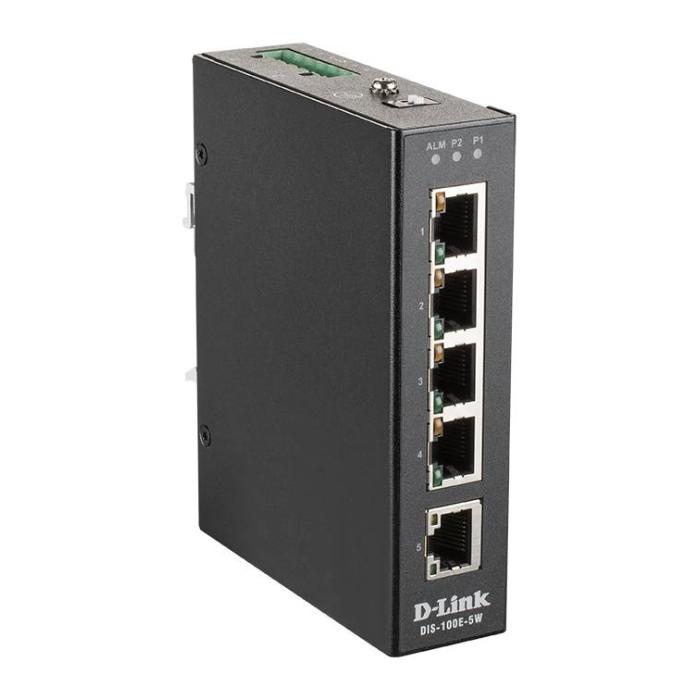

D-Link 5-Port Unmanaged Industrial Switch with 5 x 10/100 BaseT(X) ports, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Rack mounting, Wall mountable
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Relay outputs: 1
Network
- Networking standards: IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- MAC address table: 1000 entries
- Store-and-forward: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Black
- International Protection (IP) code: IP30
- Wall mountable: Yes
- DIN rail mounting: Yes
Performance
- Plug and Play: Yes
- Mean time between failures (MTBF): 219000 h
Power
- DC input voltage: 12 - 58 V
- Power consumption (typical): 0.95 W
- Power consumption (max): 1.56 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 29.1 mm
- Depth: 89.4 mm
- Height: 109.2 mm
- Weight: 320 g
Packaging data
- Package width: 140 mm
- Package depth: 178 mm
- Package height: 83 mm
- Package weight: 488 g
Technical details
- Shipping (inner) case height: 20 cm
- Shipping (inner) case width: 30.5 cm
- Shipping (inner) case length: 43 cm
- Shipping (inner) case net weight: 5.78 kg
- Products per shipping (inner) case: 10 pc(s)
- Pallet gross weight (air): 226.4 kg
- Master (outer) cases per pallet (air): 36 pc(s)
- Products per pallet (air): 360 pc(s)
- Pallet gross length: 120 cm
- Pallet gross width: 110 cm
- Pallet height (air): 135 cm
- Pallet gross weight (sea): 330.7 kg
- Master (outer) cases per pallet (sea): 54 pc(s)
- Products per pallet (sea): 540 pc(s)
- Pallet height (sea): 195 cm
- Shipping (inner) case gross weight: 5.79 kg
Certificates
- Certification: UL 60950‑1 CE FCC
Logistics data
- Harmonized System (HS) code: 85176990
