Description
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: MIB II RFC 1213, MIB RFC 1493, RMON (1,2,3,9) RFC 2819 RFC 1757
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 80
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- MAC address auto-learning supported: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN, MAC address-based VLAN
- Number of VLANs: 256
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 128 MB
Security
- DHCP features: DHCP server, DHCP relay
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SNMP, SNMPv3, SSH
- Loop protection: Yes
- BPDU filtering/protection: Yes
Multicast features
- Multicast support: Yes
- Number of multicast groups filtered: 256
Design
- Product colour: Black
- Housing material: Metal
- Reset button: Yes
- LED indicators: Yes
- International Protection (IP) code: IP30

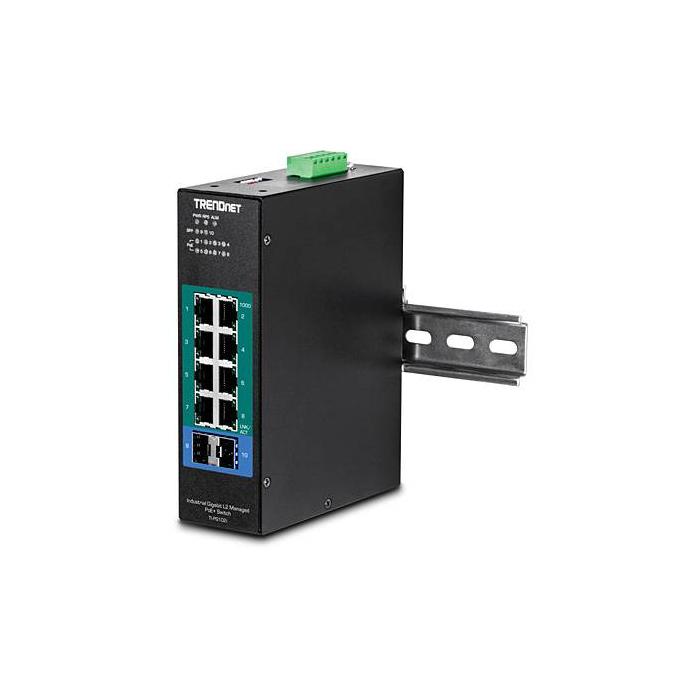

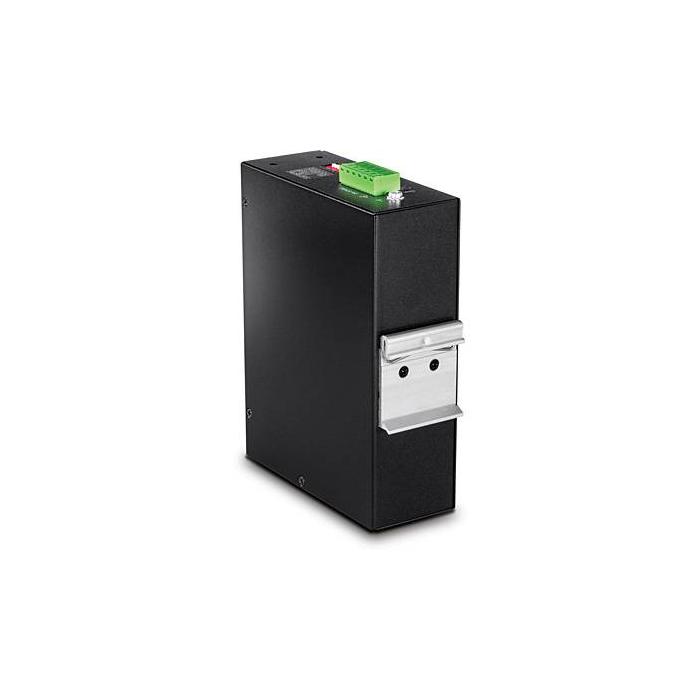

- DIN rail mounting: Yes
Performance
- Firmware upgradeable: Yes
- Mean time between failures (MTBF): 562234 h
Power

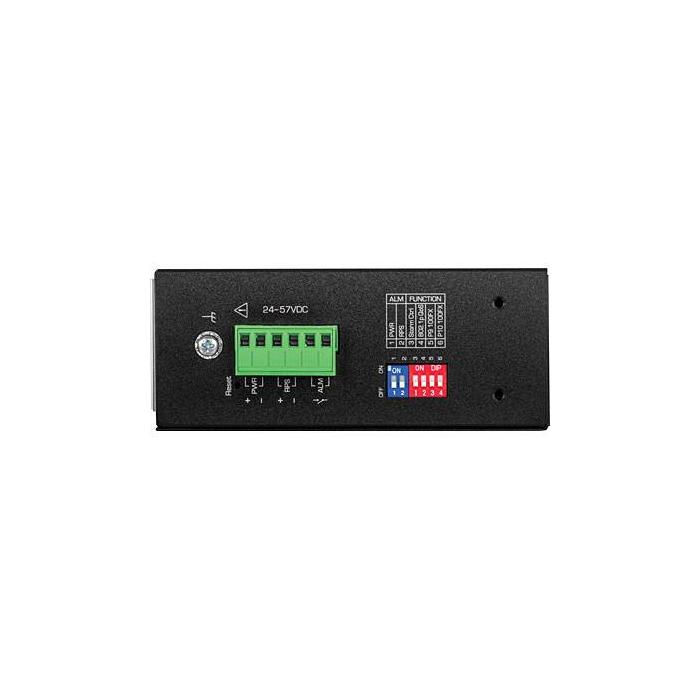

- DC input voltage: 24 - 57 V
- Power consumption (max): 253 W
- Surge protection: Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 160 mm
- Depth: 120 mm
- Height: 50 mm
- Weight: 930 g
Packaging content
- Quick start guide: Yes
Packaging data
- Terminal block included: Yes
- DIN rail included: Yes
Certificates
- Certification: CE, FCC, (IEC 60068-2-27), (IEC 60068-2-32), (IEC 60068-2-6)
Logistics data
- Harmonized System (HS) code: 85176990
