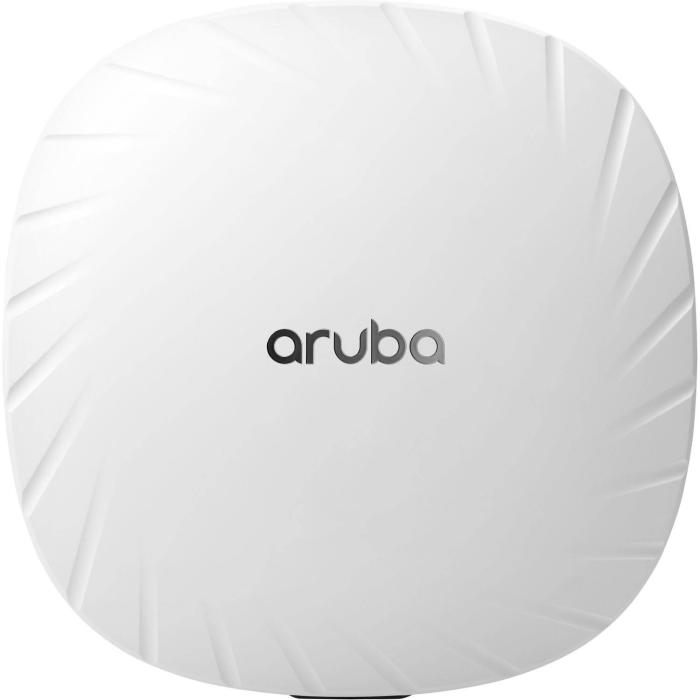

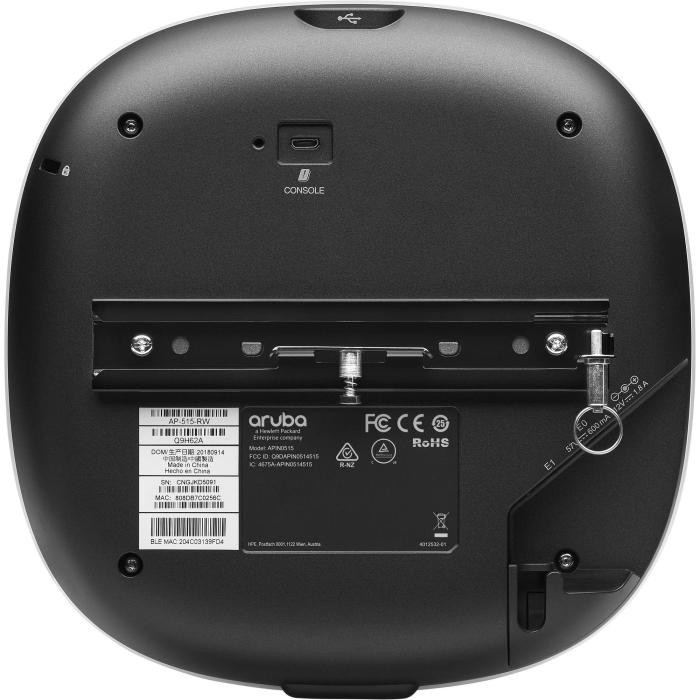

Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP

Specifications

Features


  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Maximum data transfer rate: 5375 Mbit/s
  • Maximum data transfer rate (2.4 GHz): 575 Mbit/s
  • Maximum data transfer rate (5 GHz): 4800 Mbit/s
  • Ethernet LAN data rates: 100,1000,2500 Mbit/s
  • Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz
  • Auto MDI/MDI-X: Yes
  • MIMO: Yes
  • Spread spectrum method: DSSS,OFDM
  • Modulation: 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK

Security


  • Security algorithms: WMM,WPA,WPA2

Ports & interfaces


  • Ethernet LAN (RJ-45) ports: 2
  • USB 2.0 ports quantity: 1
  • USB connector type: USB Type-A
  • DC-in jack: Yes

Power


  • Power over Ethernet (PoE): Yes
  • Power consumption (typical): 16 W

Design


  • Placement: Ceiling
  • Product colour: White
  • Cable lock slot: Yes
  • Cable lock slot type: Kensington

Antenna


  • Antenna type: Internal
  • Antenna direction type: Omni-directional
  • Antenna features: Integrated antenna
  • Antennas quantity: 4
  • Antenna gain level (max): 7.5 dBi

Operational conditions


  • Operating relative humidity (H-H): 5 - 93%
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Storage relative humidity (H-H): 5 - 93%

Weight & dimensions


  • Width: 200 mm
  • Depth: 200 mm
  • Height: 46 mm
  • Weight: 810 g

Packaging data


  • Package width: 230 mm
  • Package depth: 220 mm
  • Package height: 72 mm
  • Package weight: 1.01 kg
