Description

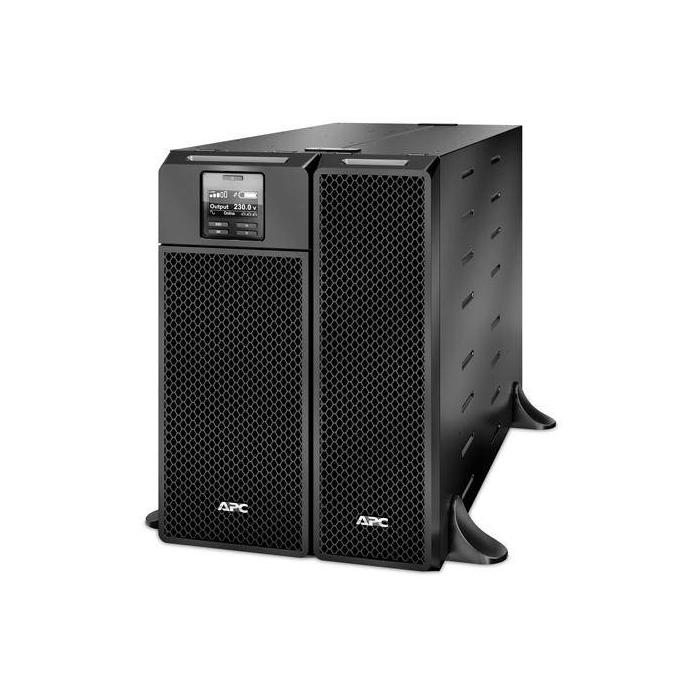

APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit, Double-conversion (Online), 6 kVA, 6000 W, Sine, 100 V, 275 V
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 6 kVA
- Output power: 6000 W
- Waveform: Sine
- Input operation voltage (min): 100 V
- Input operation voltage (max): 275 V
- Input frequency: 40 - 70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency regulation: 50/60 Hz
- Surge energy rating: 480 J
- Number of output phases: 1
- Efficiency: 94.4%
- Crest factor: 3:1
- Emergency Power Off (EPO): Yes
- Output voltage Total Harmonic Distortion (THD): 3%
- Noise level: 55 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Auto-restart: Yes
Ports & interfaces

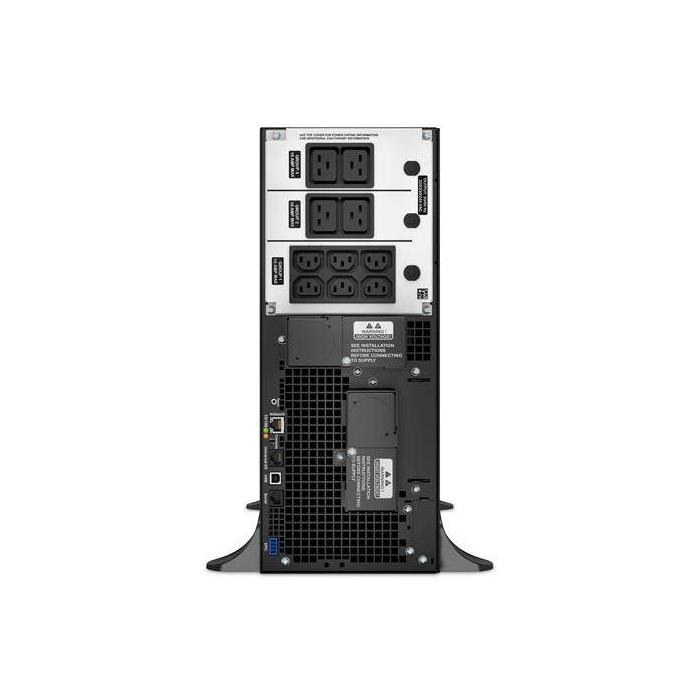

- AC outlet types: C13 coupler, C19 coupler
- Power plug: Hardwire
- AC outlets quantity: 10 AC outlet(s)
- Number of output IEC jumpers: 2
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RJ-45
- SmartSlot: Yes
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 902 VAh
- Typical backup time at full load: 2.5 min
- Typical backup time at half load: 8.7 min
- Battery life (max): 5 year(s)
- Battery recharge time: 1.5 h
- Hot-swap battery: Yes
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Rackmount/Tower
- Product colour: Black
- Display type: LCD
- LED indicators: Status
- International Protection (IP) code: IP20
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Certificates
- Compliance certificates: RoHS
- Certification: REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Packaging content
- Cables included: USB cable
- Quick installation guide: Yes
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 174 mm
- Depth: 719 mm
- Height: 432 mm
- Weight: 60 kg
Packaging data
- Temperature sensor: Yes
- Warranty card: Yes
- Software CD: Yes
- Package width: 610 mm
- Package depth: 960 mm
- Package height: 370 mm
- Package weight: 67 kg
Logistics data
- Products per pallet: 6 pc(s)
- Harmonized System (HS) code: 85078000
- Total carbon footprint (kg of CO2e): 13539.46
Other features
- Packaging content: Removable support feet Web/SNMP Management Card
