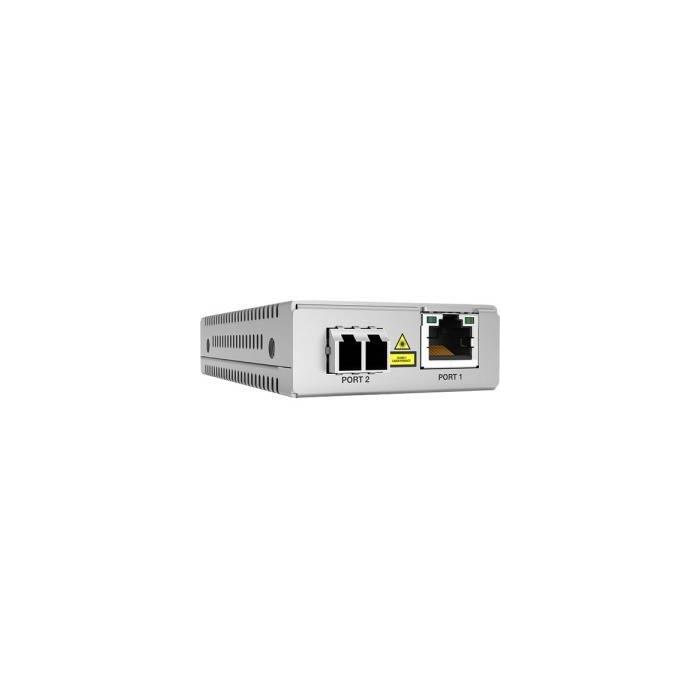

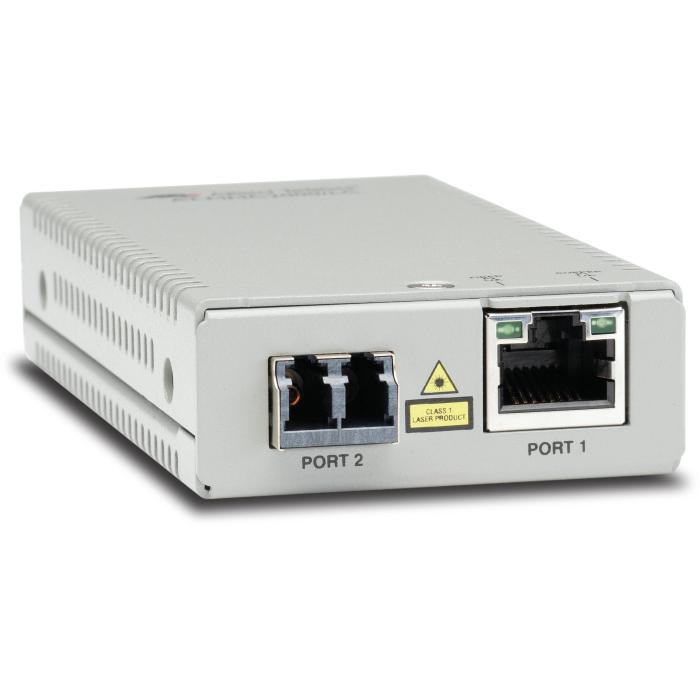

Allied Telesis AT-MMC2000/LC-960 network media converter 1000 Mbit/s 1310 nm Multi-mode Grey
More info
Brand: ALLIED TELESIS
356.93 €
302.48 €
without VAT
Not avaliable for your address
SKU:
85946
PRC:
299179
EAN:
767035218670
PN:
AT-MMC2000/LC-960
Description
Allied Telesis AT-MMC2000/LC-960, 1000 Mbit/s, 10Base-T, 100Base-T, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 10Base-T, 100Base-T, 1000Base-T
- Converter output interface: 1000Base-SX
- Networking standards: IEEE 802.1Q
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Fiber ethernet cabling technology: 1000BASE‑SX
- Jumbo frames support: Yes
- VLAN support: Yes
- Duplex system: Full
Performance
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Fiber mode structure: Multi-mode
- Fiber cable diameters supported (core/cladding): 50/125, 62.5/125 µm
- Tx power (min): -20 dBmW
- Tx power (max): -14 dBmW
- Rx power (min): -32 dBmW
Features
- Internal: No
- LED indicators: Activity, Link
- Product colour: Grey
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 2
- Fiber optic connector: LC
- DC-in jack: Yes
Power
- Input voltage: 12 V
- Input current: 0.14 A
- Power consumption (typical): 1.7 W
- Power over Ethernet (PoE): Yes
Weight & dimensions
- Width: 54.9 mm
- Depth: 101.6 mm
- Height: 21.8 mm
- Weight: 170 g
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
Packaging content
- User guide: Yes
- Manual: Yes
- Quick installation guide: Yes
Certificates
- Safety: FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
- Certification: CE, EN55024, EN61000-3-2, EN61000-3-3
Logistics data
- Harmonized System (HS) code: 85176990
