Description

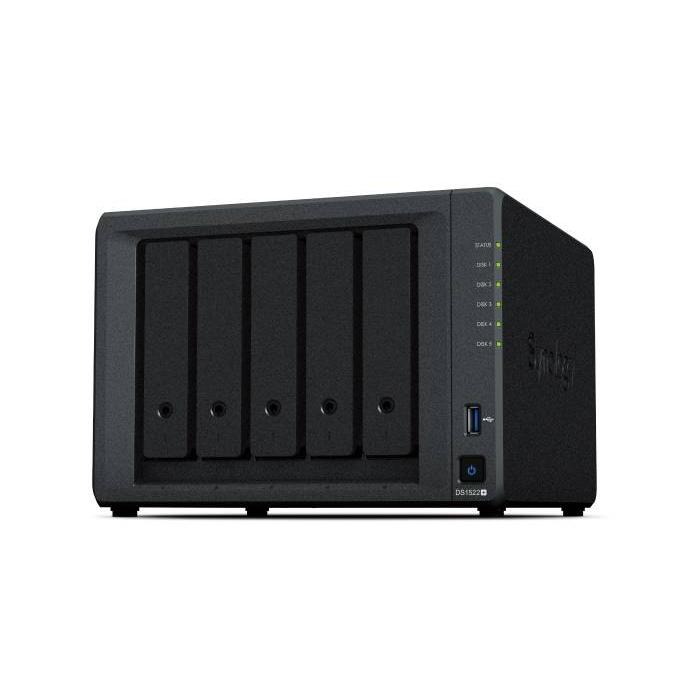

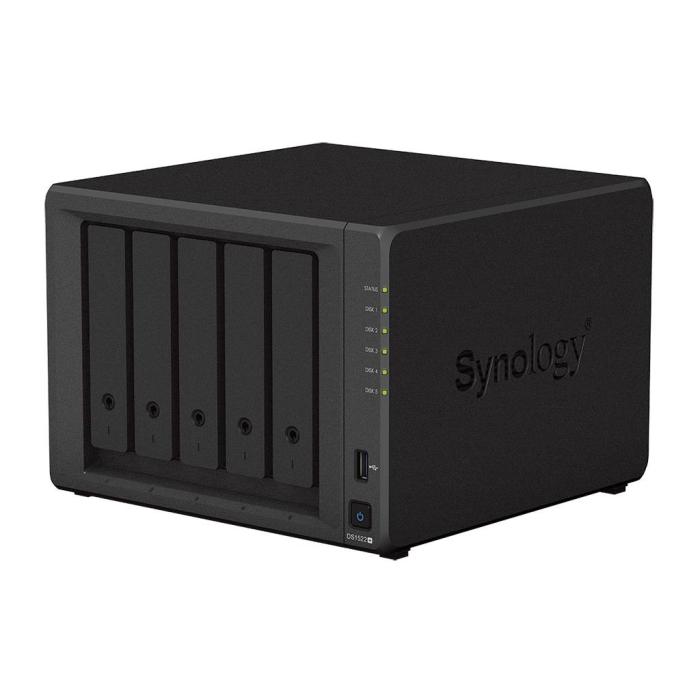

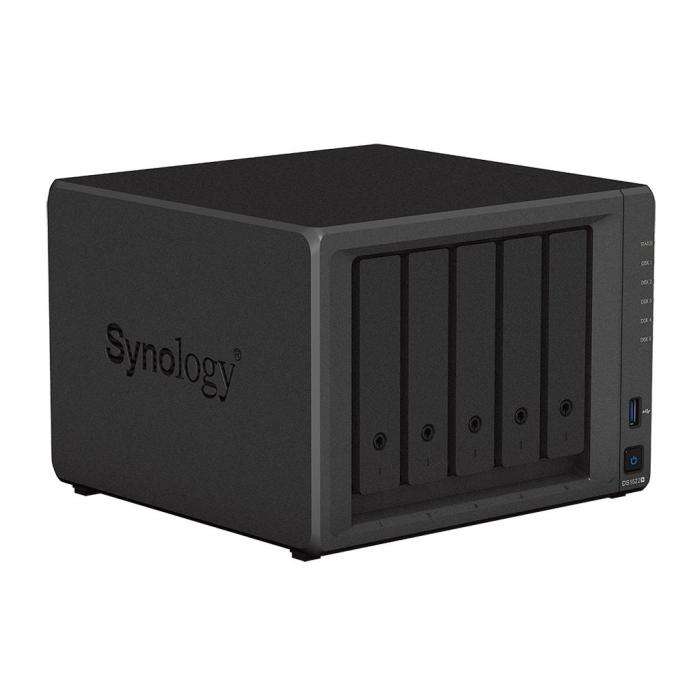

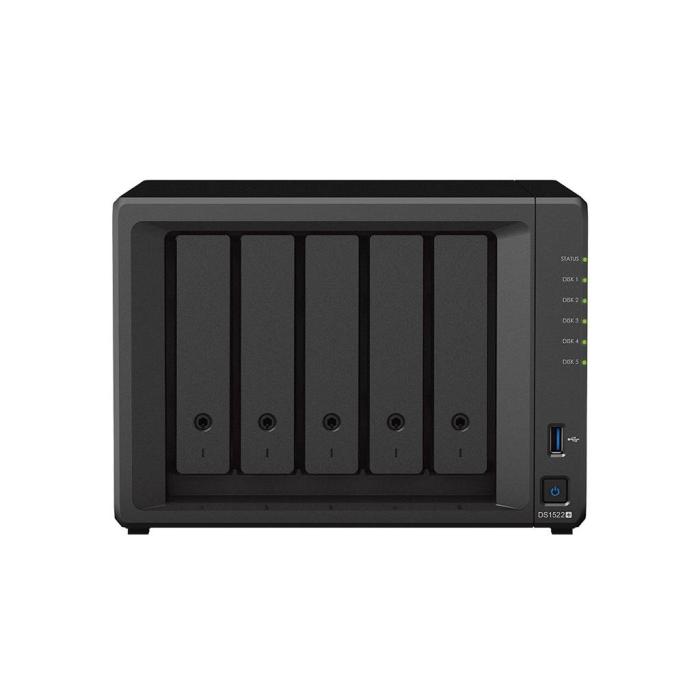

The Synology DiskStation DS1522+ NAS/storage server in tower form integrates an AMD Embedded R-Series R1600 processor with two cores and a frequency of 2.6 GHz, reaching 3.1 GHz in turbo mode, accompanied by 8 GB of DDR4 memory. This model without internal drives offers five bays compatible with 2.5 or 3.5-inch HDDs and SSDs, plus two additional M.2 slots, and supports RAID levels 0, 1, 5, 6, 10 and JBOD with online migration and expansion. SATA II and SATA III connectivity covers the drives, while the file system supports BTRFS, ext3, ext4, NTFS, FAT, HFS+ and exFAT for flexible management.
Specifications
Storage
- Supported storage drive interfaces: Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5, M.2
- Number of M.2 (M & B) slots: 2
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Online RAID migration: Yes
- Online RAID expansion: Yes
- Hot-swap drive bays: Yes
- Supported file systems: BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 5
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: AMD
- Processor family: AMD Embedded R-Series SoC
- Processor model: R1600
- Processor frequency: 2.6 GHz
- Processor boost frequency: 3.1 GHz
- Processor cores: 2
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4
- Maximum RAM supported: 32 GB
- Memory slots: 2
- Memory form factor: SO-DIMM
- ECC: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Ethernet LAN data rate supported (max): 10000 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
- Link aggregation: Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- eSATA ports quantity: 2
- Ethernet LAN (RJ-45) ports: 4
Design
- Chassis type: Tower
- Cooling type: Active
- Product colour: Black
- Number of fans: 2 fan(s)
- Fan diameter: 9.2 cm
- Drive bay locking: Yes
- LED indicators: Yes
- Built-in display: No
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Performance
- Type: NAS
- Device class: Home & Home Office
- Backup function: Yes
- Backup features: Cloud, iSCSI LUN
- Multilingual support: Yes
- Number of users: 2048 user(s)
- Noise level: 22.9 dB
- Video input channels: 2 channels
- Card reader integrated: No
- Snapshot: Yes
- Management protocols: SNMP
- Web-based management: Yes
- Security algorithms: HTTPS
- Access Control List (ACL): Yes
- Reset button: Yes
- On/off switch: Yes
- Built-in UPnP AV media server: Yes
- Browser supported: Google Chrome, Firefox, Microsoft Edge, Safari
- Hot spare: Yes
Software
- Operating system installed: DiskStation Manager
- Operating system version: 7.1
- Windows operating systems supported: Yes
Power
- Power supply location: External
- Power supply unit (PSU) capacity: 120 W
- Number of power supply units: 1
- Redundant power supply (RPS) support: No
- Power consumption (typical): 52.06 W
- Power consumption (HDD standby): 16.71 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 230 mm
- Depth: 223 mm
- Height: 166 mm
- Weight: 2.7 kg
Packaging content
- External power adapter: Yes
- Cables included: AC, LAN (RJ-45)
- Power cables quantity: 1
- Remote control included: No
Sustainability
- Sustainability compliance: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 60 °C
Logistics data
- Harmonized System (HS) code: 84714100
Other features
- Compliance certificates: RoHS
- Certification: FCC BSMI VCCI RCM UKCA EAC CCC KC
