Description

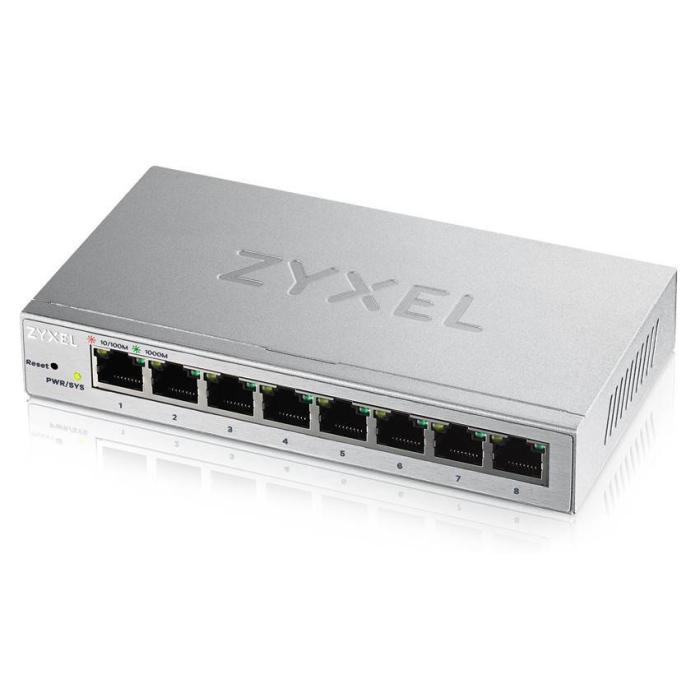

The Zyxel GS1200-8 managed switch in silver provides eight Gigabit Ethernet (10/100/1000) RJ-45 ports for setting up a home or small office network with demanding traffic. It is managed from the browser, so you can configure VLAN, QoS quality of service and storm control without additional software. It includes flow control, link aggregation and port mirroring, as well as auto MDI/MDI-X and full duplex transmission to avoid bottlenecks. It supports the IEEE 802.1Q, 802.1p, 802.3ab, 802.3az, 802.3u, 802.3x and 802.3z standards, and its MAC address table supports up to 4000 entries. It also handles Jumbo Frames and has a packet buffer memory of 0.15 MB. Power is supplied through its DC input jack. The chassis measures 155 x 26 x 85 mm (width x height x depth) and weighs 325 g, so it sits easily on any desk or shelf.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 0.15 MB
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: IGMPv1,IGMPv2,IGMPv3
Design
- Rack mounting: No
- Product colour: Silver
- LED indicators: Power
- Safety: CE-LVD, BSMI
- Electromagnetic compatibility: CE, FCC, BSMI, Class B
Performance
- Firmware upgradeable: Yes
Power
- DC input voltage: 5 V
- Input current: 1 A
- Power consumption (max): 3.31 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 155 mm
- Depth: 85 mm
- Height: 26 mm
- Weight: 325 g
Packaging content
- Quick start guide: Yes
Packaging data
- AC adapter included: Yes
- Package type: Box
- Rubber feet: Yes
- Package width: 161 mm
- Package depth: 90 mm
- Package height: 95 mm
- Package weight: 497 g
Logistics data
- Harmonized System (HS) code: 85176990
