Description

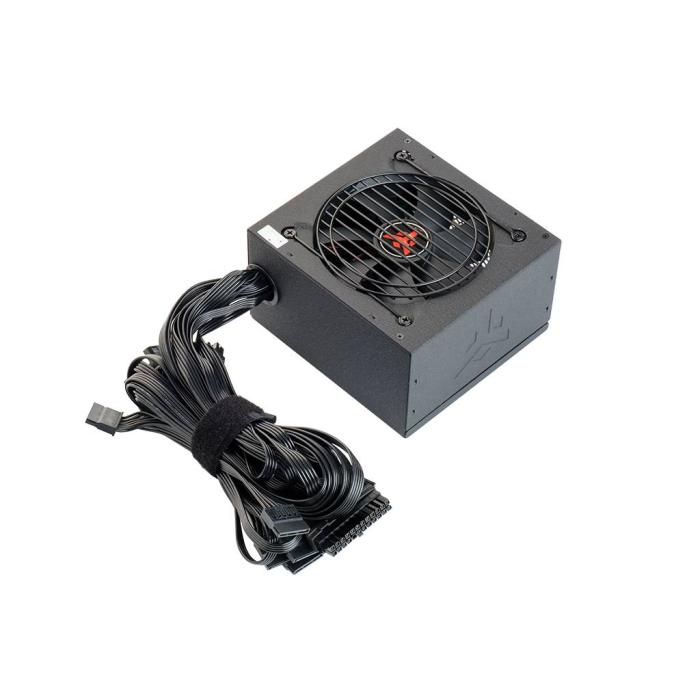

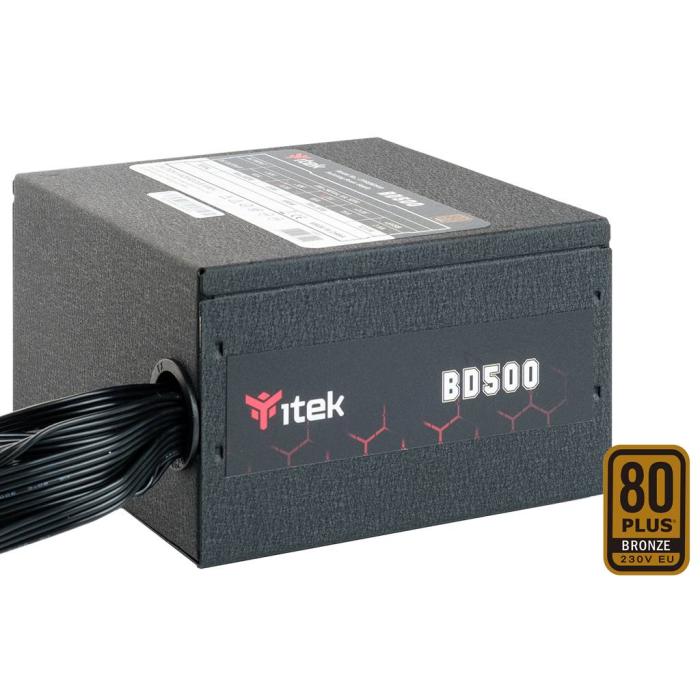

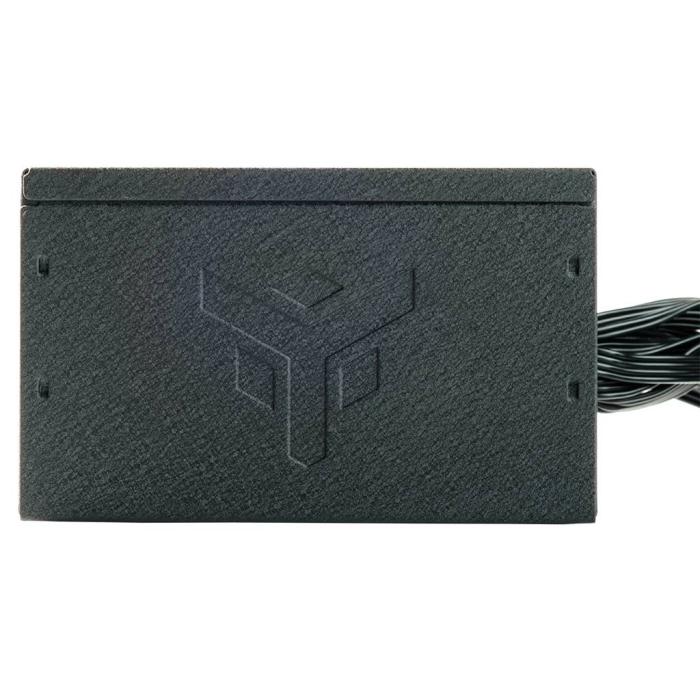

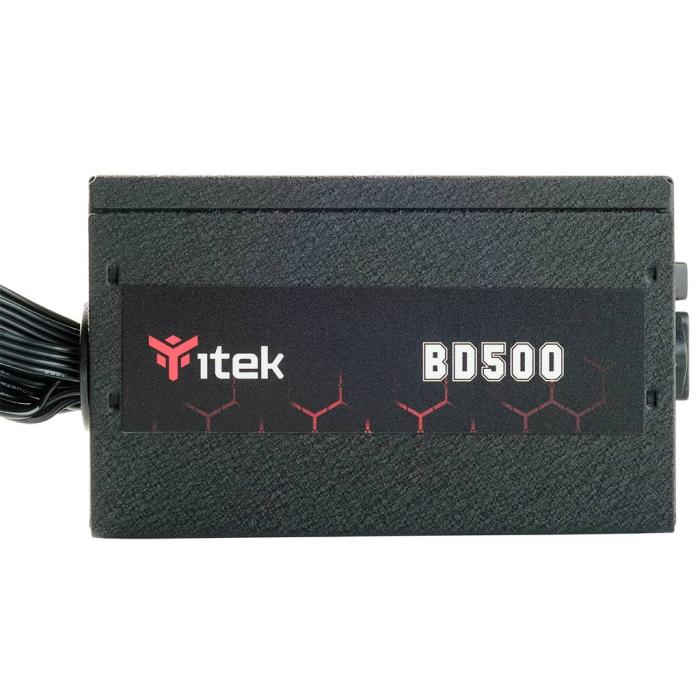

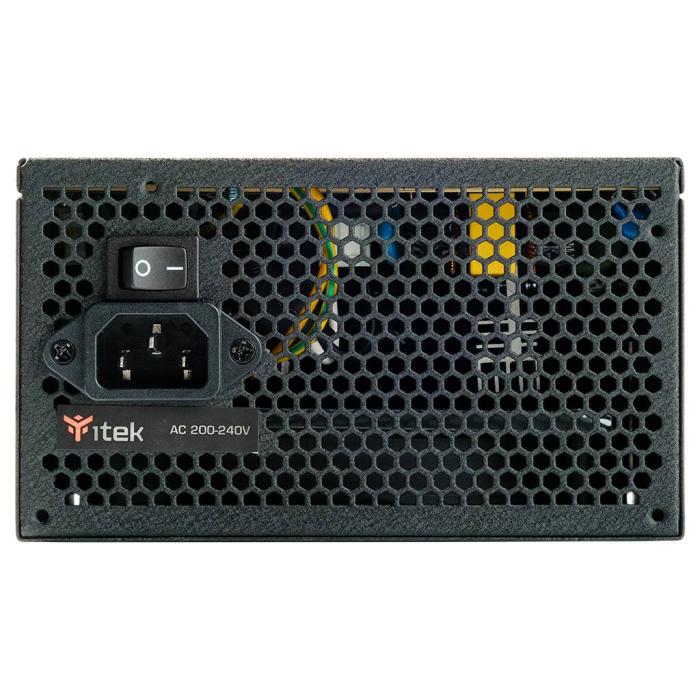

The itek BD500 is a 500 W ATX power supply unit with 80 PLUS Bronze certification and active power factor correction, designed for PC builds. Its black colour and dimensions of 160 x 86 x 150 mm (width x height x depth) fit standard ATX cases, and the unit weighs 2.11 kg. It features a 12 cm fan with active cooling that helps maintain the operating temperature. The non-modular cabling includes a 24-pin ATX connector for the motherboard, seven SATA connectors, two 4-pin Molex peripheral power connectors and two 6+2 pin PCI Express connectors. It supports an AC input voltage of 230 V and complies with the ATX 2.31 version. Its protection system covers overcurrent, overvoltage, overpower, short circuit and undervoltage. The declared mean time between failures is 100000 h.
Specifications
Power
- Total power: 500 W
- AC input voltage: 230 V
- Power Factor Correction (PFC) type: Active
- Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 7
- Peripheral (Molex) power connectors (4-pin): 2
- PCI Express power connectors (6+2 pin): 2
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Weight & dimensions
- Width: 160 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 2.11 kg
Packaging data
- Package weight: 2.7 kg
