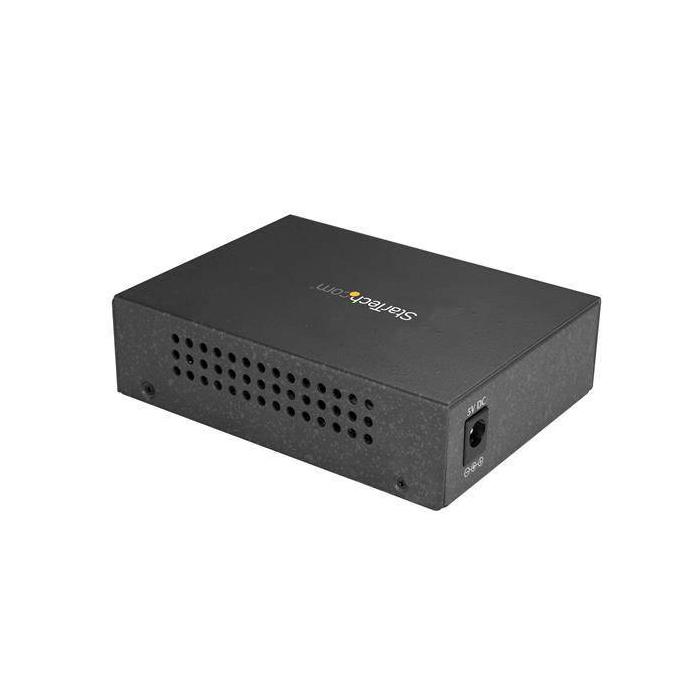

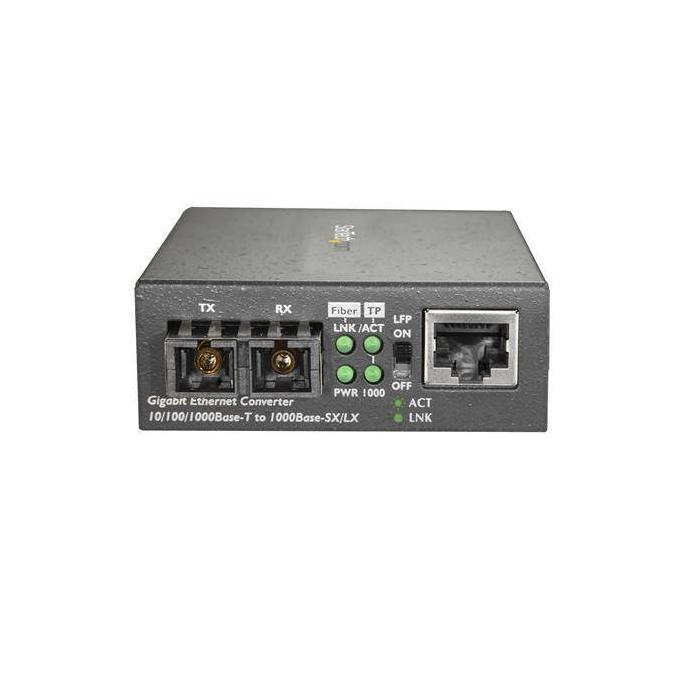

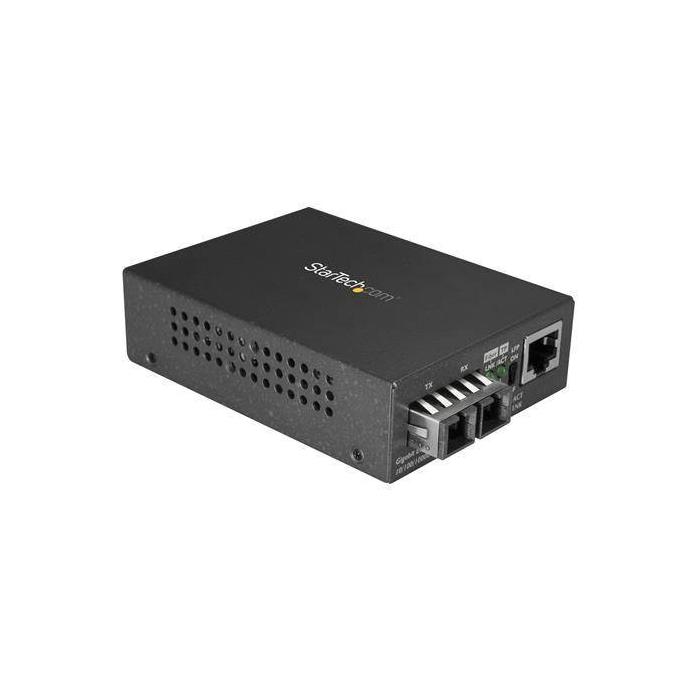

StarTech.com Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex
More info
Brand: STARTECH.COM
80.00 €
66.12 €
without VAT
Get it
on the
August 13
/
August 17
SKU:
80318
PRC:
200527
EAN:
65030878227
PN:
MCMGBSCMM055
Description
StarTech.com Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex, 1000 Mbit/s, 100Base-TX, 1000Base-T, 1000Base-SX, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 100Base-TX, 1000Base-T
- Converter output interface: 1000Base-SX
- Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Store-and-forward: Yes
- Duplex system: Full
Performance
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Wavelength-division multiplexing (WDM): No
- Fiber mode structure: Multi-mode
- Mean time between failures (MTBF): 50000 h
Features
- Internal: No
- LED indicators: Activity, Link, Power
- Product colour: Black
- Housing material: Steel
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
Power
- Input voltage: 100 - 240 V
- Input current: 0.5 A
- Output voltage: 5 V
- Output current: 2.6 A
- Power consumption (typical): 5 W
- External power adapter: Yes
- Power plug type: Type N
Weight & dimensions
- Width: 97 mm
- Depth: 70 mm
- Height: 26 mm
- Weight: 200 g
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
Packaging content
- AC adapter included: Yes
- Quick installation guide: Yes
Packaging data
- Package width: 280 mm
- Package depth: 133 mm
- Package height: 66 mm
- Package weight: 564 g
Certificates
- Compliance certificates: RoHS
- Certification: CE, FCC, REACH
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 595 mm
- Master (outer) case length: 375 mm
- Master (outer) case height: 320 mm
- Products per master (outer) case: 20 pc(s)
