Description
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 1
- SFP module slots quantity: 1
Network
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Full duplex: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 12 Gbit/s
- Throughput: 8.9 Mpps
- MAC address table: 1000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP30
- Wall mountable: Yes

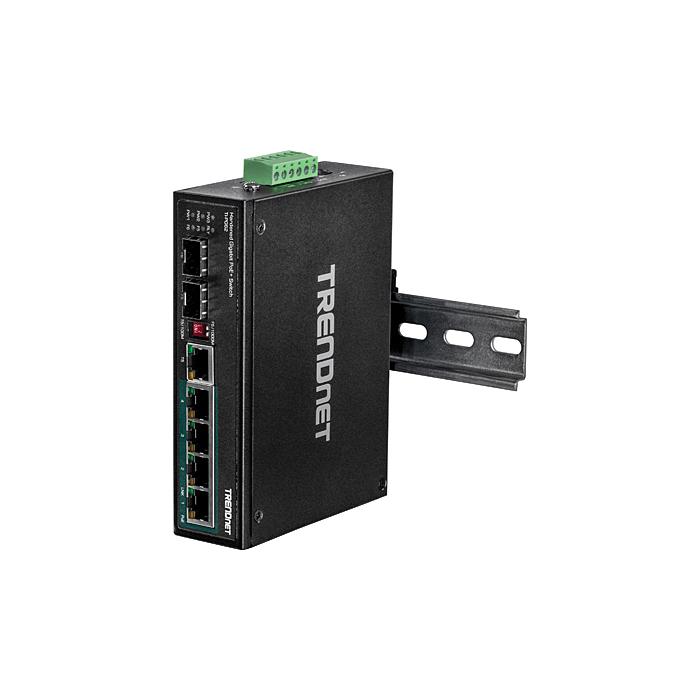

- DIN rail mounting: Yes
Performance
- Buffer size: 1024 KB
- Mean time between failures (MTBF): 460304 h
Power
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2 A
- Input voltage: 48 - 56 V
- Output voltage: 48 V
- Output current: 3.34 A
- Power consumption (max): 5.76 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 120 W
Other features

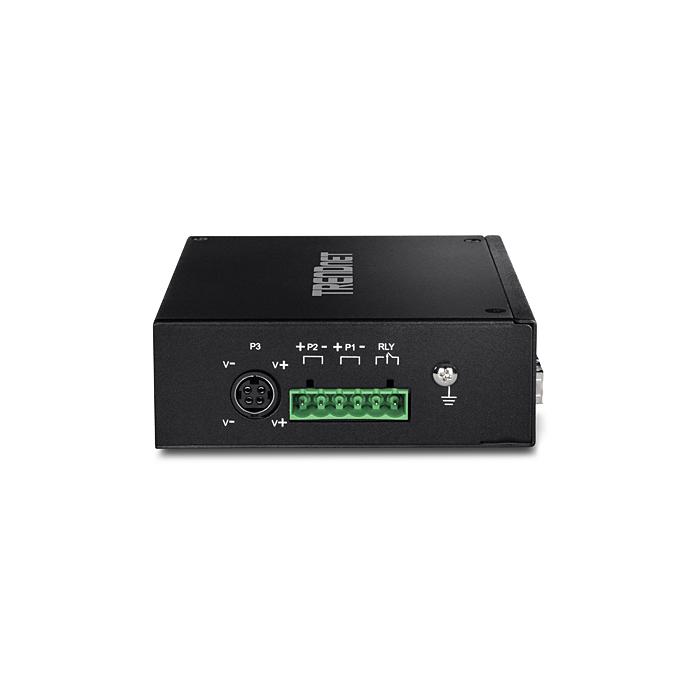

- Terminal block port: Yes
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 143 mm
- Depth: 105 mm
- Height: 36 mm
- Weight: 500 g
Packaging content
- Quick start guide: Yes
Packaging data

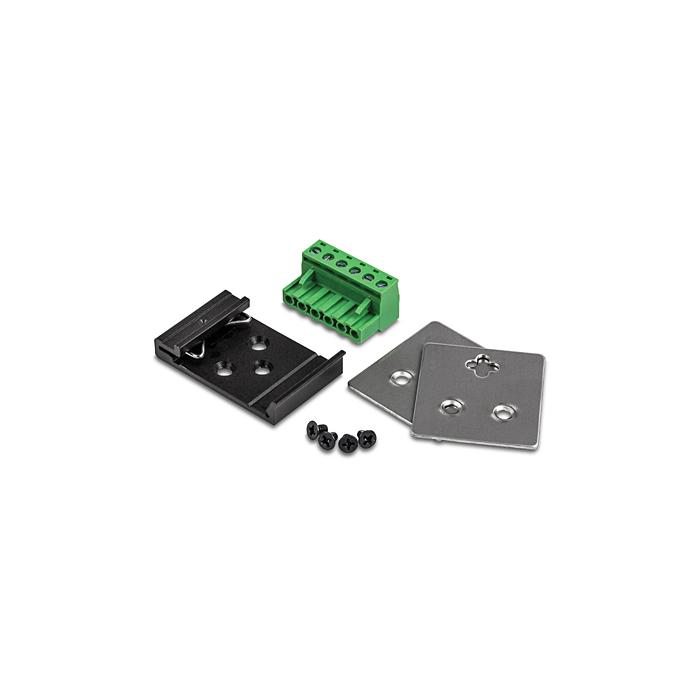

- Wall mounting kit: Yes
- Terminal block included: Yes
Certificates
- Certification: CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
Logistics data
- Harmonized System (HS) code: 85176990
