Description

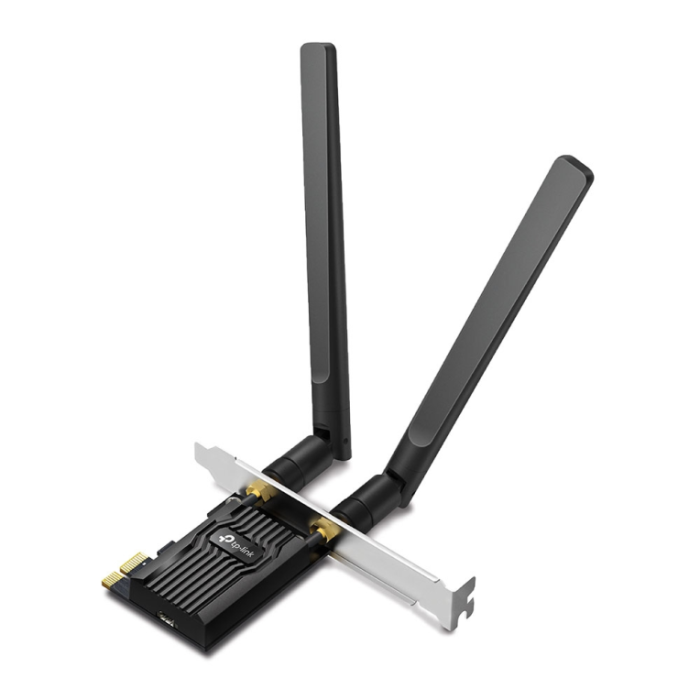

The TP-Link Archer TX20E network card in black is installed inside the computer via a PCI Express host interface and adds Wi-Fi and Bluetooth wireless connectivity. It incorporates the Wi-Fi 6 (802.11ax) standard with dual band 2.4 GHz and 5 GHz, and reaches a maximum data transfer speed of 1800 Mbit/s, with supported speeds of 11, 54, 300, 574, 867 and 1200 Mbit/s. It is also compatible with the IEEE 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac standards, and with Bluetooth version 5.2. As for security, it supports 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK and WPA3, with 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK and OFDM modulations. Its antenna is external and the transmission power reaches 27 dbm according to FCC. Its dimensions are 120.8 x 20.9 x 78.5 mm (width x height x depth), a compact format for integrating it inside the tower.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: PCI Express
- Interface: WLAN / Bluetooth
Network
- Maximum data transfer rate: 1800 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- WLAN data transfer rates supported: 11, 54, 300, 574, 867, 1200 Mbit/s
- Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM
- Security algorithms: 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
- Bluetooth: Yes
- Bluetooth version: 5.2
Design
- Component for: PC/Server
- Product colour: Black
- Internal: Yes
- Antenna: Yes
- Antenna design: External
- Transmitting power (CE): 23 dBm
- Transmitting power (FCC): 27 dBm
- Plug and Play: Yes
- Operating modes: Infrastructure mode
System requirements
- Windows operating systems supported: Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterpr
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 120.8 mm
- Depth: 78.5 mm
- Height: 20.9 mm
Packaging data
- Package width: 201.5 mm
- Package depth: 152.5 mm
- Package height: 41.5 mm
- Package weight: 220 g
Packaging content
- Mounting brackets included: Yes
- Resource CD: Yes
- Bluetooth header cable: Yes
- Quick installation guide: Yes
Technical details
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
