Description

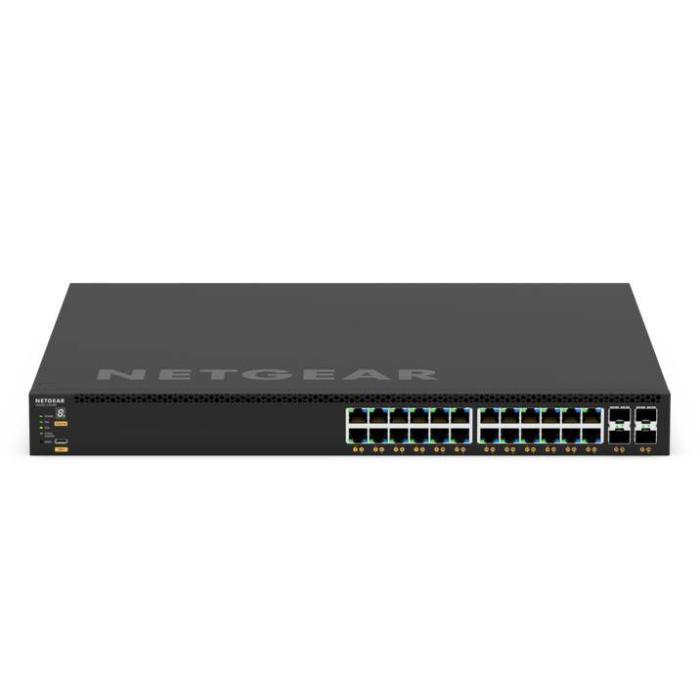

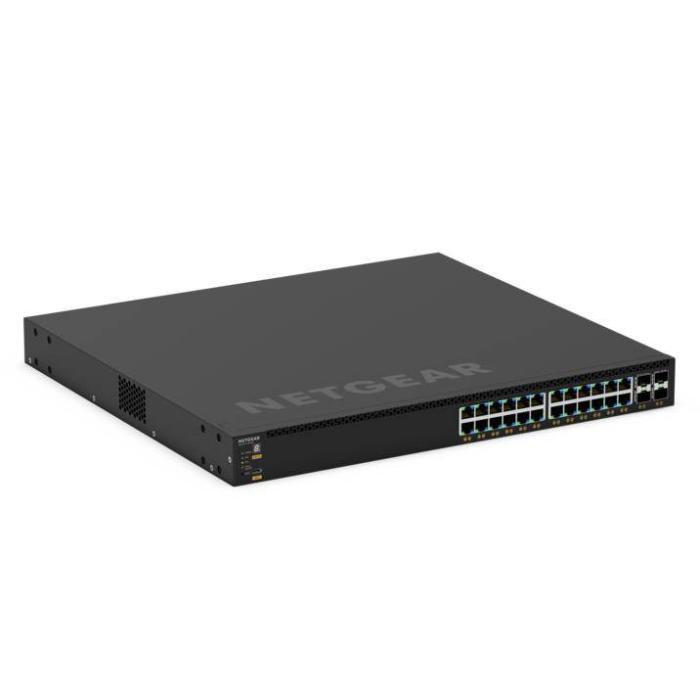

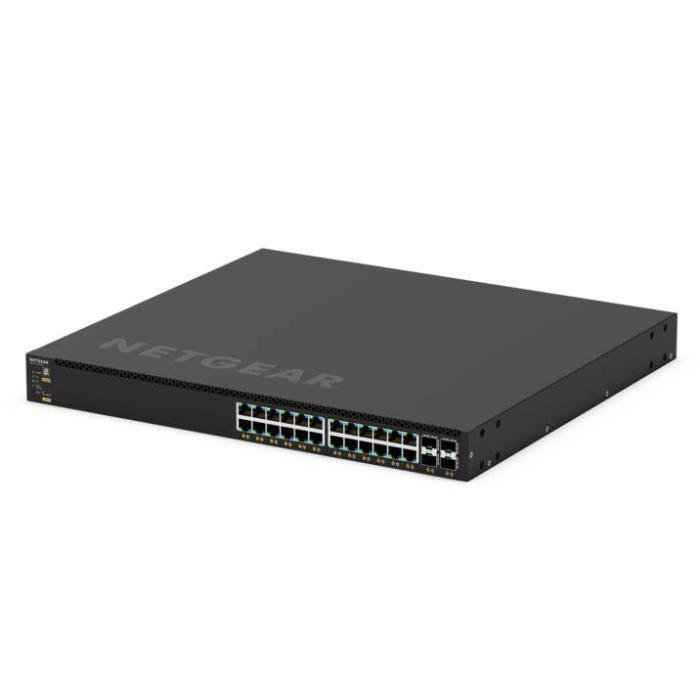

The NETGEAR GSM4328-100AJS managed switch is an L3 layer device with 24 Gigabit Ethernet RJ-45 ports and 4 SFP+ modules installed, designed to serve demanding networks. It offers 10G support and allows up to 4093 VLANs to be configured, with web-based management, traffic classification and quality of service (QoS) to prioritise critical traffic flows. Its switching capacity reaches 128 Gbit/s and its throughput is rated at 95.23 Mpps, with a MAC address table of 16000 entries and 16 MB of packet buffer memory. On the security side it includes DHCP functions such as server, snooping and DHCPv6 snooping. The chassis, in 1U format and black, measures 440 x 43.2 x 400 mm (width x height x depth) and weighs 6.41 kg, so it is advisable to allow for a rack space with sufficient ventilation before mounting it.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Traffic shaping: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Installed SFP+ modules quantity: 4
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3a
- 10G support: Yes
- VLAN support: Yes
- Number of VLANs: 4093
Data transmission
- Switching capacity: 128 Gbit/s
- Throughput: 95.23 Mpps
- MAC address table: 16000 entries
- Packet buffer memory: 16 MB
Security
- DHCP features: DHCP server, DHCP snooping, DHCPv6 snooping
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
Performance
- Noise level: 52 dB
Power
- Power source: AC
- Power supply included: Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 24
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 648 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -20 - 70 °C
Weight & dimensions
- Width: 440 mm
- Depth: 400 mm
- Height: 43.2 mm
- Weight: 6.41 kg
