Description

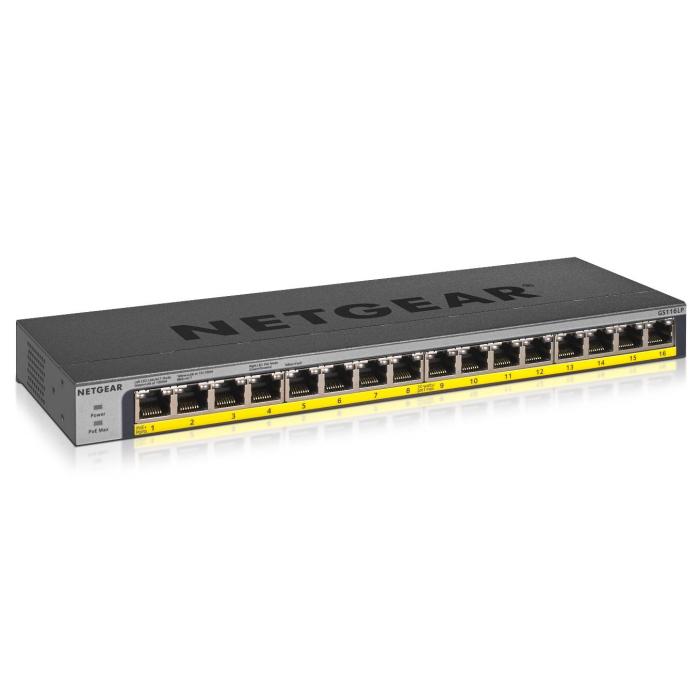

The NETGEAR GS116LP switch is an unmanaged black device that expands the network with 16 Gigabit Ethernet RJ-45 ports, ready for 10/100/1000 connections. It features Power over Ethernet power supply compliant with the IEEE 802.3af and IEEE 802.3at standards, so it can power cameras or access points from the switch itself, with a DC/PoE source and a DC input voltage of 54 V. It supports quality of service and flow control according to IEEE 802.1p and IEEE 802.3x, as well as the IEEE 802.3az energy efficiency standard. Its switching capacity reaches 32 Gbit/s, it manages a MAC address table of 4000 entries and supports Jumbo Frames, with a buffer of 1000 KB and a mean time between failures of 2088514 hours. It features LED indicators, rack mounting and a fan for cooling. Its dimensions are 286 x 27 x 102 mm (width x height x depth) and its weight is 880 g.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 16
Network
- Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
- 10G support: No
- Flow control support: Yes
Data transmission
- Switching capacity: 32 Gbit/s
- MAC address table: 4000 entries
- Jumbo frames support: Yes
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
- Number of fans: 1 fan(s)
Performance
- Buffer size: 1000 KB
- Mean time between failures (MTBF): 2088514 h
Power
- Power source: DC/PoE
- DC input voltage: 54 V
- Input current: 1.66 A
- Power consumption (typical): 90 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 16
- Total Power over Ethernet (PoE) budget: 76 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 270.18 BTU/h
Weight & dimensions
- Width: 286 mm
- Depth: 102 mm
- Height: 27 mm
- Weight: 880 g
Certificates
- Certification: CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1
Logistics data
- Harmonized System (HS) code: 85176990
