Description

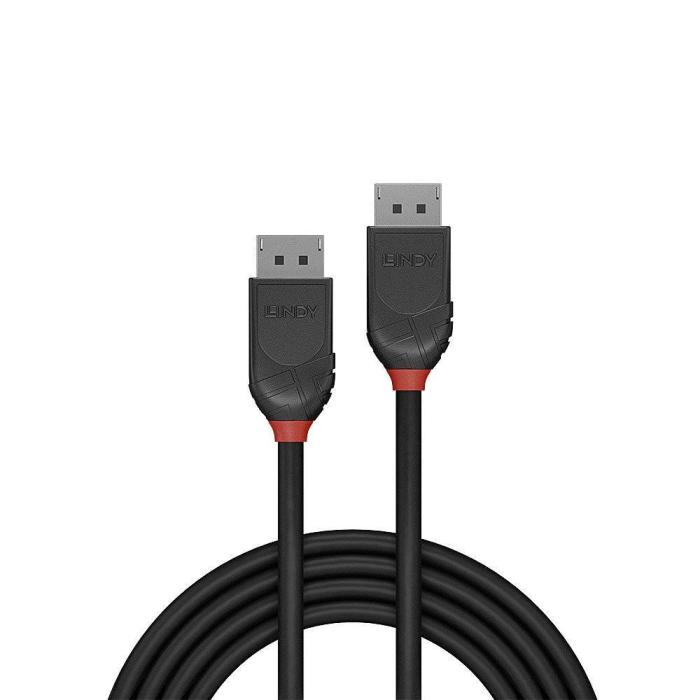

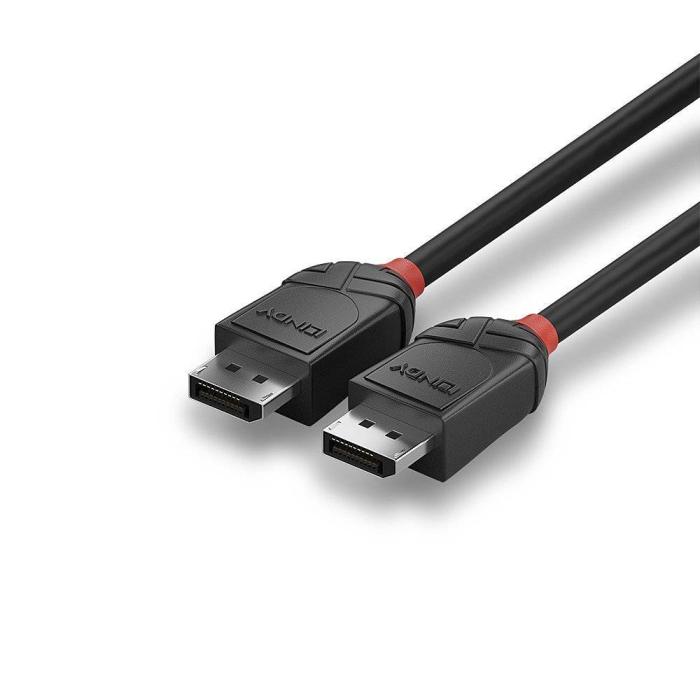

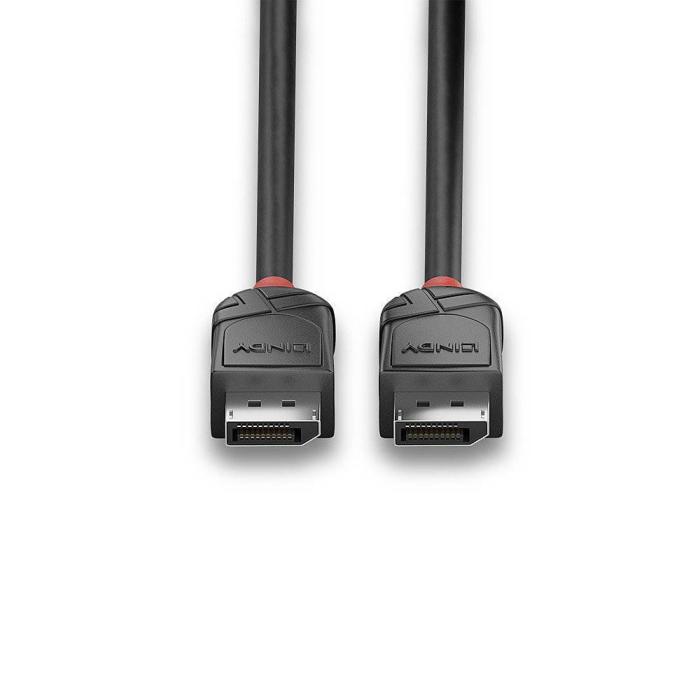

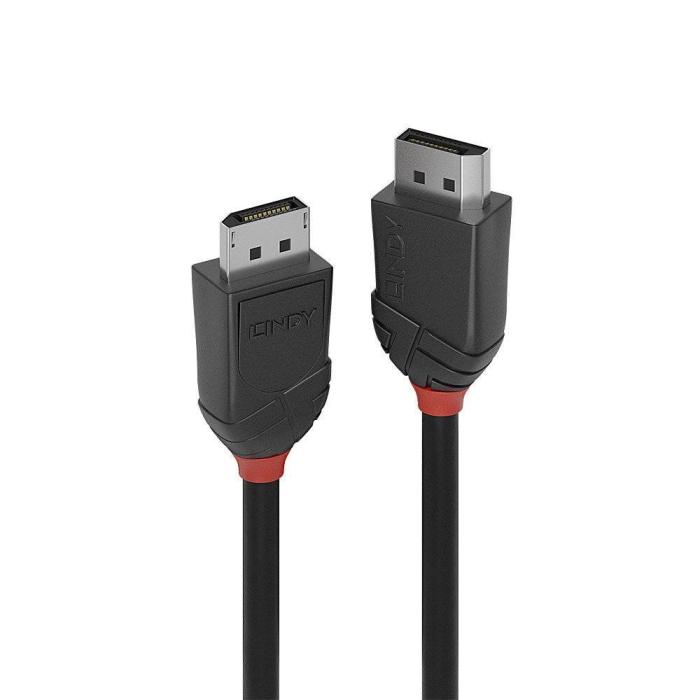

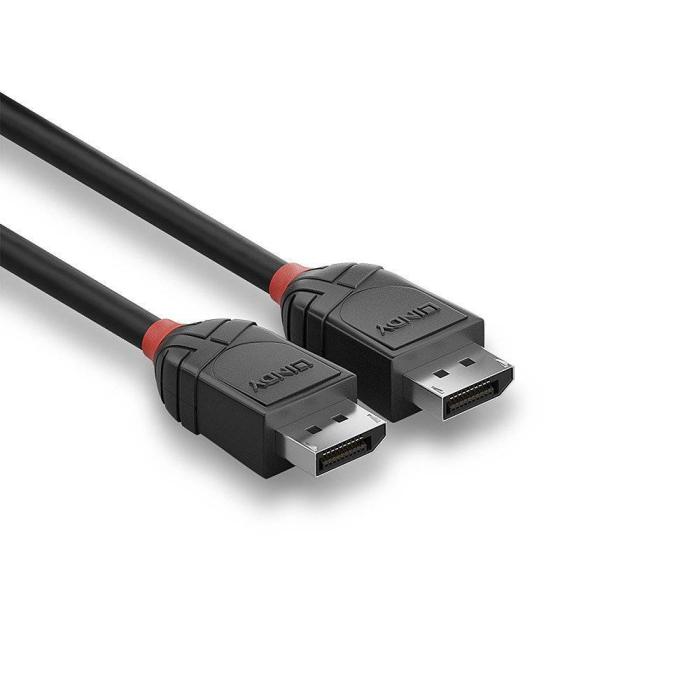

Connect your equipment with the LINDY DisplayPort cable, a video solution in black with a cable length of 3 m. This round DisplayPort 1.2 cable offers a data transfer rate of 21.6 Gbit/s and reaches a maximum resolution of 4096 x 2160 pixels at a refresh rate of 60 Hz. It supports 4:4:4 colour sampling, which is useful for reproducing sharp images on compatible displays. Its male connectors feature phosphor bronze contacts and a straight form factor at both ends, making connection easier in tight spaces. Copper shielding protects the signal against external interference. The PVC jacket provides resistance to daily use, while the cable's 30 AWG gauge helps maintain transmission quality over long runs. Nominal attenuation remains controlled across the different frequency ranges, from 300 kHz to 5.1 GHz.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- DisplayPort version: 1.2
- Maximum resolution: 4096 x 2160 pixels
- Supported graphics resolutions: 4096 x 2160
- Maximum refresh rate: 60 Hz
- Cable length: 3 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Black
- Cable material: Copper
- Cable shielding: Copper
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Acrylonitrile butadiene styrene (ABS)
- AWG wire size: 30
- Data transfer rate: 21.6 Gbit/s
- Contact material: Phosphor bronze
- Connector material: Nickel
- Plug and Play: Yes
- Colour sampling: 4:4:4
- Cable type: Round cable
- Nominal attenuation: 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Certification: RoHS, REACH, UL
Weight & dimensions
- Cable diameter: 6 mm
- Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
- Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
- Bend radius (min): 4.8 cm
Packaging data
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
