Description

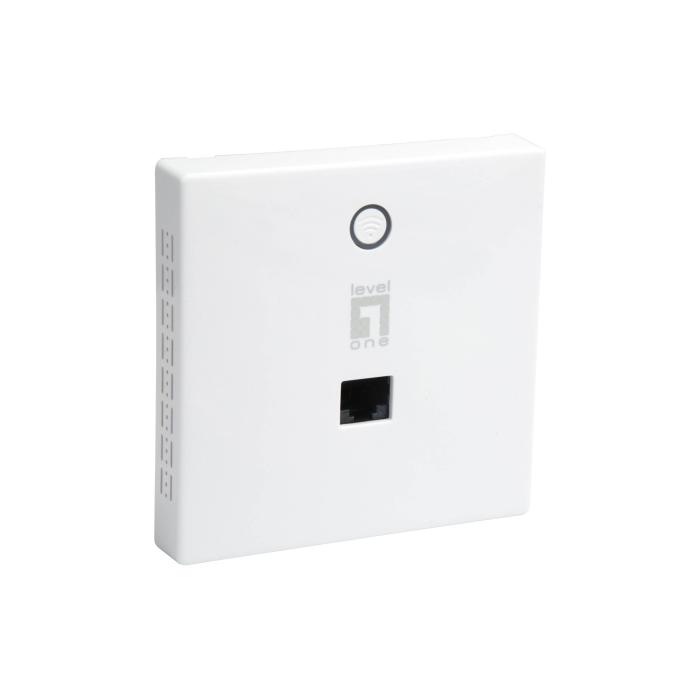

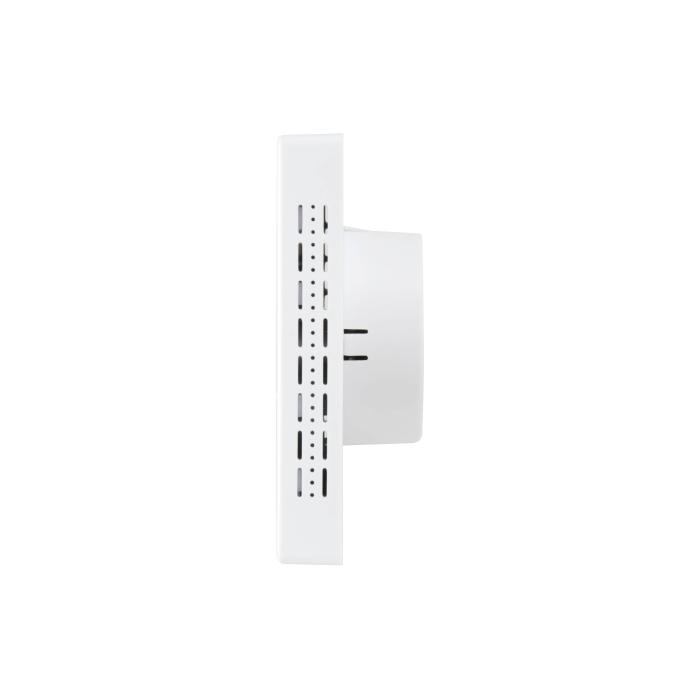

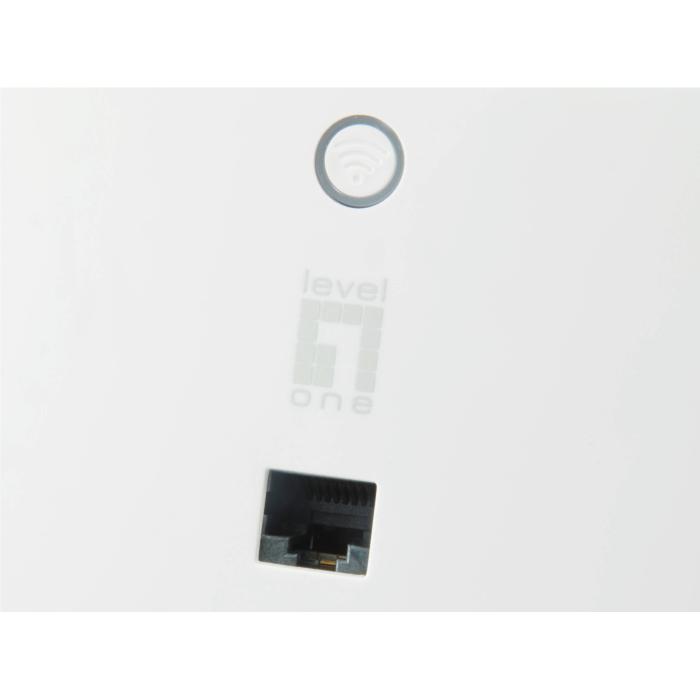

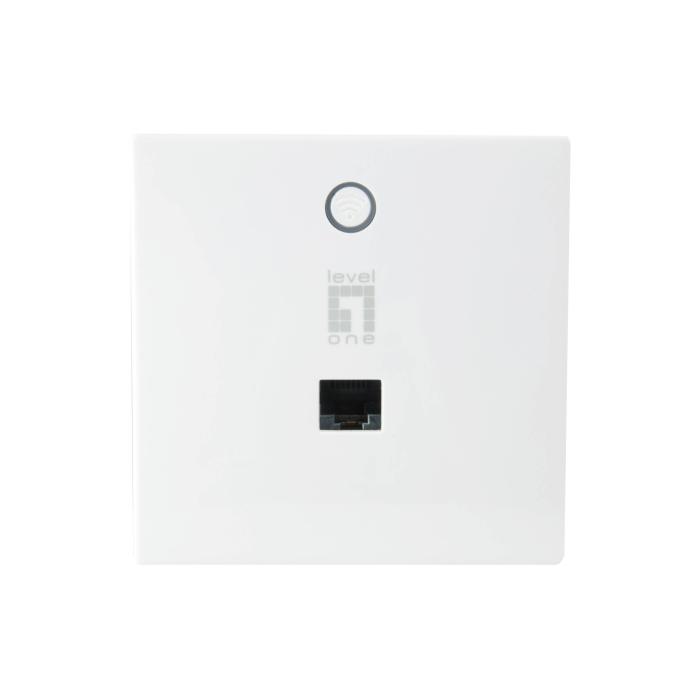

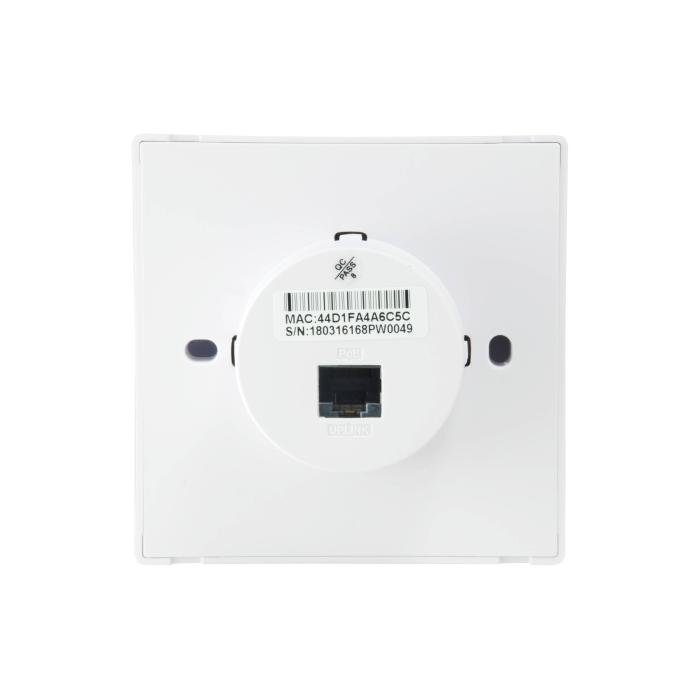

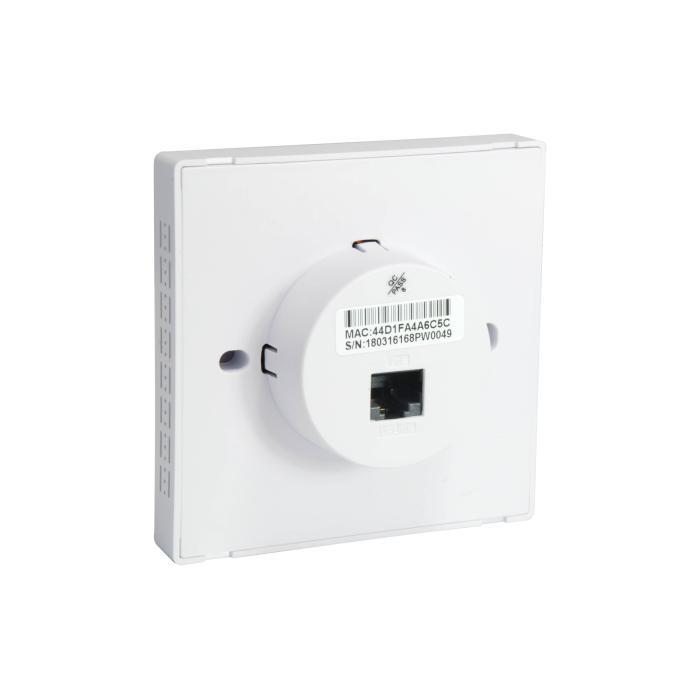

The LevelOne WAP-8221 wireless access point, in white and weighing 104 g, is a compact 86 x 86 x 31 mm solution designed to extend network coverage in home or office environments. It offers a maximum data transfer rate of 750 Mbit/s and operates on the 2.4 GHz and 5 GHz bands, with a Wi-Fi speed of up to 433 Mbit/s. It includes Ethernet LAN with a data transfer rate of 10, 100 Mbit/s and supports up to 128 simultaneous users. You can use it in different operating modes, such as Access Point, Gateway, Repeater or WISP, and manage it via web-based administration, with upgradable firmware. As for security, it supports algorithms such as 64 and 128-bit WEP, AES, TKIP, WPA, WPA-PSK and WPA2, as well as up to 8 SSIDs with broadcast enabled or disabled. It also includes QoS support, flow control and Wi-Fi Multimedia, with a managed switch type.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 750 Mbit/s
- Wi-Fi data rate (max): 433 Mbit/s
- Ethernet LAN data rates: 10, 100 Mbit/s
- Frequency band: 2.4 ~ 2.483, 5.180 ~ 5.825 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEE
- Number of users: 128 user(s)
- Modulation: 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
- Wi-Fi Multimedia (WMM)/(WME): Yes
- Operating modes: Access Point (AP),Gateway,Repeater,WISP
- Flow control support: Yes
- Quality of Service (QoS) support: Yes
Security
- Security algorithms: 64-bit WEP, 128-bit WEP, AES, TKIP, WPA, WPA-PSK, WPA2
- Service Set Identifier (SSID) features: SSID broadcast on/off
- Number of SSID supported: 8
Management features
- Web-based management: Yes
- Switch type: Managed
- Firmware upgradeable: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- WAN connection: Ethernet (RJ-45)
Power
- Power over Ethernet (PoE): Yes
- Power consumption (typical): 10 W
Design
- Placement: Wall
- Product colour: White
- Reset button: Yes
- LED indicators: Power, Status
- Internal: No
Antenna
- Antenna features: Integrated antenna
- Antennas quantity: 3
- Antenna gain level (max): 2 dBi
Certificates
- Certification: CE
Weight & dimensions
- Width: 86 mm
- Depth: 31 mm
- Height: 86 mm
- Weight: 104 g
Packaging data
- CD manual: Yes
- CD quick installation guide: Yes
- Package width: 110 mm
- Package depth: 65 mm
- Package height: 120 mm
- Package weight: 202 g
- Package type: Box
Packaging content
- Mounting kit: Yes
- Quick start guide: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
Logistics data
- Harmonized System (HS) code: 85176990
- Country of origin: China
- Master (outer) case width: 340 mm
- Master (outer) case length: 580 mm
- Master (outer) case height: 515 mm
- Master (outer) case gross weight: 21.3 kg
- Products per master (outer) case: 100 pc(s)
