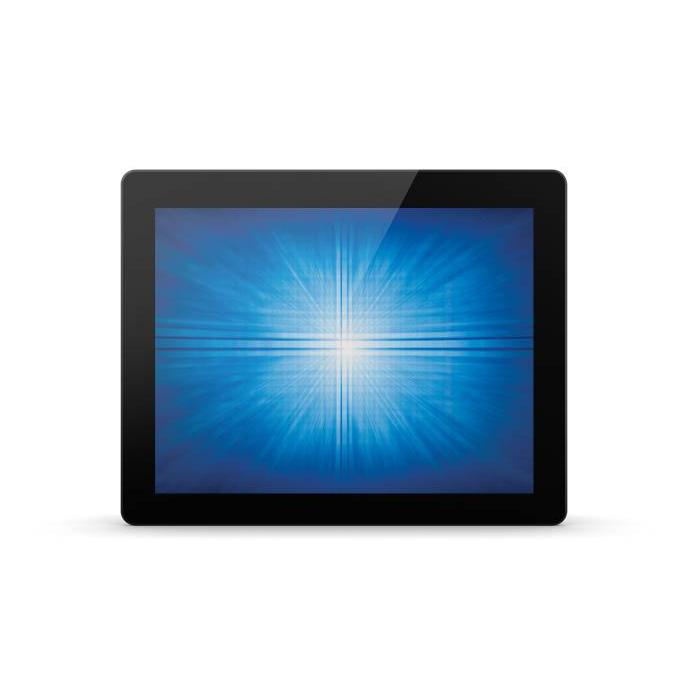

Elo Touch Solution 1590L 15" 1024 x 768pixels Single-touch Kiosk Black touch screen monitor
Elo Touch Solution 1590L, 38.1 cm (15"), 16 ms, 200 cd/m², 700:1, Projected capacitive system, 1024 x 768 pixels.
More infoBrand: ELO TOUCH SOLUTION
555.03 €Stock available: 0 units.
Unavailable
SKU:
78742
PRC:
154511
EAN:
815335025785
PN:
E326154
Description
The Elo Touch Solution 1590L touch screen monitor is a 38.1 cm (15 inch) LCD display with LED backlighting and a resolution of 1024 x 768 pixels, in 4:3 format and black. Its projected capacitive system touchscreen technology offers direct touch interaction on the panel, with a brightness of 200 cd/m² and a typical contrast ratio of 700:1. The visible screen area is 304.1 x 228.1 mm and the viewing angles reach 160° horizontally and 140° vertically. The horizontal digital frequency of 30 to 60 kHz and the vertical frequency of 50 to 75 Hz complete its display characteristics. Its dimensions are 358 x 284.9 x 35.6 mm (width x height x depth) and its weight is 2.9 kg, making it suitable for installations where space and stability are relevant.
Specifications
Display
- Display diagonal: 38.1 cm (15")
- Display resolution: 1024 x 768 pixels
- Display type: LCD
- Display viewable area (HxV): 304.1 x 228.1 mm
- Aspect ratio: 4:3
- Viewing angle, horizontal: 160°
- Backlight type: LED
- Full HD: No
- LED backlight: Yes
- Viewing angle, vertical: 140°
- HD-Ready: No
- Digital vertical frequency: 50 - 75 Hz
- Response time: 16 ms
- Display brightness: 200 cd/m²
- Contrast ratio (typical): 700:1
- Horizontal scan range: 30 - 60 kHz
- Touchscreen technology: Projected capacitive system
- Digital horizontal frequency: 30 - 60 kHz
- Vertical scan range: 50 - 75 Hz
Design
- Colour of product: Black
Performance
- Touch technology: Single-touch
- Touchscreen type: Kiosk
- Built-in camera: No
- On Screen Display (OSD) languages: CHI (SIMPL), CHI (TR), German, English, Spanish, French, Italian, JPN
- Mean time between failures (MTBF): 50000 h
Ports & interfaces
- USB 2.0 ports quantity: 1
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
Ergonomics
- VESA mounting: Yes
- Wall mountable: Yes
- VESA mounting interfaces: 75 x 75,100 x 100 mm
Power
- Power supply type: DC
- Power consumption (typical): 12.5 W
- Power consumption (off): 0.5 W
- AC adapter output voltage: 12 V
Operational conditions
- Storage relative humidity (H-H): 10 - 95%
- Operating relative humidity (H-H): 20 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 0 - 40 °C
Certificates
- RoHS compliance: Yes
Weight & dimensions
- Width: 358 mm
- Height: 284.9 mm
- Depth: 35.6 mm
- Weight: 2.9 kg
Packaging data
- Package width: 434 mm
- Package depth: 175 mm
- Package height: 375 mm
- Package weight: 4.7 kg
