Description

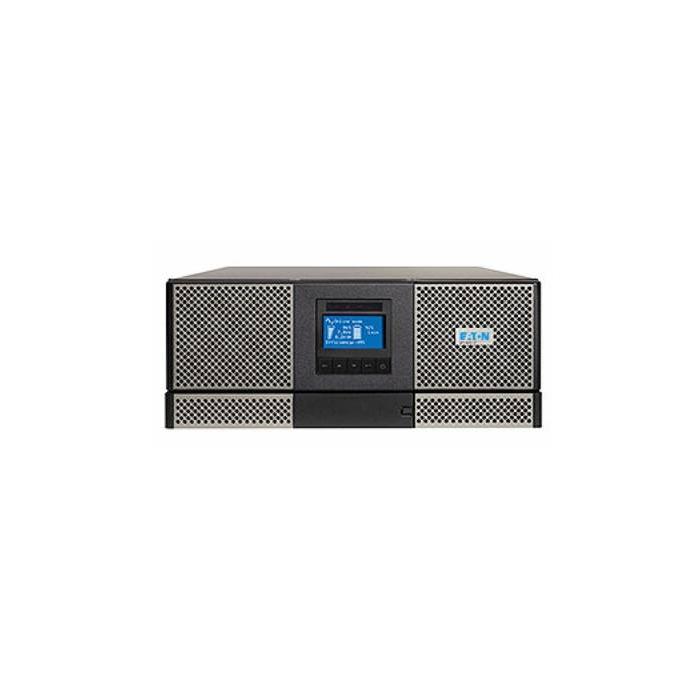

The Eaton 9PX6KSP UPS provides an output power of 4900 W (5.5 kVA) and features 8 AC outlets, available in a configuration that includes NEMA L14-30P input connectors and NEMA 5–20R, NEMA L14-30R, NEMA L6-30R, and terminal outputs. It accepts an operating input voltage between 176 V and 276 V, providing a regulated output of 120 V to 208 V with 1% accuracy and 2% total harmonic distortion. Its efficiency reaches 92.9% and the input power factor is 0.99, with a noise level of 55 dB. It includes overload protection, a USB 2.0 port, and operates at frequencies of 50/60 Hz, maintaining stable regulation for sensitive equipment.
Specifications
Features
- Output power capacity: 5.5 kVA
- Output power: 4900 W
- Input operation voltage (min): 176 V
- Input operation voltage (max): 276 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 120 V
- Output operation voltage (max): 208 V
- Output voltage regulation: 1%
- Efficiency: 92.9%
- Input power factor: 0.99
- Output power factor: 0.9
- Output voltage Total Harmonic Distortion (THD): 2%
- Noise level: 55 dB
- Surge protection: Yes
Ports & interfaces
- AC outlet types: NEMA 5–20R, NEMA L14-30R, NEMA L6-30R, Terminal
- Power plug: NEMA L14-30P
- AC outlets quantity: 8 AC outlet(s)
- USB 2.0 ports quantity: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Hot-swap battery: Yes
- Cold start: Yes
Design
- Form factor: Rackmount/Tower
- Cable length: 1.8 m
- Product colour: Black
- Display type: LED
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
Certificates
- Compliance certificates: RoHS
- Certification: IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A
Safety regulation & standards
- Safety: CE / cULus / NOM
Weight & dimensions
- Width: 440 mm
- Depth: 650 mm
- Height: 172.7 mm
- Weight: 71.3 kg
Other features
- Nominal input voltage: 120-208 V
