Description

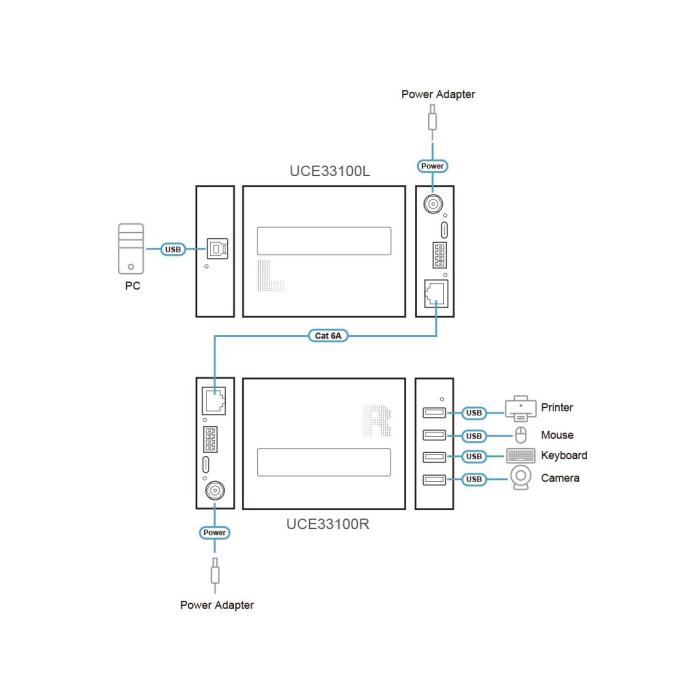

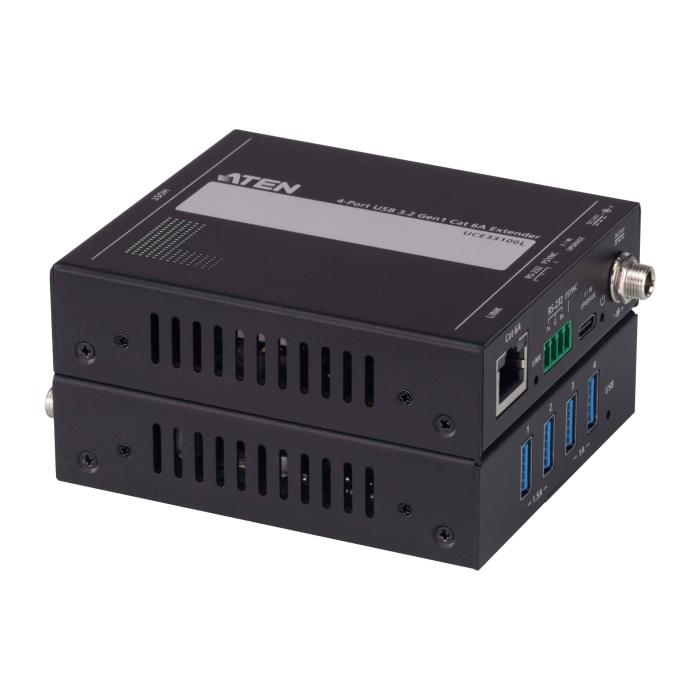

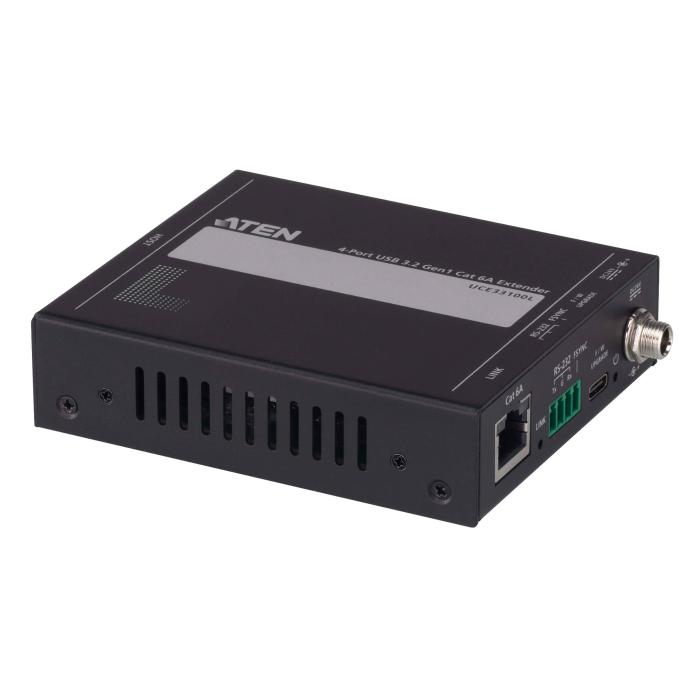

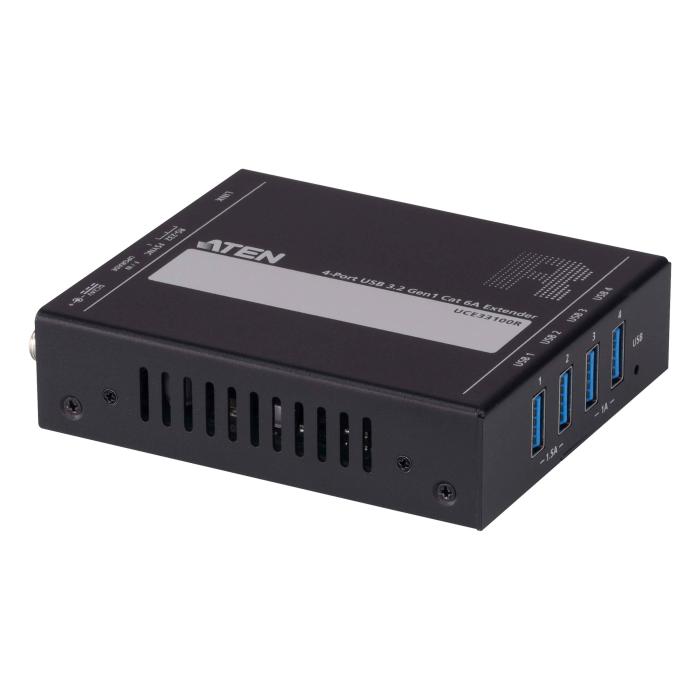

The ATEN UCE33100 network extender, in its black finish, combines a network transmitter and receiver into a single unit to extend the signal up to 100 metres via Cat6a cable. Its metal housing integrates two RJ-45 Ethernet ports, one USB Type C at each end and four USB 3.2 Gen 1 Type A ports, with LED indicators to monitor status. With a power consumption of 2.64 W, it operates in a temperature range of 0 to 40 °C and supports relative humidity between 20 and 90%, ideal for technical environments. This kit facilitates the connection of peripheral devices remotely without losing performance, maintaining a compact and robust installation.
Specifications
Performance
- Type: Network transmitter & receiver
- Maximum transfer distance: 100 m
- Cable types supported: Cat6a
Ports & interfaces

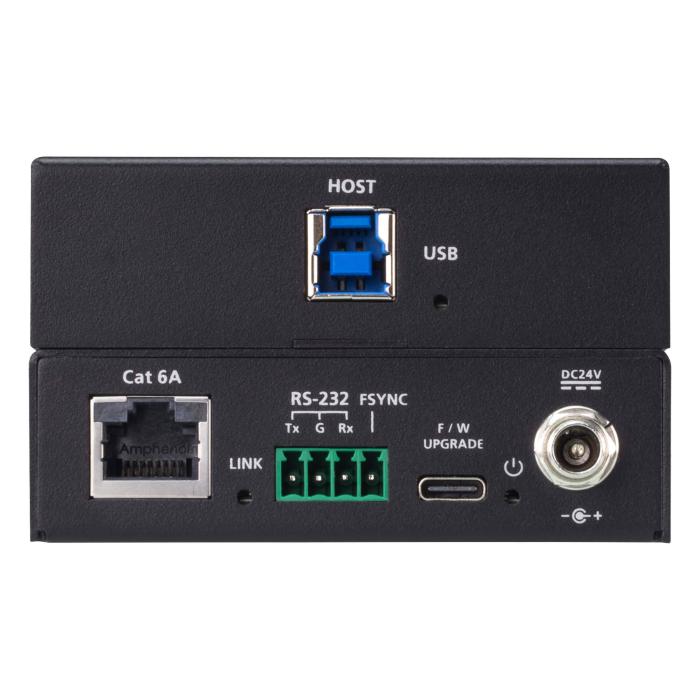

- Ethernet LAN (RJ-45) ports: 2
- RJ-45 ports quantity (transmitter): 1
- USB Type-C ports quantity (transmitter): 1
- USB Type-C ports quantity (receiver): 1

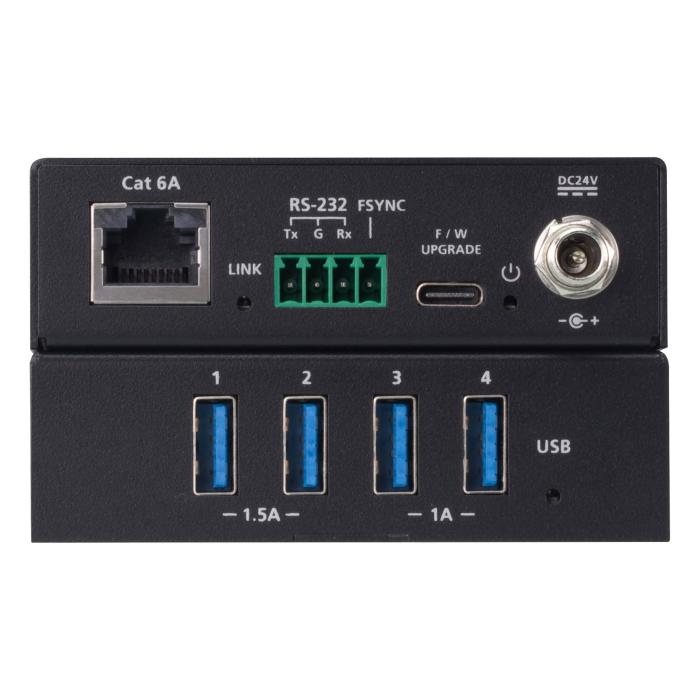

- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- DC-in jack: Yes
Design
- Product colour: Black

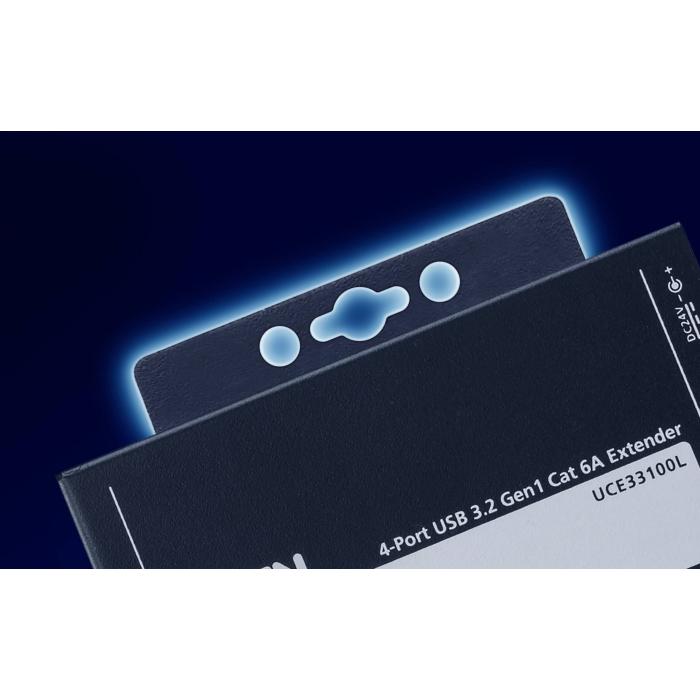

- Housing material: Metal
- LED indicators: Yes
Power
- Power consumption (typical): 2.64 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
- Width: 85 mm
- Depth: 107.5 mm
- Height: 25.5 mm
- Weight: 260 g
