Description
The APC BGM2200-GR UPS, in white, protects your equipment with a line-interactive topology and a power output of 1320 W. It features automatic voltage regulation (AVR) and an EMI/RFI noise filter, with a sine waveform and a response time of 8 ms against power outages. It supports an operating input voltage of between 168 V and 302 V, an input frequency of 50/60 Hz and a maximum current of 12 A, offering a stable output of up to 230 V. It has overload protection with an audible alarm, as well as alarms for switching to battery and low battery. With dimensions of 104.1 x 292.1 x 408.9 mm (width x height x depth) and a weight of 12.3 kg, it includes a 1.52 m cable for connection. Its noise level of 45 dB makes it suitable for work environments.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 2.2 kVA
- Output power: 1320 W
- Waveform: Sine
- Input operation voltage (min): 168 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Output operation voltage (max): 230 V
- Output frequency: 60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Maximum current: 12 A
- Surge energy rating: 1080 J
- Response time: 8 ms
- EMI/RFI noise filtering: Yes
- Noise level: 45 dB
- Surge protection: Yes
- Surge protection features: Network
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces

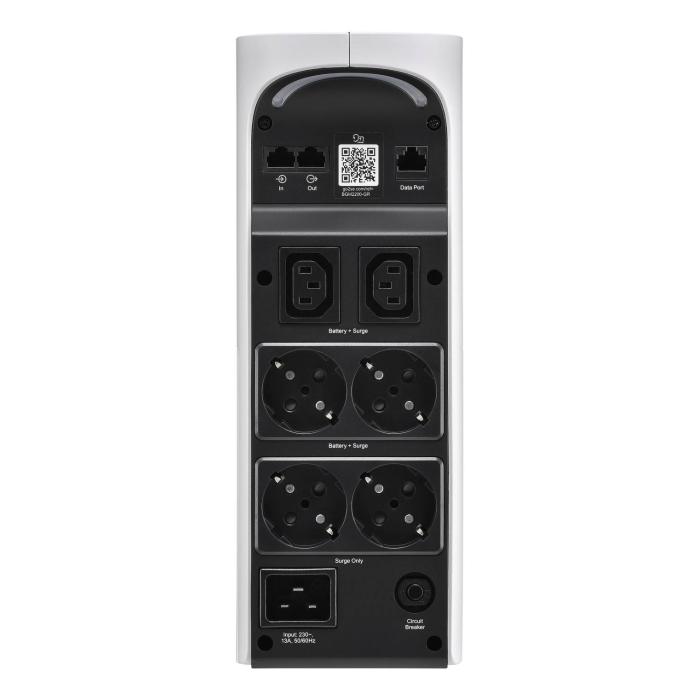

- AC outlet types: C13 coupler
- AC outlets quantity: 6 AC outlet(s)

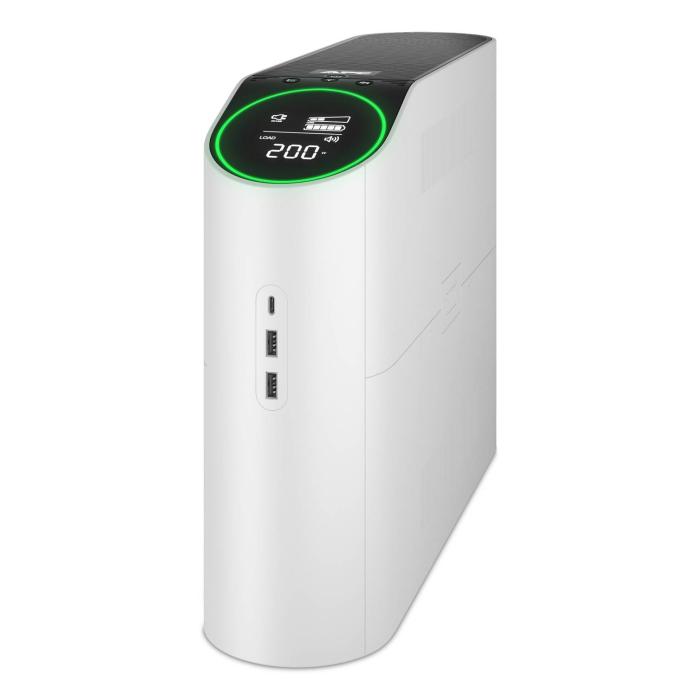

- USB port: Yes
- Serial interface type: RJ-45
- Cabling technology: 10/100/1000Base-T(X)
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery voltage: 24 V
- Number of batteries supported: 1
- Battery life (max): 5 year(s)
- Battery recharge time: 16 h
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Tower
- Rack capacity: 0U
- Cable length: 1.52 m
- Product colour: White

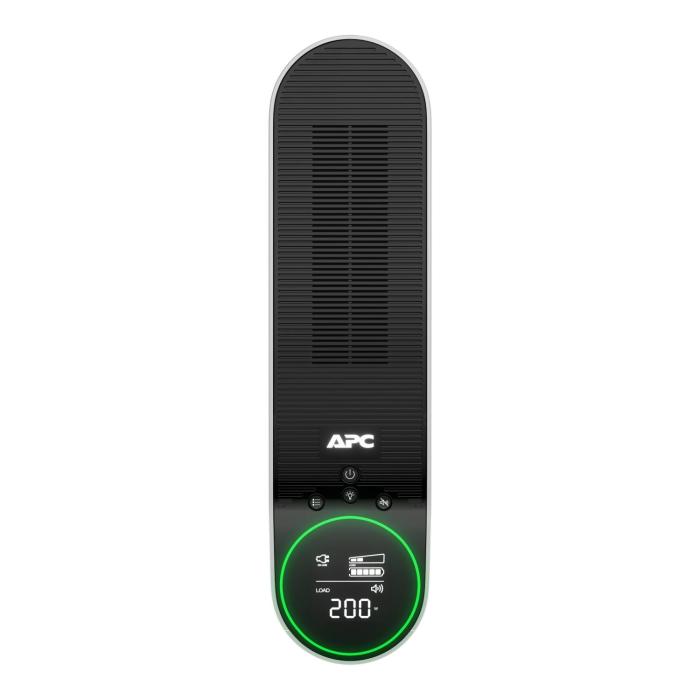

- Display type: LCD
- International Protection (IP) code: IP20
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3048 m
- Non-operating altitude: 0 - 3048 m
Certificates
- Certification: IEC 62040-1-1 IEC 62040-2
Packaging content
- Cables included: USB cable
- Manual: Yes
Sustainability
- Sustainability certificates: Green Premium
Weight & dimensions
- Width: 104.1 mm
- Depth: 408.9 mm
- Height: 292.1 mm
- Weight: 12.3 kg
Packaging data
- Package width: 355 mm
- Package depth: 480 mm
- Package height: 155 mm
- Package weight: 14.5 kg
