Description

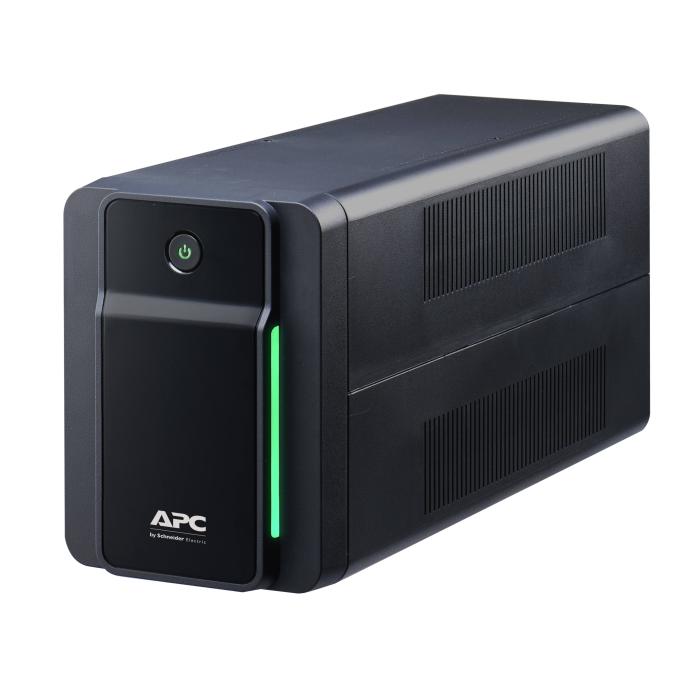

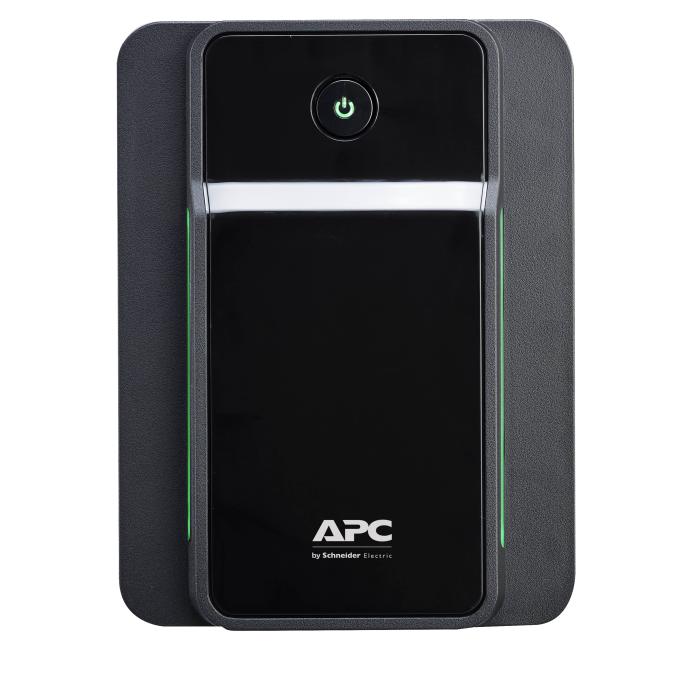

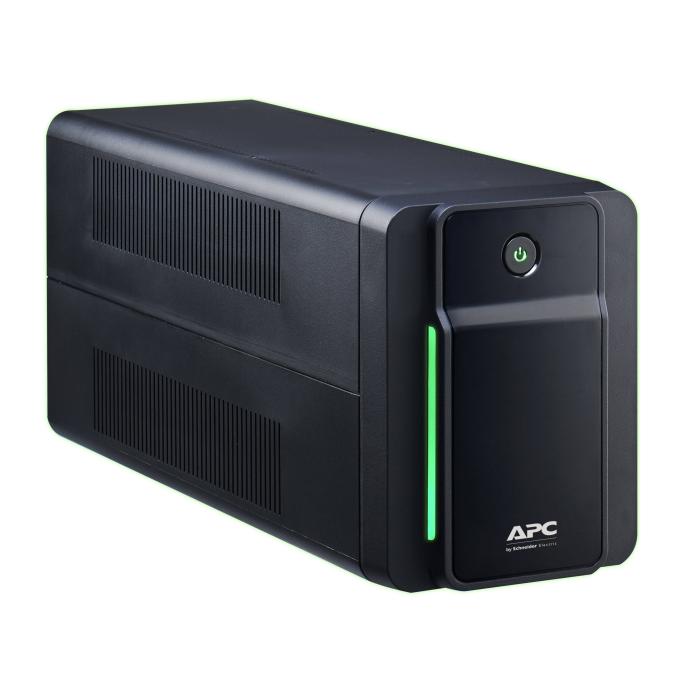

The APC BX950MI-GR UPS, in black, protects your equipment with a line-interactive topology and an output power of 520 W. It incorporates automatic voltage regulation to maintain a stable supply within an input range of 140 to 300 V, with a 230 V output and a sine waveform. Its frequency regulation of 0.5 Hz and voltage regulation of 10% help preserve the quality of the current received by your connected devices. The unit emits a low battery alarm and a noise level of 40 dB during operation. It features overload protection and a surge energy rating of 273 J, with an input power factor of 0.54 and a frequency of 50/60 Hz. With a weight of 6.1 kg and dimensions of 120 x 160 x 355 mm, it integrates alongside the workstation. Its 1.2 m cable facilitates connection to the mains socket.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 0.95 kVA
- Output power: 520 W
- Waveform: Sine
- Input operation voltage (min): 140 V
- Input operation voltage (max): 300 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 230 V
- Output operation voltage (max): 230 V
- Output frequency: 50/60 Hz
- Output frequency regulation: 0.5 Hz
- Output voltage regulation: 10%
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 273 J
- Response time: 6 ms
- Input power factor: 0.54
- Noise level: 40 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Audible alarm modes: Low battery alarm

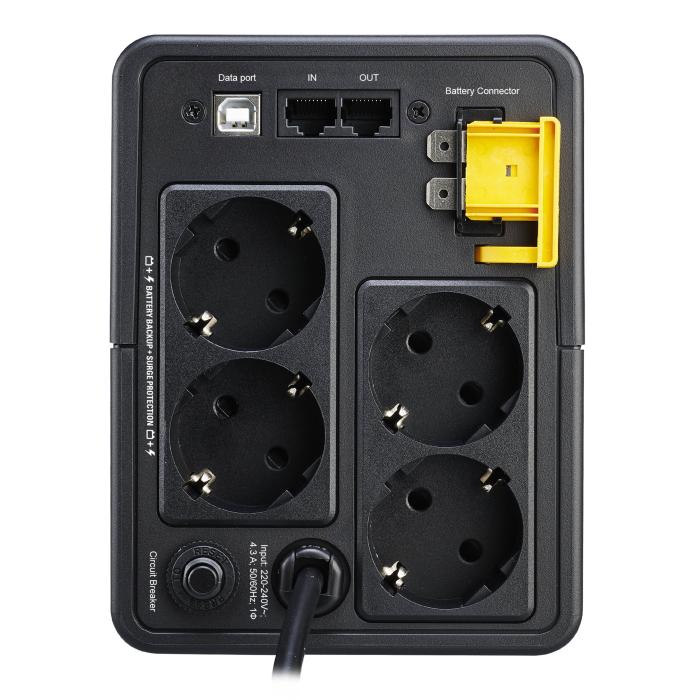

Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 4 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Ethernet LAN (RJ-45) ports: 2
Battery
- Battery technology: Sealed Lead Acid (VRLA)

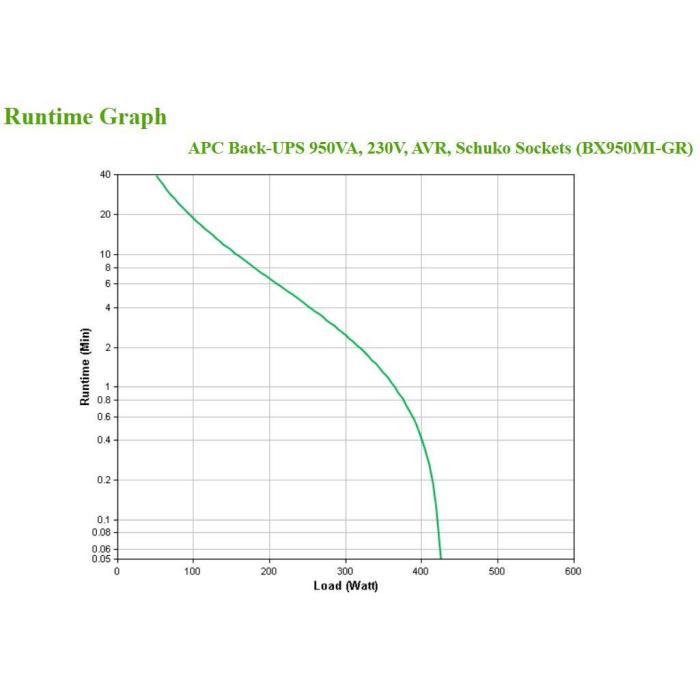

- Typical backup time at full load: 1 min
- Typical backup time at half load: 6.5 min
- Battery life (max): 2 year(s)
- Battery recharge time: 8 h
Design
- Form factor: Compact
- Cable length: 1.2 m
- Product colour: Black
- LED indicators: Yes
- International Protection (IP) code: IP20
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
Certificates
- Compliance certificates: RoHS
- Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Packaging content
- Cables included: Input power cable
- Manual: Yes
Weight & dimensions
- Width: 120 mm
- Depth: 355 mm
- Height: 160 mm
- Weight: 6.1 kg
Packaging data
- Package width: 197 mm
- Package depth: 430 mm
- Package height: 250 mm
- Package weight: 6.6 kg
Logistics data
- Harmonized System (HS) code: 85078000
