Description
Specifications
Design

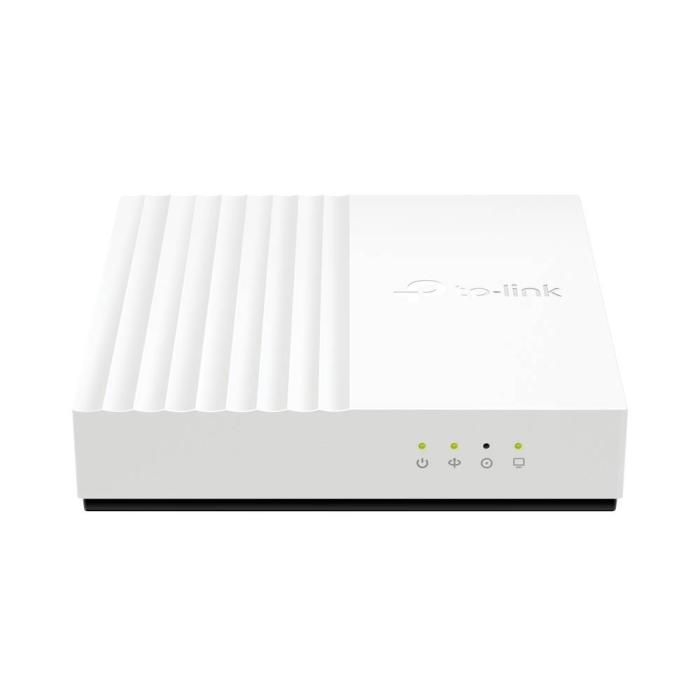

- Product type: Optical network terminal (ONT)
- Product colour: White
- LED indicators: Yes
- On/off switch: Yes
Network
- Tagged VLAN: Yes
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- ITU standards: G.988, G.9907.1
- Ethernet LAN data rates: 10, 100, 1000, 10000 Mbit/s
- Upstream data rate: 10000 Mbit/s
- Downstream data rate: 10000 Mbit/s
- Transmission distance (max): 20 km
- VLAN support: Yes
- QinQ VLAN support: Yes
Wireless LAN features
- Wi-Fi: No
Management features
- Web-based management: Yes
- Reset button: Yes
Security
- Security algorithms: AES

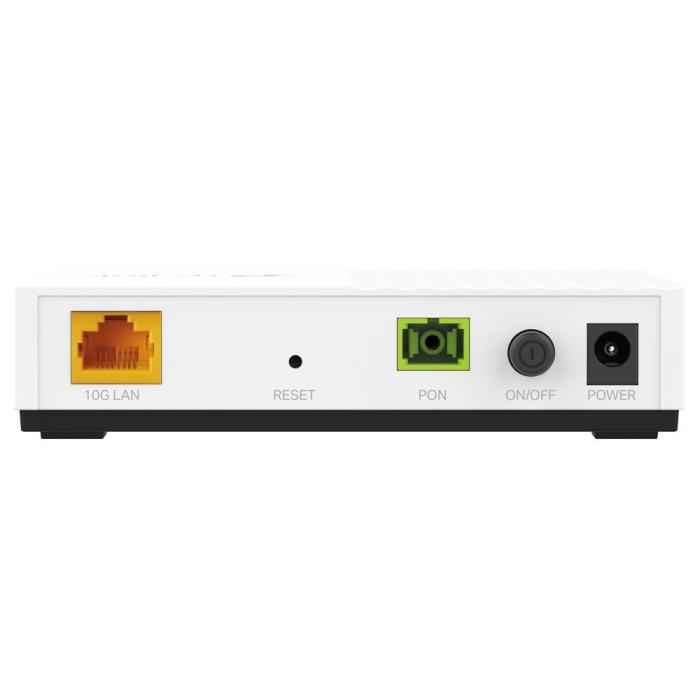

Ports & interfaces
- Fiber ports quantity: 1
- Fiber optic connector: SC/APC
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Power
- Output voltage: 9 V
- Output current: 0.85 A
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 120 mm
- Depth: 120 mm
- Height: 27.9 mm
Packaging content
- AC adapter included: Yes
- Quantity per pack: 1 pc(s)
- Cables included: LAN (RJ-45)
- Quick start guide: Yes
