Name: StarTech.com Thunderbolt 5 Docking Station, DP / HDMI, Triple Monitor Dock up to 4K 144Hz or Dual 8K 60Hz, 5x USB Ports, 140W Laptop Charging
Brand: STARTECH.COM
Price: 336.79 EUR
Availability: InStock

StarTech.com Thunderbolt 5 Docking Station, DP / HDMI, Triple Monitor Dock up to 4K 144Hz or Dual 8K 60Hz, 5x USB Ports, 140W Laptop Charging

More info

Not avaliable

Description

Specifications

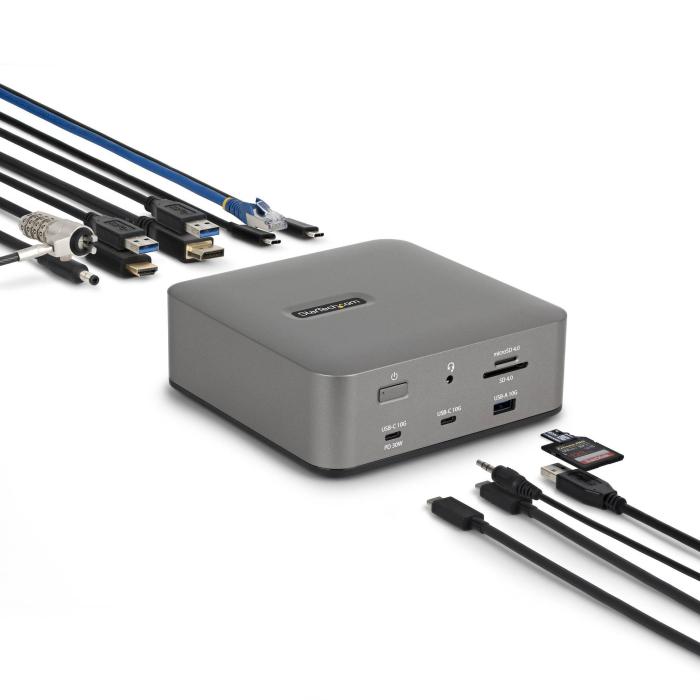

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 140 W
HDMI ports quantity: 1
DisplayPorts quantity: 1
Thunderbolt 5 ports quantity: 1
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
Wake-on-LAN ready: Yes
Networking standards: IEEE 802.3bz
Full duplex: Yes

Performance

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate: 40 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels

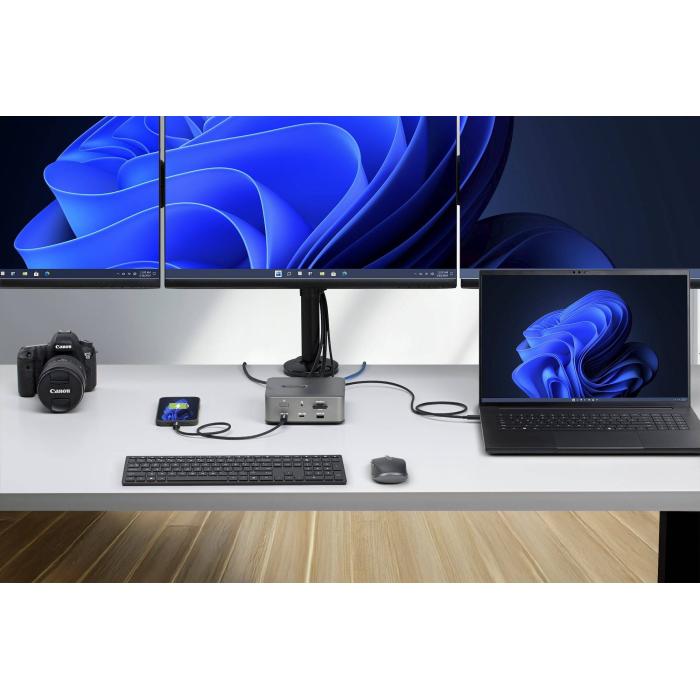

Number of displays supported: 3
Maximum refresh rate: 144 Hz
Cable lock slot: Yes
Cable lock slot type: Kensington, Nano
Product colour: Grey
On/off switch: Yes
LED indicators: Yes
UASP support: Yes
Housing material: Plastic

Power

Output voltage: 20 V
Output current: 9 A

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
Mac operating systems supported: Mac OS X 15.0 Sequoia

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 50 mm
Weight: 592 g

Packaging data

Package width: 302 mm
Package depth: 6.7 mm
Package height: 59 mm
Package weight: 1.8 kg

Packaging content

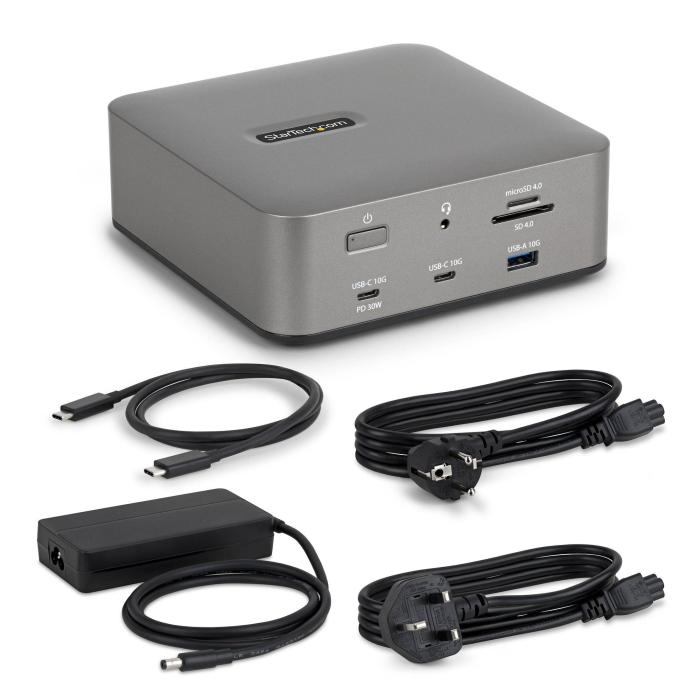

Cables included: Thunderbolt
AC adapter included: Yes
User guide: Yes

Technical details

Compliance certificates: RoHS, Trade Agreements Act (TAA)

Logistics data

Products per master (outer) case: 5 pc(s)
Master (outer) case width: 360 mm
Master (outer) case length: 330 mm
Master (outer) case height: 170 mm

Other features

Chipset: Intel - JHL9480 (Barlow Ridge), Synaptics - VMM7100, VIA Labs - VL822, VIA Labs - VL817, Realtek - RTL8156B, Genesys Logic - GL3
