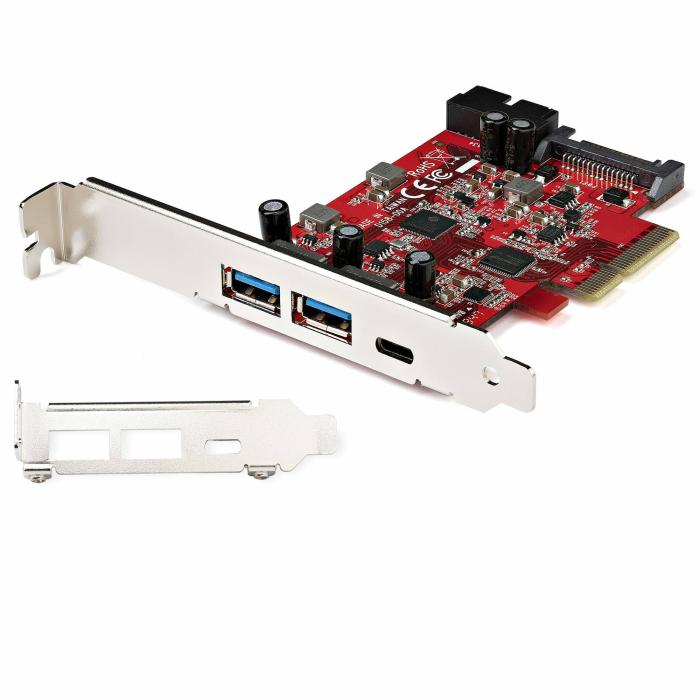

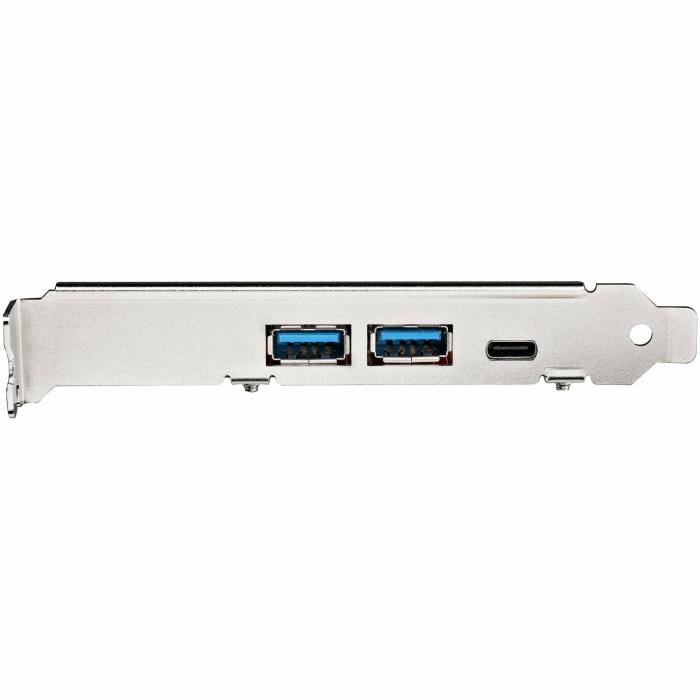

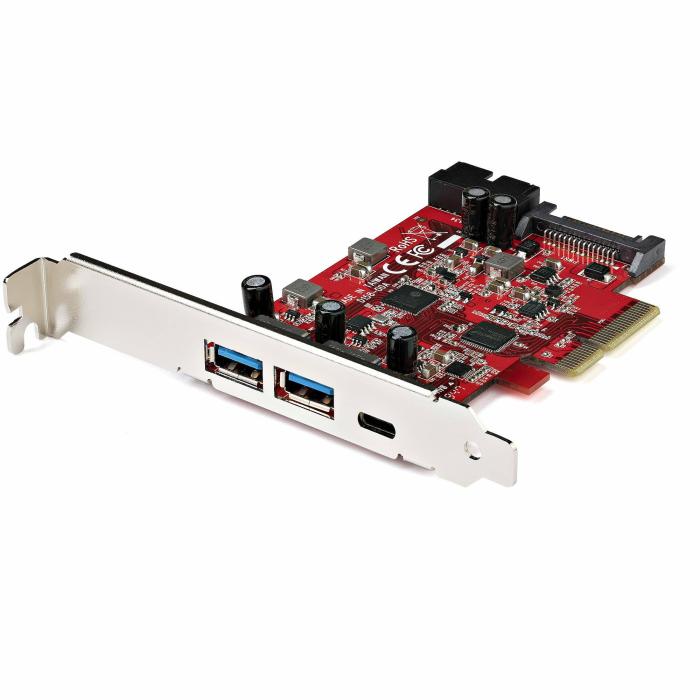

StarTech.com 5-Port USB PCIe Card - 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A - 1x 2 Port IDC (Internal 5Gbps USB Header Expansion) - USB C PCI Express Controller Card
More info
Brand: STARTECH.COM
74.38 €
59.50 €
without VAT
Get it
on the
August 13
/
August 17
SKU:
89059
PRC:
333080
EAN:
65030888325
PN:
PEXUSB312A1C1H
Description
StarTech.com 5-Port USB PCIe Card - 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C u0026 2x USB-A - 1x 2 Port IDC (Internal 5Gbps USB Header Expansion) - USB C PCI Express Controller Card, PCIe, USB 3.2 Gen 2 (3.1 Gen 2), PCIe 3.0, Red, 1677495 h, ASMedia - ASM3142, Genesys Logic - GL3590
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
- Expansion card standard: PCIe 3.0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Internal SATA ports quantity: 1
Design
- Internal: Yes
- Product colour: Red
- Mean time between failures (MTBF): 1677495 h
Features
- Chipset: ASMedia - ASM3142, Genesys Logic - GL3590
- Data transfer rate (max): 10 Gbit/s
- UASP support: Yes
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -20 - 80 °C
- Operating relative humidity (H-H): 15 - 90%
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Technical details
- Compliance certificates: CE, RoHS
Weight & dimensions
- Width: 68.9 mm
- Depth: 102 mm
- Height: 14.4 mm
- Weight: 60 g
Packaging data
- Mounting brackets included: Yes
- Quick installation guide: Yes
- Package width: 140 mm
- Package depth: 175 mm
- Package height: 30 mm
- Package weight: 125 g
Logistics data
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 60 pc(s)
- Master (outer) case width: 370 mm
- Master (outer) case length: 375 mm
- Master (outer) case height: 500 mm
