Description
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
- Supported memory clock speed (max): 7200 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 3
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes
- Thunderbolt headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes

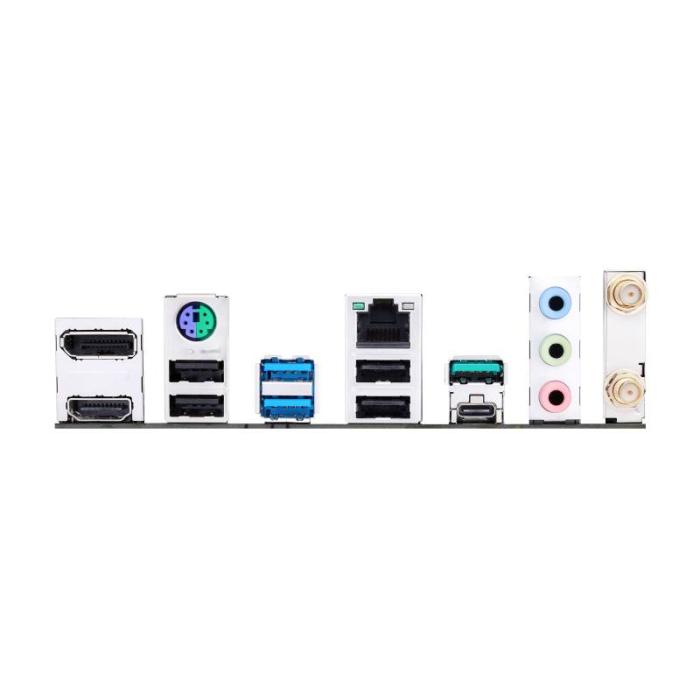

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- WiFi-AP antenna jack: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
Features
- Motherboard chipset: Intel Z790
- Audio output channels: 7.1 channels
- Product colour: Aluminium, Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 192 Mbit
- Clear CMOS button: Yes
Packaging data
- Package width: 338 mm
- Package depth: 273 mm
- Package height: 68 mm
- Package weight: 1.68 kg
Weight & dimensions
- Width: 305 mm
- Depth: 234 mm
- Height: 40 mm

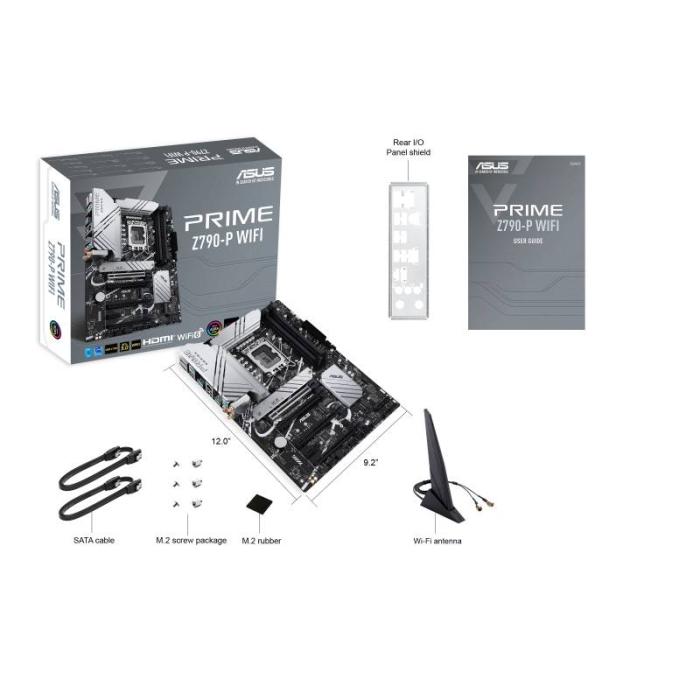

Packaging content
- Cables included: SATA
- Drivers included: Yes
Other features
- Weight: 1.03 kg
