Description

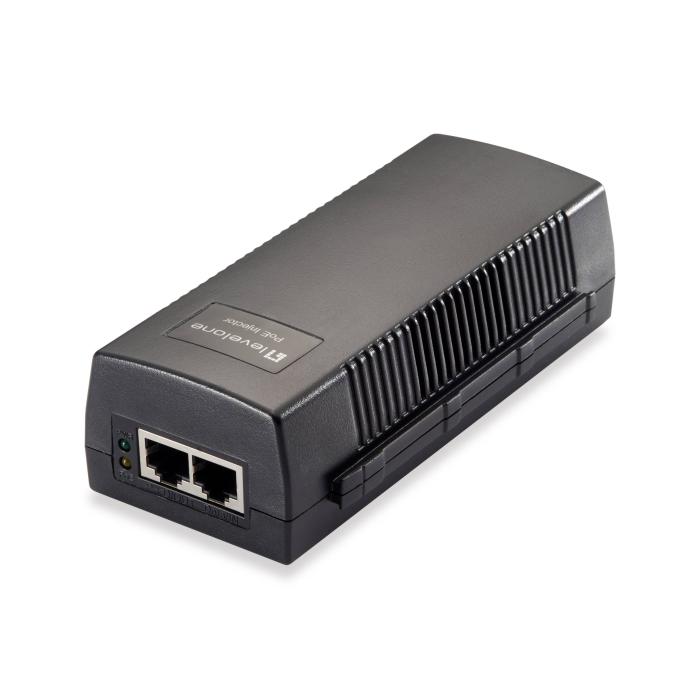

LevelOne POI-3014, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Black, 100 m, PoE, Power
Specifications
Network
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Power over Ethernet (PoE): Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Features
- Product colour: Black
- Wall mountable: Yes
- Plug and Play: Yes
- Surge protection: Yes
- Maximum operating distance: 100 m

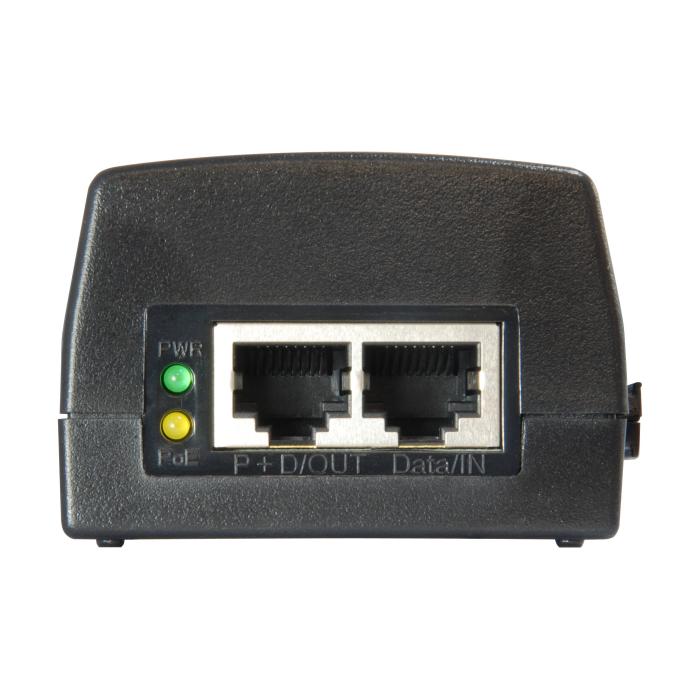

- LED indicators: PoE, Power
- Pin assignment & polarity: 4/5 (+), 7/8 (-)
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
Power
- Power over Ethernet (PoE) voltage: 52 V

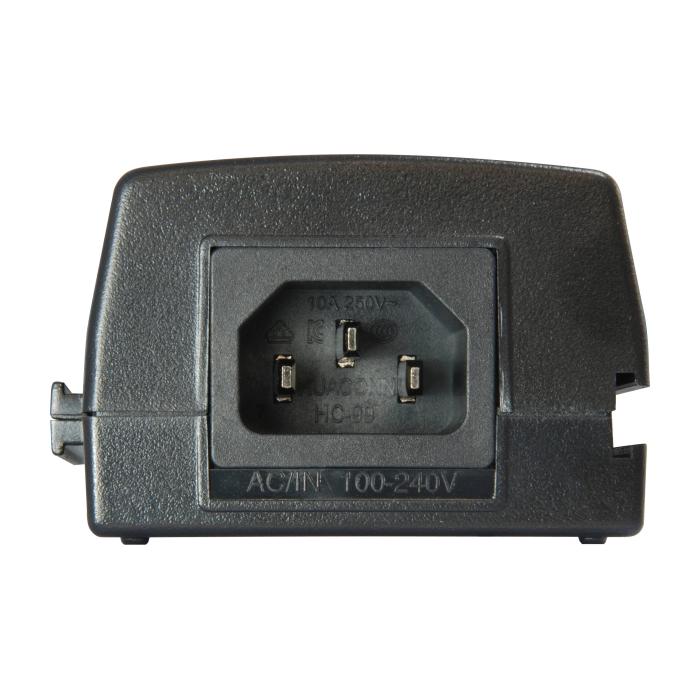

- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- Input current: 0.8 A
- Output current: 0.6 A
- Power consumption (max): 30 W
- Power over Ethernet (PoE) power per port: 30 W
Certificates
- Compliance certificates: RoHS
- Certification: FCC Part 15, CE
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): 0 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 145.7 mm
- Depth: 64.4 mm
- Height: 43.4 mm
- Weight: 350 g
Packaging content
- Number of products included: 1 pc(s)
- Quick installation guide: Yes
Packaging data
- Package width: 210 mm
- Package depth: 145 mm
- Package height: 55 mm
- Package weight: 400 g
Logistics data
- Harmonized System (HS) code: 85044095
