Description

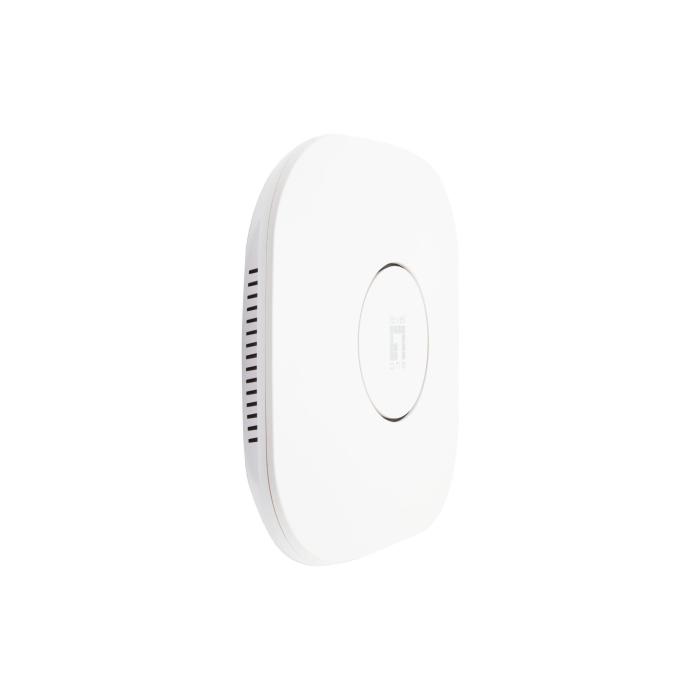

LevelOne AC750 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed, 2.4 GHz, 5 GHz, 433 Mbit/s, 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP, 10,100,1000 Mbit/s
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 433 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.4 - 5.825 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEE
- Number of users: 80 user(s)
- Channels quantity: 36 channels
- Automatic channel selection: Yes
- Modulation: 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
- Wi-Fi Multimedia (WMM)/(WME): Yes
- Flow control support: Yes
- Quality of Service (QoS) support: Yes
- Receiver sensitivity: 2.4GHz: 802.11n (20MHZ): -70 dBm 802.11n (40MHZ): -68 dBm 802.11g: -72 dBm 802.11b: -95 dBm 5GHz: 802.11ac (80MHZ): -62 dBm 802
Security
- Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
- Service Set Identifier (SSID) features: SSID broadcast on/off
- Number of SSID supported: 8
Management features
- Web-based management: Yes
- Switch type: Managed
- Firmware upgradeable: Yes

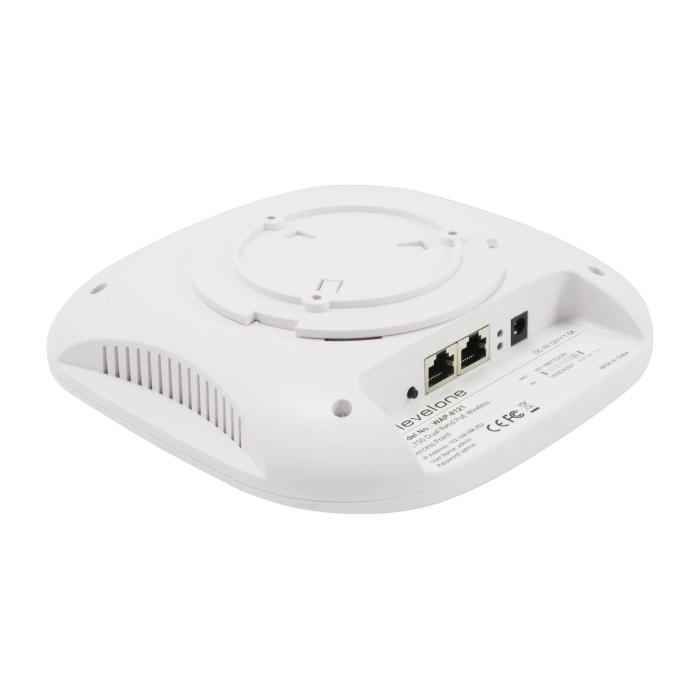

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- WAN connection: Ethernet (RJ-45), Wi-Fi
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- Output voltage: 12 V
- Output current: 1.5 A
- Power consumption (typical): 15 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- Reset button: Yes
- LED indicators: Power, WLAN
- Internal: No
Antenna
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antennas quantity: 3
- Antenna gain level (max): 15 dBi
Certificates
- Certification: CE/FCC
Weight & dimensions
- Width: 189 mm
- Depth: 38.5 mm
- Height: 189 mm
- Weight: 326 g
Packaging data
- Package width: 214 mm
- Package depth: 62 mm
- Package height: 317 mm
- Package weight: 680 g
Packaging content
- Cables included: LAN (RJ-45)
- Quick start guide: Yes
Operational conditions
- Operating relative humidity (H-H): -20 - 50%
- Operating temperature (T-T): -40 - 70 °C
- Storage temperature (T-T): 5 - 90 °C
- Storage relative humidity (H-H): 10 - 90%
Logistics data
- Harmonized System (HS) code: 85176990
