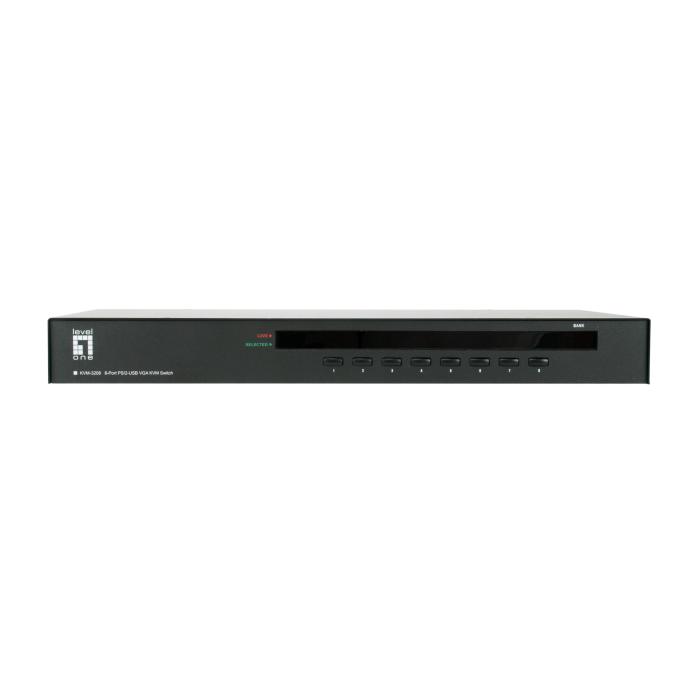

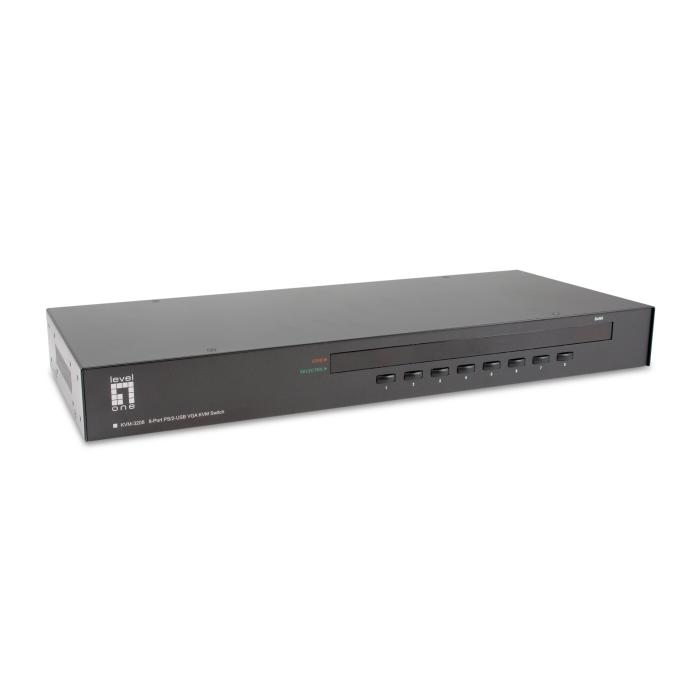

Name: LevelOne 8-Port PS/2-USB VGA KVM Switch
Brand: LEVELONE
Price: 375.83 EUR
Availability: InStock

LevelOne 8-Port PS/2-USB VGA KVM Switch

More info

375.83 €

313.19 € without VAT

Description

Specifications

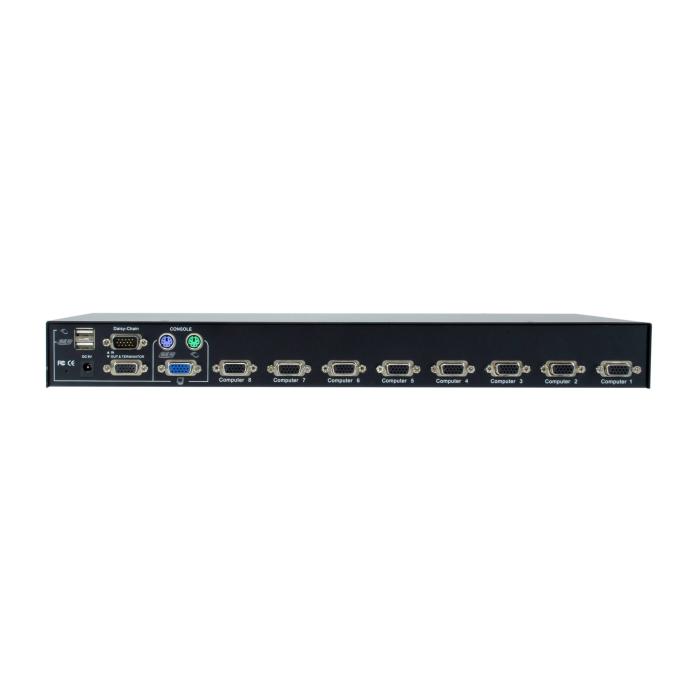

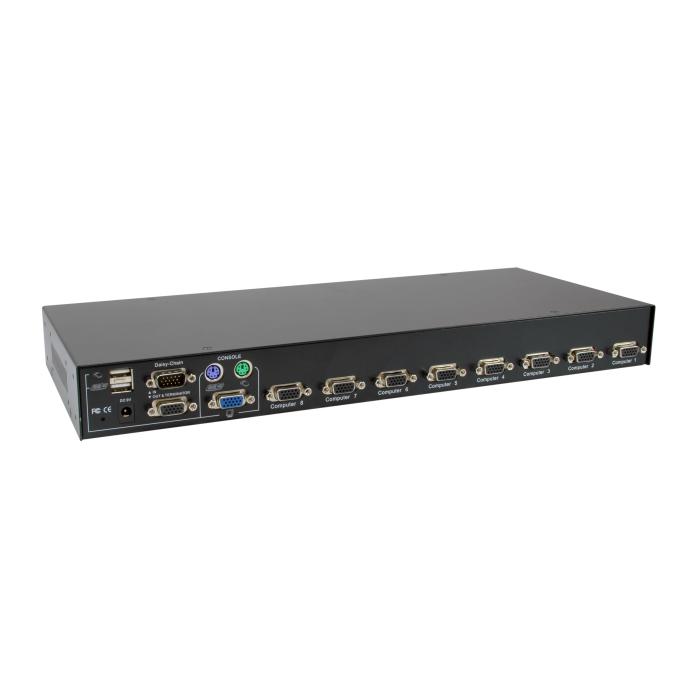

Ports & interfaces

Number of computers controlled: 8
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
VGA (D-Sub) ports quantity: 8
Console ports: PS/2, USB A, VGA (D-Sub)
Console USB ports quantity: 2
PS/2 ports quantity: 2
DC-in jack: Yes

Performance

Maximum resolution: 2048 x 1536 pixels
Scan interval: 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90 s
Auto scan delay (min): 10 s
Auto scan delay (max): 95 s
Daisy chain: Yes
Maximum operating distance: 30 m

Design

Rack mounting: Yes
Rack capacity: 1U
Product colour: Black
Housing material: Metal
Cascadable: Yes
LED indicators: Power
Push button: Yes
Hot keys: Yes

Display

Built-in display: No
On Screen Display (OSD): Yes

Power

Power source: DC
Input voltage: 9 V
Input current: 1 A
External power adapter: Yes

System requirements

Windows operating systems supported: Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Sustainability

Sustainability compliance: Yes
Compliance certificates: CE, Federal Communications Commission (FCC), UKCA, WEEE

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 410 mm
Depth: 165 mm
Height: 44.5 mm
Weight: 1.84 kg

Packaging data

Package width: 567 mm
Package depth: 245 mm
Package height: 106 mm
Package weight: 2.88 kg
Package type: Box

Packaging content

Manual: Yes
AC adapter included: Yes

Technical details

Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 11.5 cm

Logistics data

Master (outer) cases per pallet (air): 24 pc(s)
Master (outer) case width: 585 mm
Master (outer) case length: 270 mm
Master (outer) case height: 545 mm
Master (outer) case gross weight: 15.2 kg
Products per master (outer) case: 5 pc(s)
Country of origin: Taiwan
