Tripp Lite B013-HU-4K HDMI HDBaseT KVM Console Extender over Cat6 - 2 USB Ports, IR, 4K 30 Hz (130 ft.), 1080p (230 ft.)
More info
Brand: TRIPP LITE
306.45 €Stock available: 0 units.
Unavailable
SKU:
94736
PRC:
382352
EAN:
37332241160
PN:
B013-HU-4K
Description

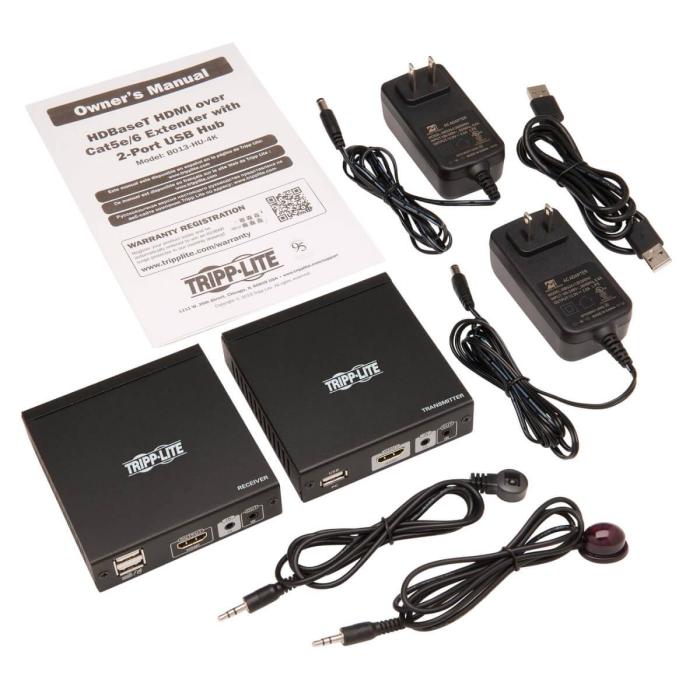

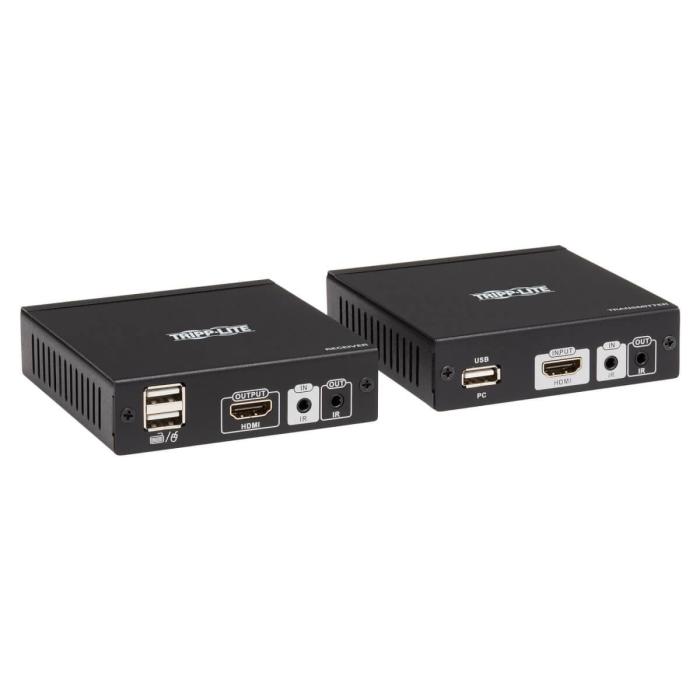

Tripp Lite KVM console extender that transmits HDMI, two USB ports and IR control up to 4K at 30 Hz over Cat6 cable, with a range of 70 metres at 1080p and 40 metres at maximum resolution. This transmitter and receiver set in black aluminium supports Cat5 and Cat6 cables, and includes audio inputs for PC and LED indicators. Its connectivity is wired via RJ-45 and USB type A ports, with a colour depth of 24 bit and CE, FCC, RoHS and REACH certifications. In addition, it offers remote control via IR for easy management of connected devices.
Specifications
Features
- Type: Transmitter & receiver
- Connectivity technology: Wired
- Maximum transfer distance: 70 m
- Cable types supported: Cat5, Cat6
- Maximum digital resolution: 3840 x 2160 pixels
- Colour depth: 24 bit
- Product colour: Black
- Material: Aluminium
- LED indicators: Yes
- Certification: CE, FCC, RoHS, REACH

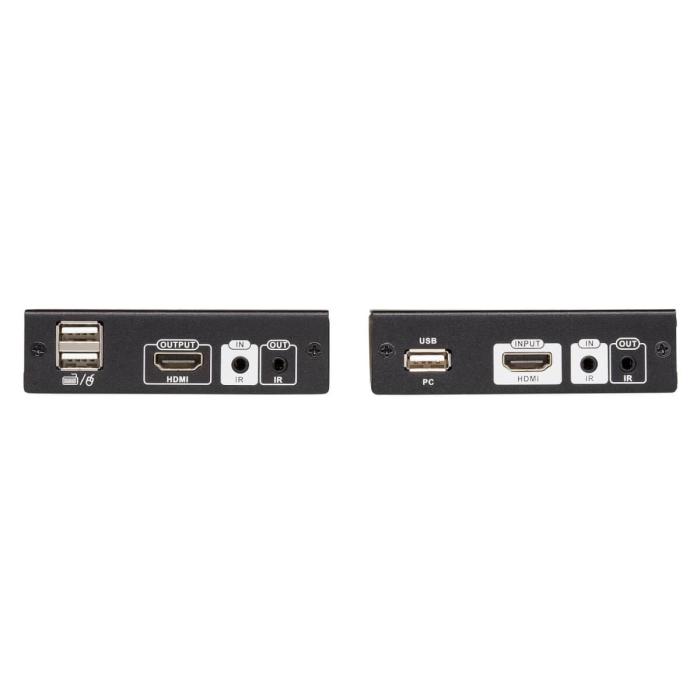

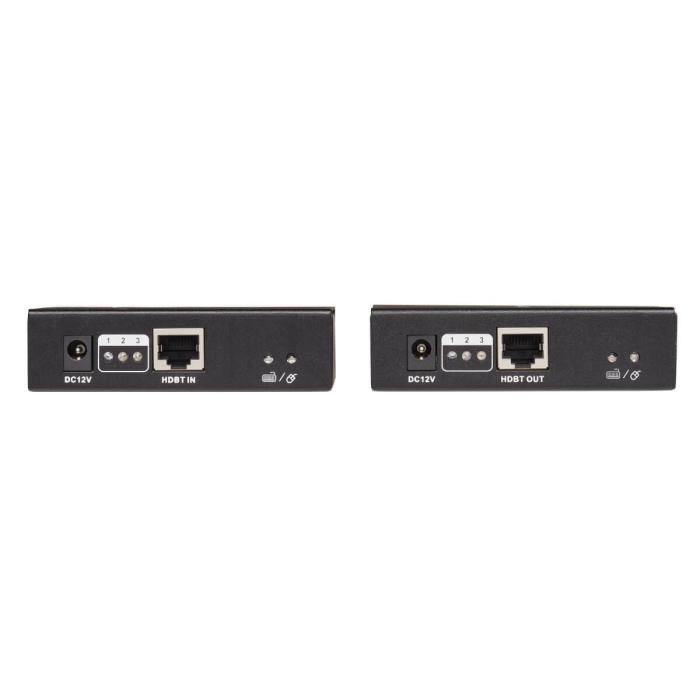

Transmitter
- Transmitter video port type: HDMI
- Transmitter local keyboard/mouse port type: USB
- RJ-45 ports quantity (transmitter): 1
Receiver
- Receiver local video port type: HDMI
- Receiver local keyboard/mouse port type: USB
- RJ-45 ports quantity (receiver): 1
Ports & interfaces
- USB port type: USB Type-A
- PC Audio in: Yes
- PC Audio out: Yes
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 0.3 A
Packaging data
- Package width: 240 mm
- Package depth: 176 mm
- Package height: 80 mm
- Package weight: 1.07 kg
Packaging content
- Cables included: IR, USB
- Manual: Yes
- Included power plug types: AU, EU, NA, UK
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 90%
Logistics data
- Country of origin: China
- Master (outer) case GTIN (EAN/UPC): 10037332241167
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 270 mm
- Master (outer) case length: 420.1 mm
- Master (outer) case height: 380 mm
- Master (outer) case gross weight: 10.1 kg
- Products per master (outer) case: 10 pc(s)
