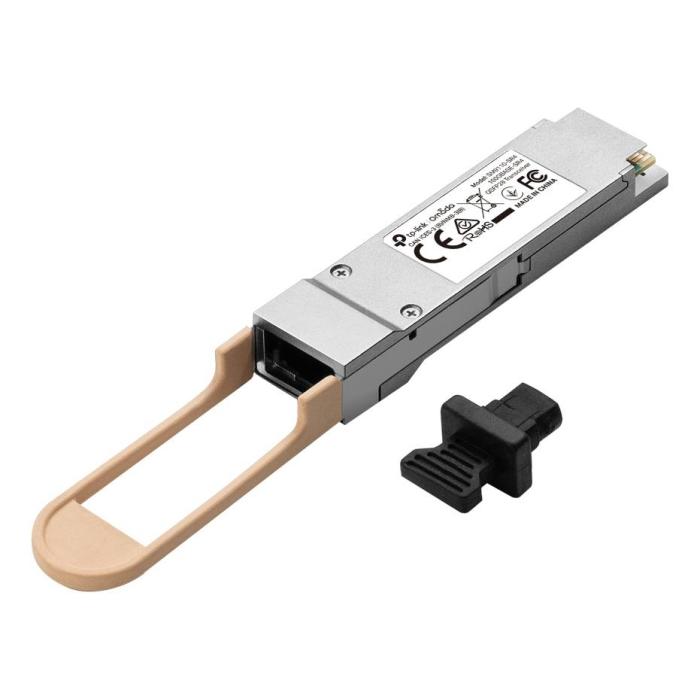

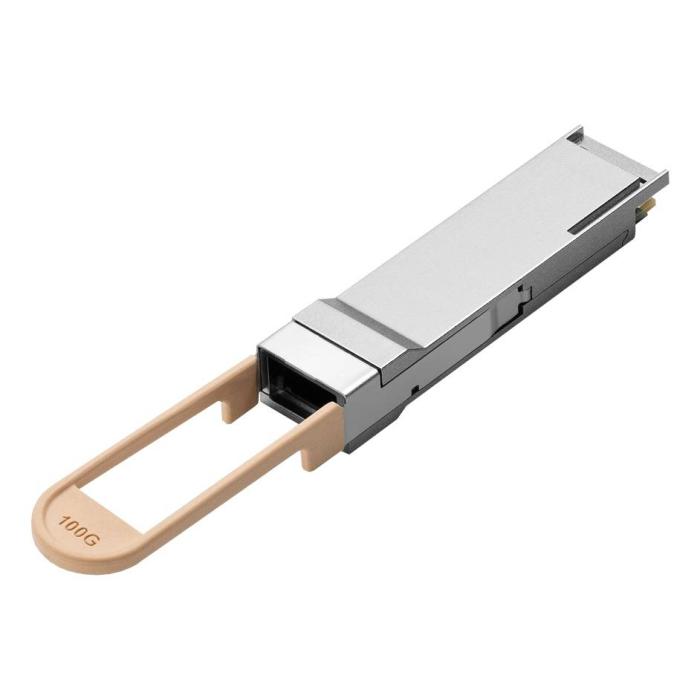

TP-Link Omada SM9110-SR4 network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm

More info

Brand: TP-LINK

24.29 €
20.24 € without VAT

Get it on the February 13 / February 18
SKU: 125559 PRC: 598777 EAN: 8885020625493 PN: SM9110-SR4

Description

Specifications

Performance

  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 100000 Mbit/s
  • Interface type: QSFP28
  • Single-mode fiber (SMF) supported: No
  • Multi-mode fiber (MMF) supported: Yes
  • Fiber optic connector: MPO-12, MTP
  • Fiber cable diameters supported (core/cladding): 50/125 µm
  • SFP transceiver standard: SR4
  • Maximum transfer distance: 150 m
  • Wavelength: 850 nm
  • Tx power (min): -8.4 dBmW
  • Tx power (max): 2.4 dBmW
  • Ethernet interface type: 40 Gigabit Ethernet, 100 Gigabit Ethernet
  • Networking standards: IEEE 802.3ba, IEEE 802.3bm
  • Fiber ethernet cabling technology: 40GBASE, 100GBASE
  • Digital Diagnostics Monitoring (DDM): Yes

Features

  • Product colour: Metallic
  • Form factor: QSFP28
  • Plug and Play: Yes
  • Hot-swap: Yes

Power

  • Input voltage: 3.3 V

Certificates

  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
  • Certification: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP

Operational conditions

  • Minimum operating temperature: 0 °C
  • Maximum operating temperature: 70 °C
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 0 - 85%
  • Storage relative humidity (H-H): 0 - 85%

Weight & dimensions

  • Width: 124 mm
  • Depth: 18.4 mm
  • Height: 11.7 mm

Packaging content

  • Quantity per pack: 1 pc(s)

Packaging data

  • User guide: Yes

Logistics data

  • Country of origin: China
