Description

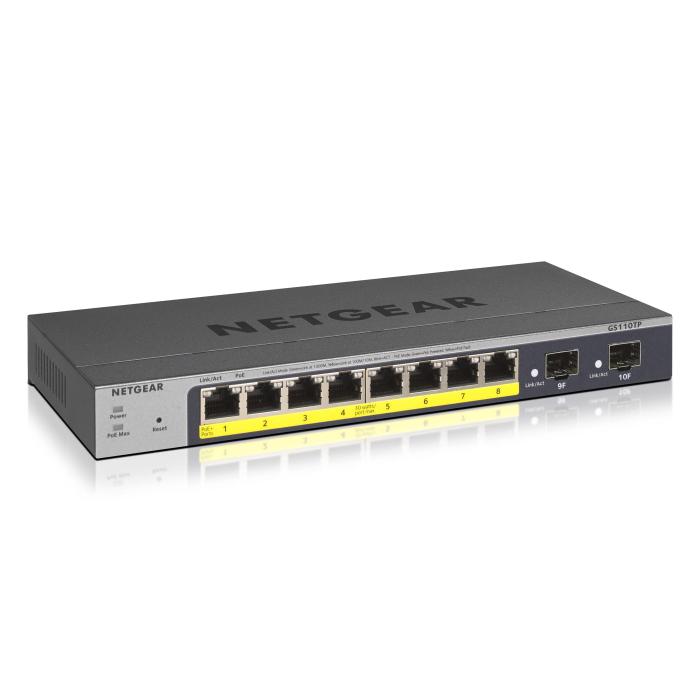

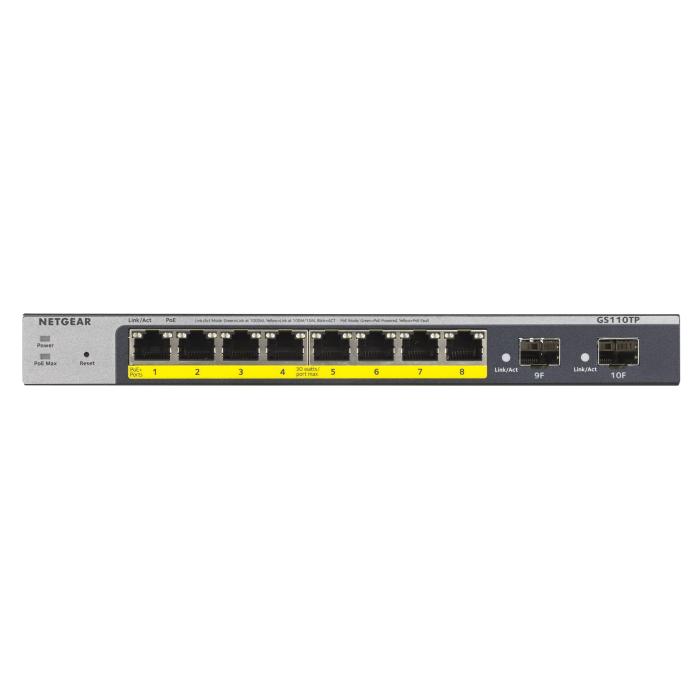

NETGEAR GS110TP, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3/L4
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- MAC address auto-learning supported: Yes
- Number of VLANs: 64
Data transmission
- Switching capacity: 20 Gbit/s
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Packet buffer memory: 0.5 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- Access Control List (ACL) IPv6 entries: 100
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
- MAC address filtering: Yes
Multicast features
- Multicast support: Yes
- IPv4 multicast entries: 32
- Number of multicast groups filtered: 256
Protocols
- Management protocols: SNMP
- Switching protocols: SNMP
- Data link protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
- Supported network protocols: HTTP, HTTPS
Design
- Rack mounting: No
- Product colour: Grey
- LED indicators: Activity, LAN, Link, PoE, Power, Speed
Performance
- Processor frequency: 500 MHz
- Memory type: RAM
- Internal memory: 128 MB
- Flash memory: 32 MB
- Mean time between failures (MTBF): 1200041 h
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 54 V
- Input current: 1.25 A
- Power consumption (max): 15.1 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 55 W
- Total Power over Ethernet (PoE) budget: 69.5 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 3000 m
- Heat dissipation: 237.38 BTU/h
Weight & dimensions
- Width: 236 mm
- Depth: 101 mm
- Height: 27 mm
- Weight: 610 g
Packaging content
- Manual: Yes
Packaging data
- Package type: Box
- Package width: 161 mm
- Package depth: 267 mm
- Package height: 86 mm
- Package weight: 1.49 kg
Certificates
- Certification: CE, FCC, VCCI Class B, C-Tick
Logistics data
- Master (outer) case width: 274 mm
- Master (outer) case length: 350 mm
- Master (outer) case height: 309 mm
- Harmonized System (HS) code: 85176990
- Master (outer) case gross weight: 9.73 kg
- Products per master (outer) case: 6 pc(s)
