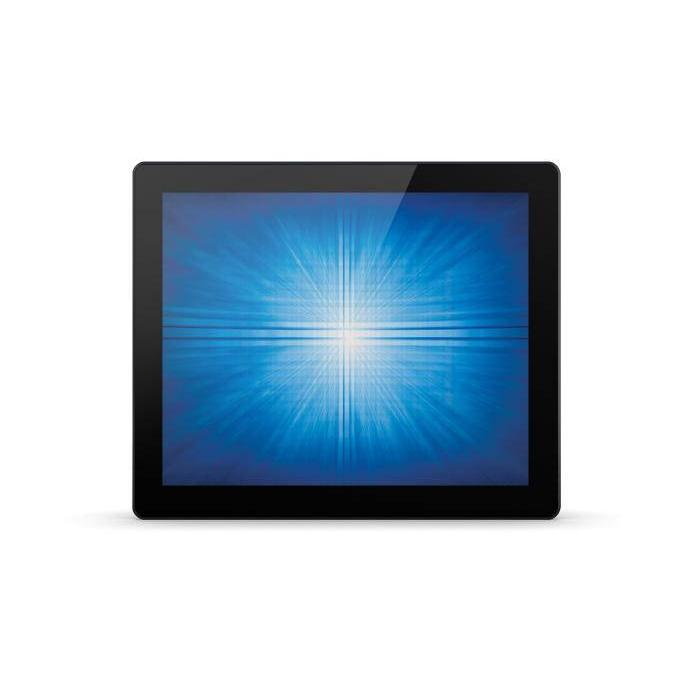

Elo Touch Solution 1790L 17'' 1280 x 1024pixels Single-touch Kiosk Black touch screen monitor
Elo Touch Solution 1790L, 43.2 cm (17"), 5 ms, 225 cd/m², LCD/TFT, 800:1, Surface acoustic wave.
More infoBrand: ELO TOUCH SOLUTION
589.09 €
SKU:
78588
PRC:
151805
EAN:
815335025822
PN:
E326942
Description
1790L Open Frame Touchscreen (Rev B), 43.18 cm (17 '') LCD (LED) 1280x1024, SAW (IntelliTouch Surface Acoustic Wave) Single Touch, HDMI, VGA, Display Port
Specifications
Display
- Display diagonal: 43.2 cm (17")
- Display resolution: 1280 x 1024 pixels
- Display technology: LCD/TFT
- Viewing angle, horizontal: 170°
- Aspect ratio: 5:4
- Display viewable area (HxV): 337.92 x 270.336 mm
- Viewing angle, vertical: 160°
- Display number of colours: 16.78 million colours
- LED backlight: Yes
- Full HD: No
- Backlight type: LED
- Digital vertical frequency: 50 - 75 Hz
- Touchscreen technology: Surface acoustic wave
- Response time: 5 ms
- Display brightness: 225 cd/m²
- Contrast ratio (typical): 800:1
- Digital horizontal frequency: 30 - 82 kHz
- Horizontal scan range: 30 - 82 kHz
- Vertical scan range: 50 - 75 Hz
Design
- Colour of product: Black
Performance
- Touch technology: Single-touch
- Touchscreen type: Kiosk
- Built-in camera: No
- Mean time between failures (MTBF): 50000 h
- On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ports & interfaces
- USB 2.0 ports quantity: 1
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
Ergonomics
- Wall mountable: Yes
- VESA mounting: Yes
- VESA mounting interfaces: 75 x 75,100 x 100 mm
Power
- Power supply type: DC
- Power consumption (typical): 17.8 W
- Power consumption (off): 0.5 W
Operational conditions
- Storage relative humidity (H-H): 10 - 95%
- Operating relative humidity (H-H): 20 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 0 - 40 °C
Certificates
- RoHS compliance: Yes
Weight & dimensions
- Weight: 3.6 kg
Packaging data
- Package width: 476 mm
- Package depth: 183 mm
- Package height: 418 mm
- Package weight: 5.6 kg
