Description

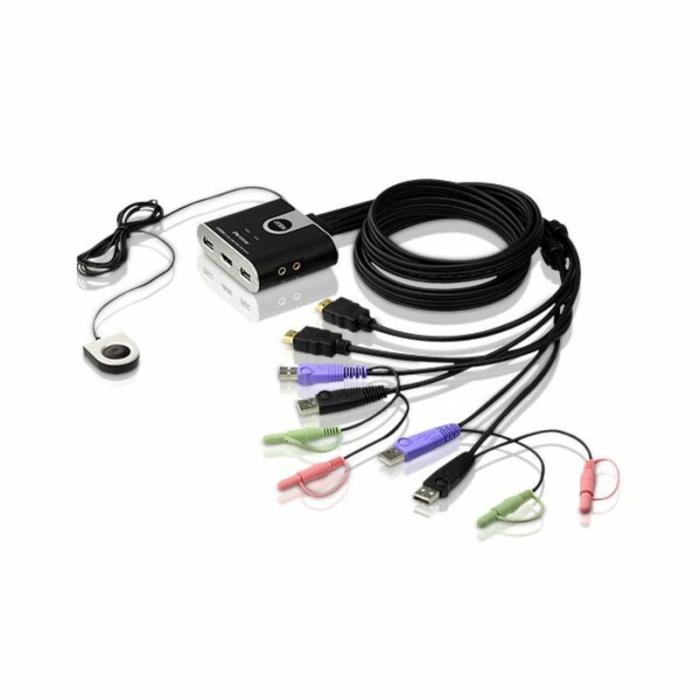

ATEN 2-Port USB HDMI KVM Switch with Audio, 1920 x 1200 pixels, WUXGA, 0.72 W, Black
Specifications
Ports & interfaces
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- HDMI ports quantity: 2
- Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
- Console USB ports quantity: 2
- USB 2.0 Type-A hub ports quantity: 4
- USB connector type: USB Type-A
- Audio connections: Yes
- Headphone outputs: 3
- Number of microphone inputs: 3
Performance
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- Scan interval: 3, 5, 10, 20 s
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Plastic
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
Display
- Built-in display: No
Power
- Power source: DC
- Input voltage: 5 V
- Power consumption (typical): 0.72 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
Weight & dimensions
- Width: 82.4 mm
- Depth: 66.5 mm
- Height: 25.2 mm
- Weight: 409 g
Packaging data
- Package width: 70 mm
- Package depth: 163 mm
- Package height: 235 mm
- Package weight: 550 g
Packaging content
- Quick installation guide: Yes
- Manual: Yes
Logistics data
- Master (outer) case net weight: 4.09 kg
- Harmonized System (HS) code: 85176200
- Master (outer) case width: 395 mm
- Master (outer) case length: 405 mm
- Master (outer) case height: 182 mm
- Master (outer) case gross weight: 6.13 kg
- Products per master (outer) case: 10 pc(s)
