Description

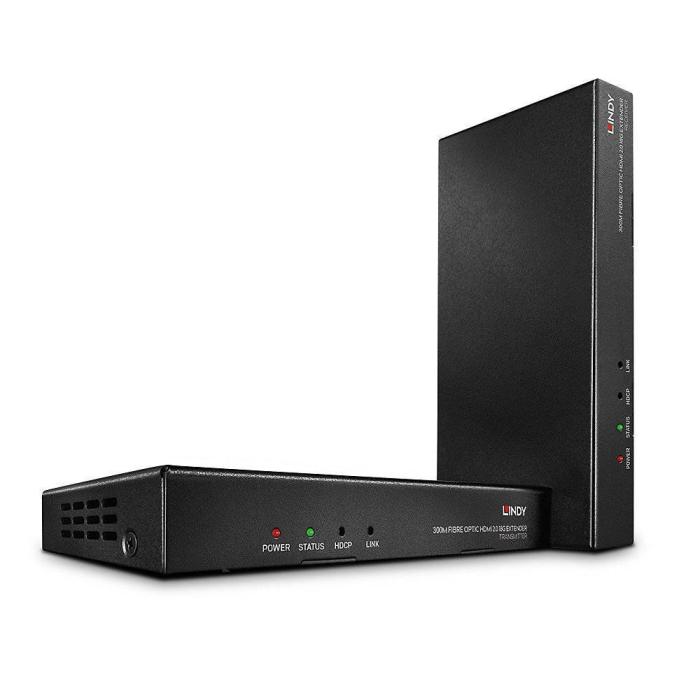

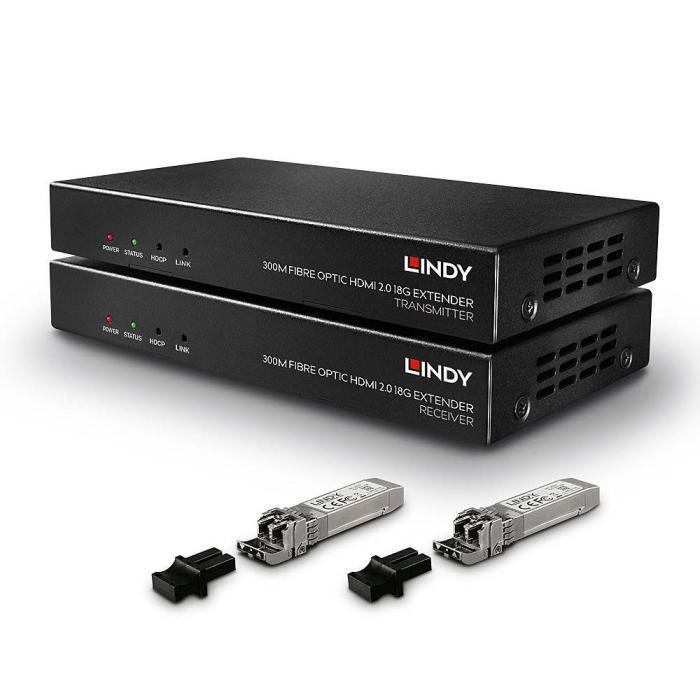

The Lindy 38174 is an AV signal extender that functions as both transmitter and receiver, with a black finish and a weight of 300 g. Its dimensions are 150 x 74.4 x 20 mm (width x height x depth), and its metal housing protects the circuits in demanding installations. It offers a maximum resolution of 3840 x 2160 pixels at 60 Hz, with a bandwidth of 18 Gbit/s and HDMI 2.0 compatibility. It incorporates HDCP pass-through and EDID management to maintain signal authenticity between the transmitter and receiver. The fibre optic connection uses LC connectors and allows a maximum transfer distance of 300 m to be reached, with support for wavelengths of 850 nm. It has two optical digital audio inputs, one HDMI output, an RS-232 serial interface and a direct current input plug. It is CE, FCC and REACH certified.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 3840 x 2160 pixels
- Maximum transfer distance: 300 m
- Maximum refresh rate: 60 Hz
- Fiber optic wavelengths supported: 850 nm
- Extended display identification data (EDID): Yes
- HDCP pass-through: Yes
- Bandwidth: 18 Gbit/s
- HDCP: Yes
- Material: Metal
- Product colour: Black
- Certification: CE, FCC, REACH

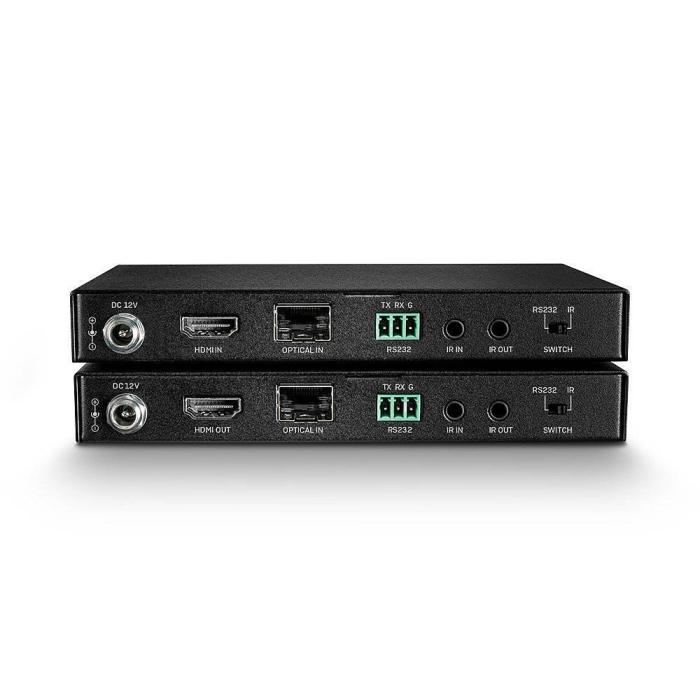

Ports & interfaces
- Connectivity technology: Wired
- HDMI in: 1
- Number of HDMI outputs: 1
- HDMI version: 2.0
- Fiber optic connector: LC
- Digital audio optical in: 2
- Serial interface type: RS-232
- Remote (IR) input: 2
- Remote (IR) output: 2
- DC-in jack: Yes
Power
- Operating voltage: 12 V
- Input current: 0.5 A
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 150 mm
- Depth: 20 mm
- Height: 74.4 mm
- Weight: 300 g
Packaging data
- Package width: 305 mm
- Package depth: 180 mm
- Package height: 75 mm
- Package weight: 1.23 kg
Packaging content
- AC adapter included: Yes
- Manual: Yes
- IR blaster included: Yes
- IR receiver included: Yes
Technical details
- Compliance certificates: RoHS
