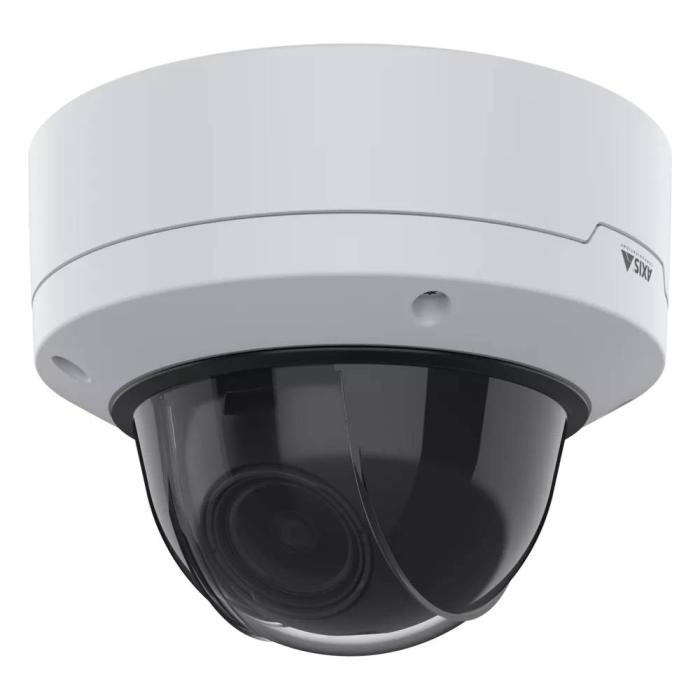

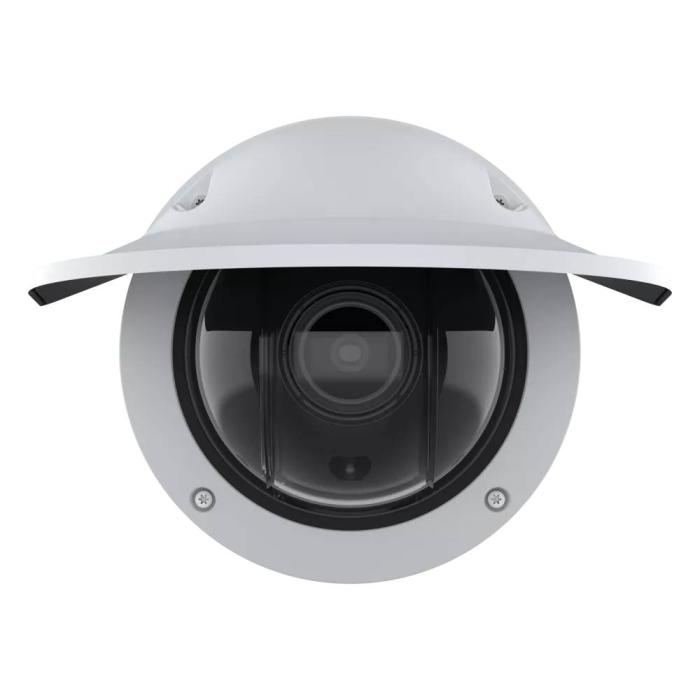

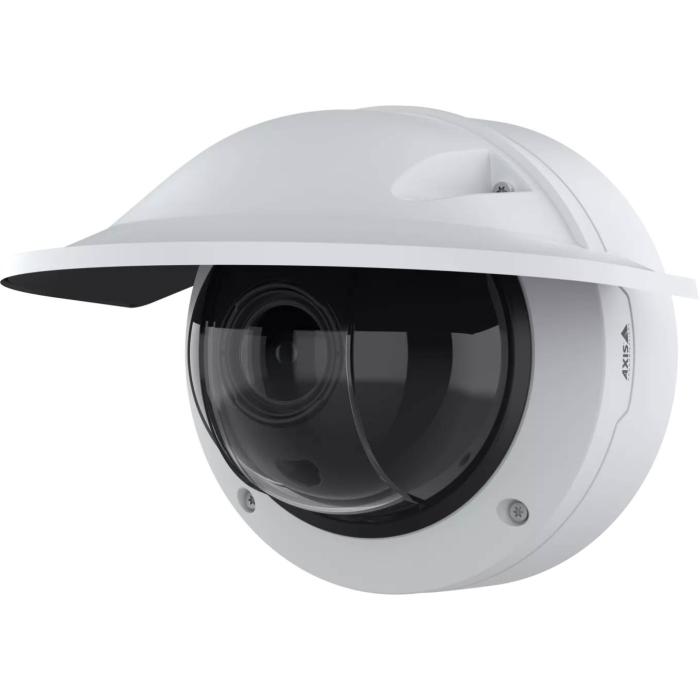

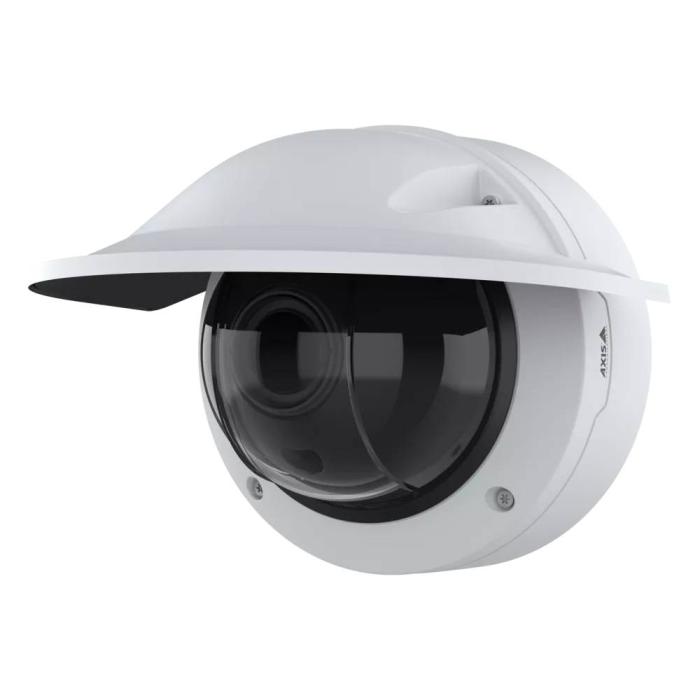

Name: Axis Q3546-LVE Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
Brand: AXIS
Price: 1396.69 EUR
Availability: InStock

Axis Q3546-LVE Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall

Brand: AXIS

1,396.69 €

1,117.36 € without VAT

Description

Specifications

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
PTZ control: Yes
Auto-tracking: Yes
Tour recording: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Yes
Housing material: Aluminium, Plastic
Protection features: Impact resistant, Vandal proof
International Protection (IP) code: IP66, IP6K9K
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.04 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 33°
Lens viewing angle, vertical: 18°
Tilt angle range: -42 - 89°
Pan range: -180 - 180°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/49500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 3.8x
Number of lenses: 1
Lens diameter: 5.1 cm
Focal length range: 13 - 51 mm
Auto focus: Yes
Maximum aperture number: 2.1
Minimum aperture number: 1.7
Detect distance (wide): 183 m
Detect distance (tele): 698 m
Observe distance (wide): 73 m
Observe distance (tele): 277 m
Recognize distance (wide): 37 m
Recognize distance (tele): 140 m
Identify distance (wide): 18 m
Identify distance (tele): 70 m
Closest focusing distance: 2.6 m

Night vision

Night vision: Yes
Night vision distance: 70 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1512 pixels
Total megapixels: 4 MP
Video formats supported: AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 1280 x 800 (WXGA), 2688 x 1512
Frame rate: 120 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Flip & mirror: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Audio system full duplex: Yes
Audio formats supported: AAC-LC, G.711, G.726, LPCM, OPUS, PCM
Signal-to-Noise Ratio (SNR): 55 dB
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), U
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8000 MB
RAM capacity: 4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Terminal block port: Yes

Security

Active tampering alarm: Yes
Security algorithms: 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Alert notification type: E-mail
Privacy protection: Yes
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Moving object
Human and vehicle targets classification: Yes
