Description
Specifications
Power
- Total power: 460 W
- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power Factor Correction (PFC) type: Active
- Max output current (+3.3V): 22 A
- Max output current (+12V1): 18 A
- Max output current (+12V2): 18 A
- Max output current (+5V): 16 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Hold time: 16 ms
- Power protection features: Over current, Over voltage, Overheating
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 2
- ATX Power connector (24-pin): Yes
- Cabling type: Non-Modular
Performance

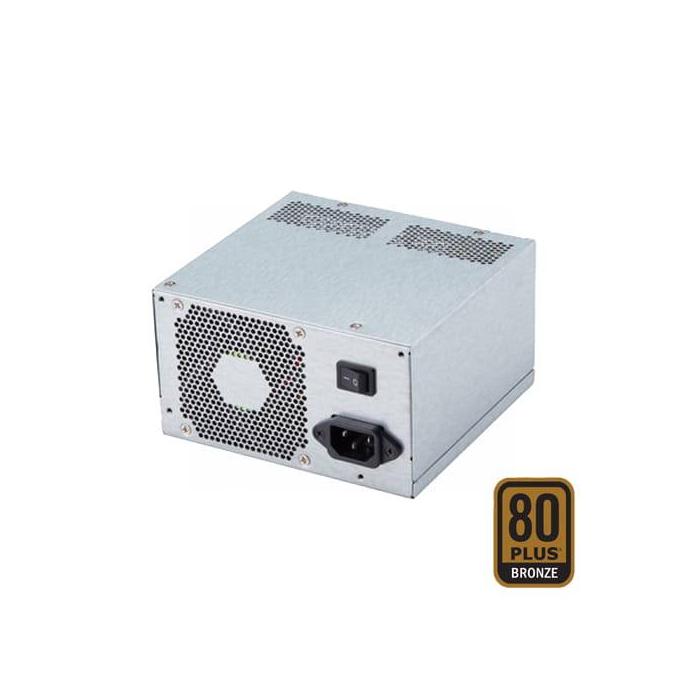

- 80 PLUS certification: 80 PLUS Bronze
- Purpose: NAS/storage server
- Power supply unit (PSU) form factor: ATX
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Grey
- Cooling type: Active
- Fan diameter: 8 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 80 °C
- Operating relative humidity (H-H): 0 - 85%
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: UL/cUL, CE, FCC, CCC, CB, EAC, TÜV EN 62368-1, UKCA
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
