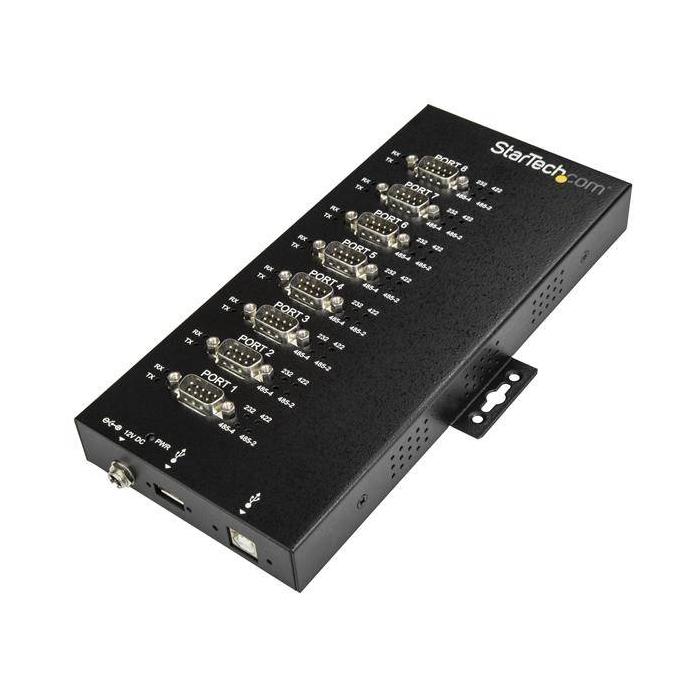

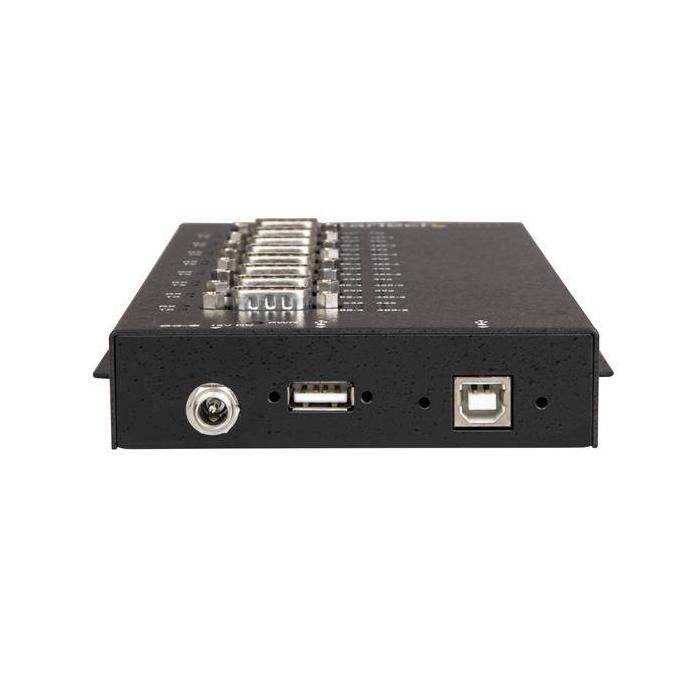

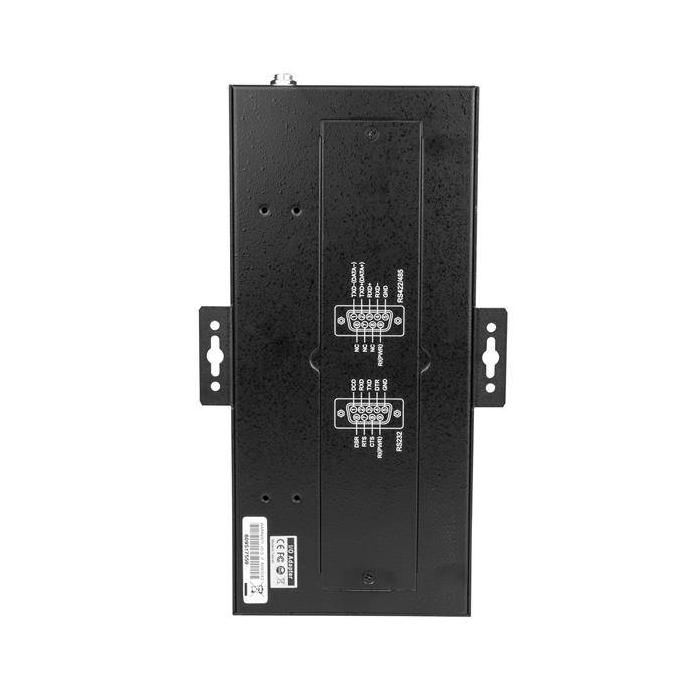

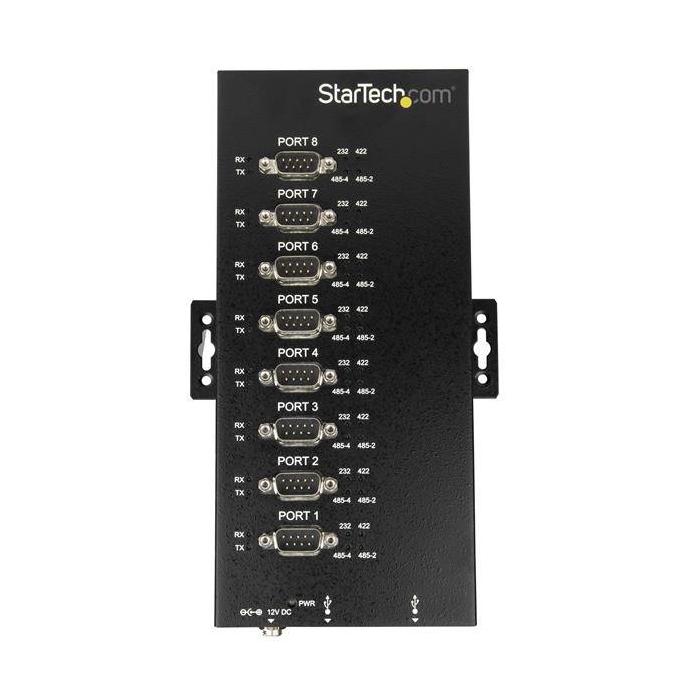

StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection
More info
Brand: STARTECH.COM
471.08 €
395.87 €
without VAT
Not avaliable for your address
SKU:
80669
PRC:
209590
EAN:
65030878579
PN:
ICUSB234858I
Description
Specifications
Ports & interfaces
- Host interface: USB 2.0
- Hub interfaces: Serial
- USB 2.0 ports quantity: 2
- Ports quantity: 8
- RS-232 ports: 8
Features
- Product colour: Black
- Housing material: Steel
- Surge protection: Yes
- LED indicators: Power
Power
- Power source type: AC
- Power consumption (typical): 36 W
- Input voltage: 100 - 240 V
- Input current: 1 A
- Output voltage: 12 V
- Output current: 3 A
- Power plug type: Type M
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
- Width: 128 mm
- Depth: 219 mm
- Height: 25 mm
- Weight: 688 g
Packaging data
- Package width: 190 mm
- Package depth: 290 mm
- Package height: 67 mm
- Package weight: 1.6 kg
Packaging content
- AC adapter included: Yes
- Included power plug types: ANZ, EU, UK, US
- Cables included: USB
- DIN rail kit included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -20 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
Performance
- Data bits: 7, 8
- Stop bits: 1, 2
- Parity bit: Even, Mark, No, Odd, Space
- Baud rate: 921.6 Kbit/s
Sustainability
- Sustainability compliance: Yes
Logistics data
- Master (outer) case width: 410 mm
- Master (outer) case length: 420 mm
- Master (outer) case height: 275 mm
- Products per master (outer) case: 14 pc(s)
- Harmonized System (HS) code: 84719000
Technical details
- Compliance certificates: CE, RoHS
Other features
- Chipset: FTDI - FT4232H, Genesys Logic - GL825
