Description

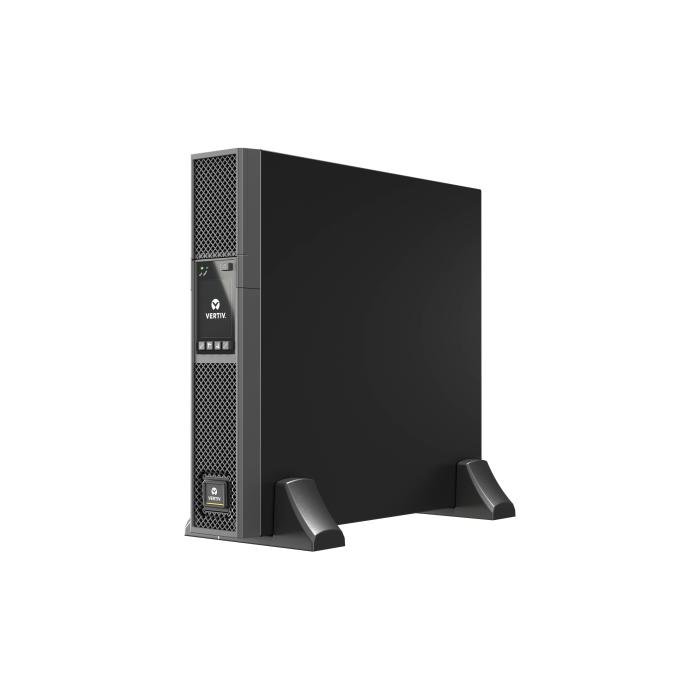

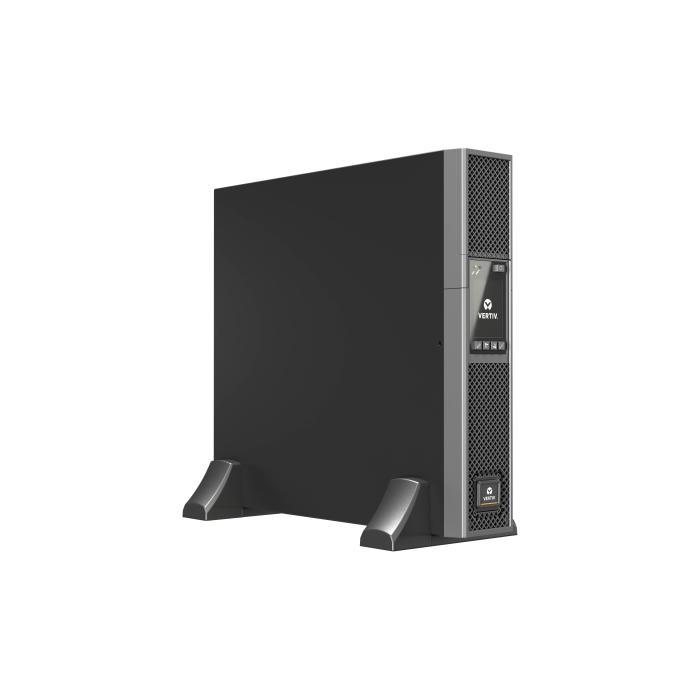

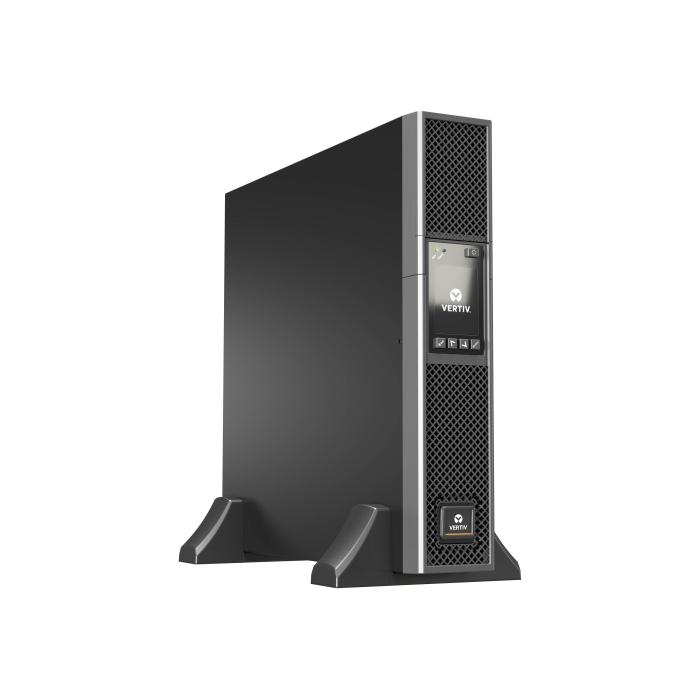

Vertiv Liebert GXT5, Double-conversion (Online), 3 kVA, 3000 W, Pure sine, 115 V, 288 V
Specifications
Features
- Response time: 0 ms
- Number of input phases: 1
- Number of output phases: 1
- Efficiency: 95%
- Efficiency (On-line mode): 95%
- Efficiency (ECO mode): 98%
- Input power factor: 0.99
- Emergency Power Off (EPO): Yes
- Noise level: 58 dB
- Power protection features: Overload
- Audible alarm(s): Yes
- UPS topology: Double-conversion (Online)
- Output power capacity: 3 kVA
- Output power: 3000 W
- Waveform: Pure sine
- Input operation voltage (min): 115 V
- Input operation voltage (max): 288 V
- Input frequency: 50/60 Hz
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Output voltage regulation: 3%

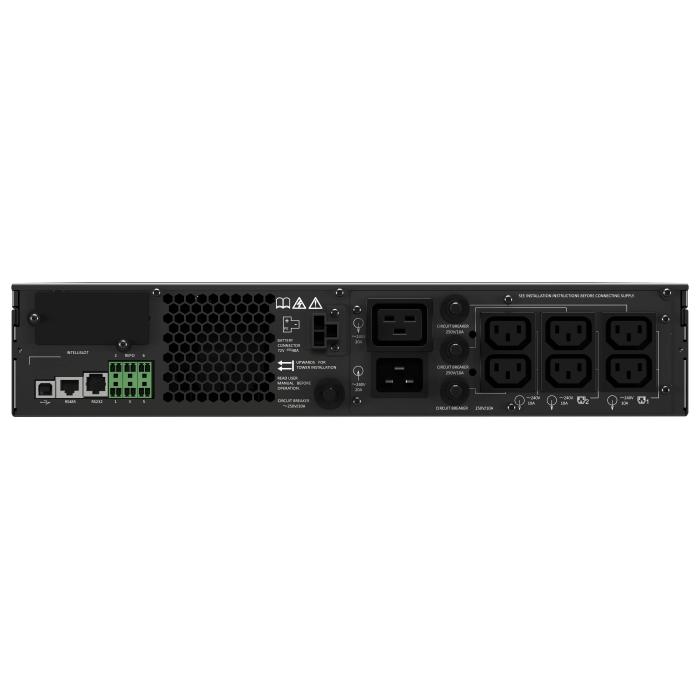

Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- AC outlets quantity: 7 AC outlet(s)
- USB port: Yes
- Serial interface type: RS-232, RS-485
- Serial ports quantity: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 9 VAh
- Battery voltage: 12 V
- Typical backup time at full load: 3 min
- Typical backup time at half load: 9 min
- Battery recharge time: 3 h
- Hot-swap battery: Yes
Design
- Form factor: Rackmount/Tower
- Product colour: Black
- Display type: LCD
- International Protection (IP) code: IP20
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
Certificates
- Compliance certificates: RoHS
- Certification: IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI)
Safety regulation & standards
- Safety: IEC62040-1:2008, GS; UL1778, c-UL
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 430 mm
- Depth: 540 mm
- Height: 85 mm
- Weight: 28.2 kg
Packaging data
- Package width: 517 mm
- Package depth: 617 mm
- Package height: 262 mm
- Package weight: 33 g
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Battery type: VRLA
- Output connections: IEC320 C13 & C19
- Input connection type: C20
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
- Non-operating relative humidity (non-condensing): 0 - 95%
- Overload protection: Yes
- Bypass: Yes
