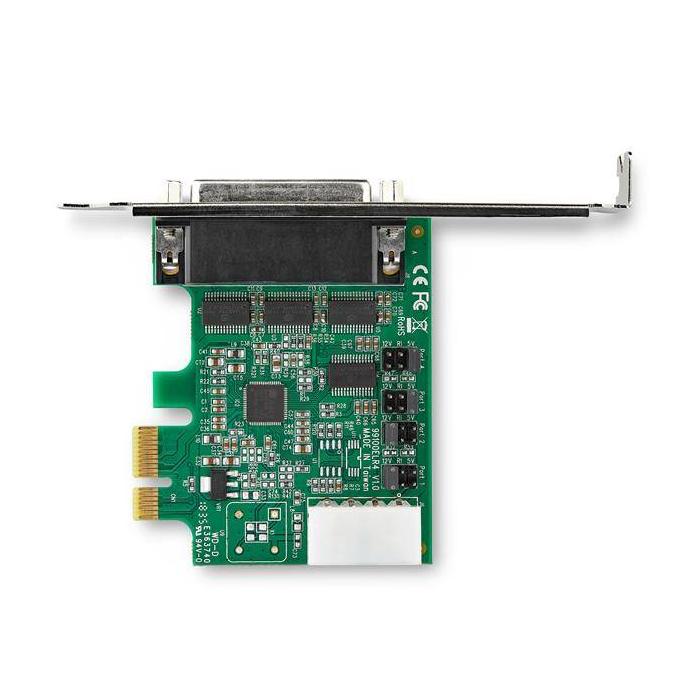

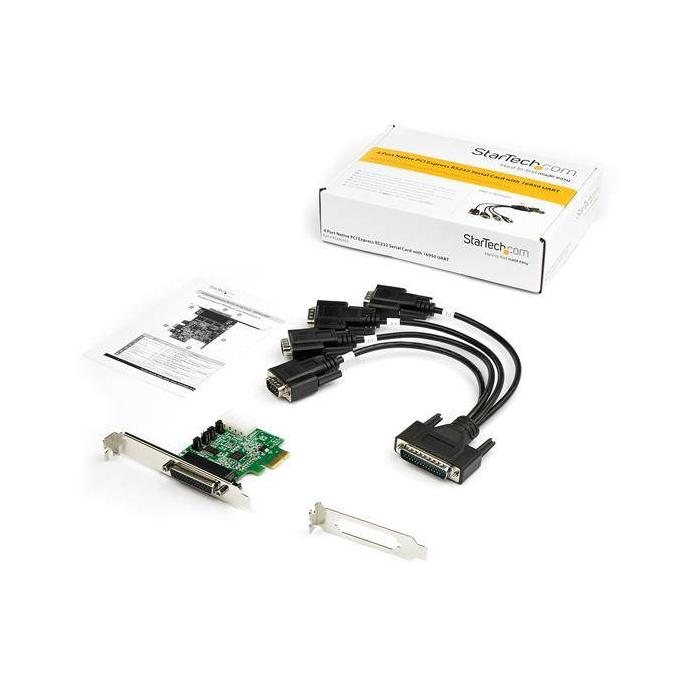

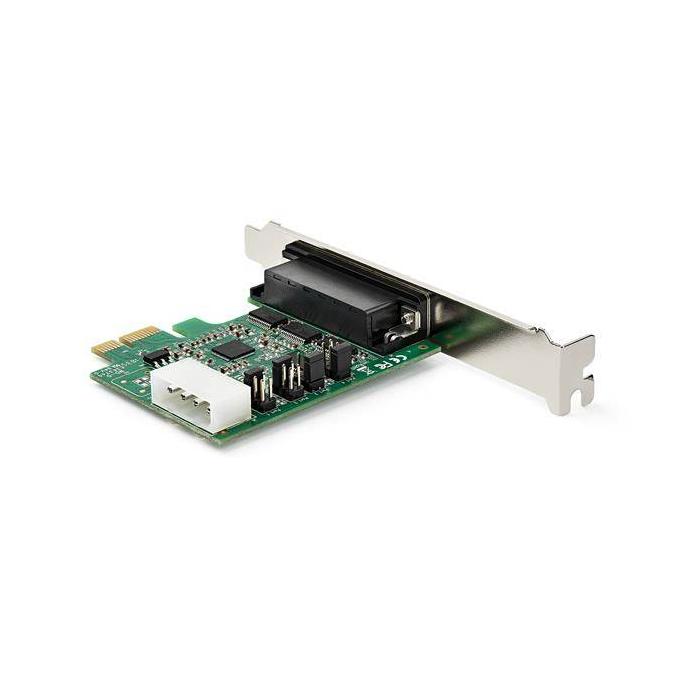

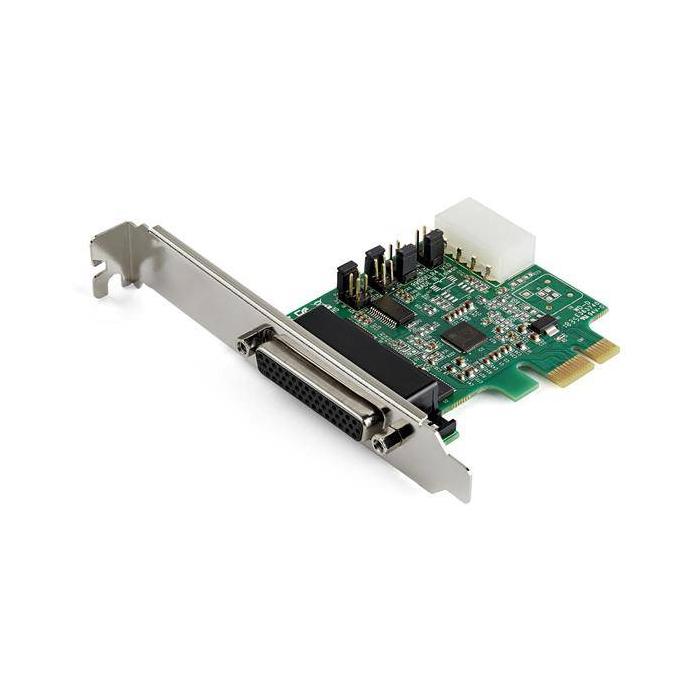

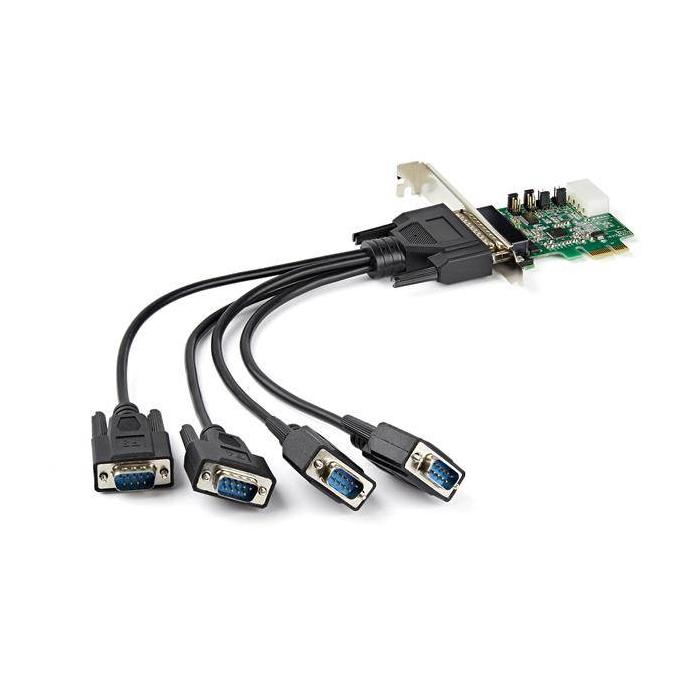

StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 Card - 16950 UART - Expansion Card - Windows/Linux
More info
Brand: STARTECH.COM
114.05 €
95.04 €
without VAT
Get it
on the
August 14
/
August 20
SKU:
84344
PRC:
283438
EAN:
65030888257
PN:
PEX4S953
Description
StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 Card - 16950 UART - Expansion Card - Windows/Linux, PCIe, Serial, Full-height / Low-profile, RS-232, Green, 214358 h
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: Serial
- Expansion card form factor: Full-height / Low-profile
- Serial ports quantity: 4
- Serial interface type: RS-232
Design
- Internal: Yes
- Product colour: Green
- Mean time between failures (MTBF): 214358 h
- Certification: CE, FCC, Microsoft WHQL
Features
- Chipset: Asix AX99100
- Baud rate: 921.6 Kbit/s
- FIFO (First In, First Out): 256 B
- Data bits: 5, 6, 7, 8, 9
- Stop bits: 1, 1.5, 2
- Parity bit: Even, Mark, No, Odd, Space
- Flow Control type: No, RTS/CTS, XON/XOFF
Operational conditions
- Operating temperature (T-T): -10 - 80 °C
- Storage temperature (T-T): -20 - 100 °C
- Operating relative humidity (H-H): 5 - 85%
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Technical details
- Compliance certificates: RoHS
Weight & dimensions
- Width: 63 mm
- Depth: 75 mm
- Height: 15 mm
- Weight: 50 g
Packaging data
- Quantity: 1
- Cables included: Serial
- Mounting brackets included: Yes
- Quick installation guide: Yes
- Package width: 150 mm
- Package depth: 210 mm
- Package height: 50 mm
- Package weight: 371 g
Logistics data
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 16 pc(s)
- Master (outer) case width: 340 mm
- Master (outer) case length: 480 mm
- Master (outer) case height: 240 mm
