Display


  • Panel type: ADS
  • Display diagonal: 33 cm (13")
  • Display technology: LCD
  • Display resolution: 1920 x 1080 pixels
  • Display brightness: 500 cd/m²
  • HD type: Full HD
  • Touchscreen: Yes
  • Touchscreen technology: Capacitive
  • Response time: 30 ms
  • Contrast ratio (typical): 600:1
  • Contrast ratio (dynamic): 10000:1
  • Viewing angle, horizontal: 170°
  • Viewing angle, vertical: 170°
  • Pixel pitch: 0.153 x 0.153 mm
  • Display diagonal (metric): 33 cm
  • Horizontal scan range: 30 - 81 kHz
  • Vertical scan range: 48 - 75 Hz
  • Haze rate: 25%
  • Pixel frequency (max): 148.5 MHz

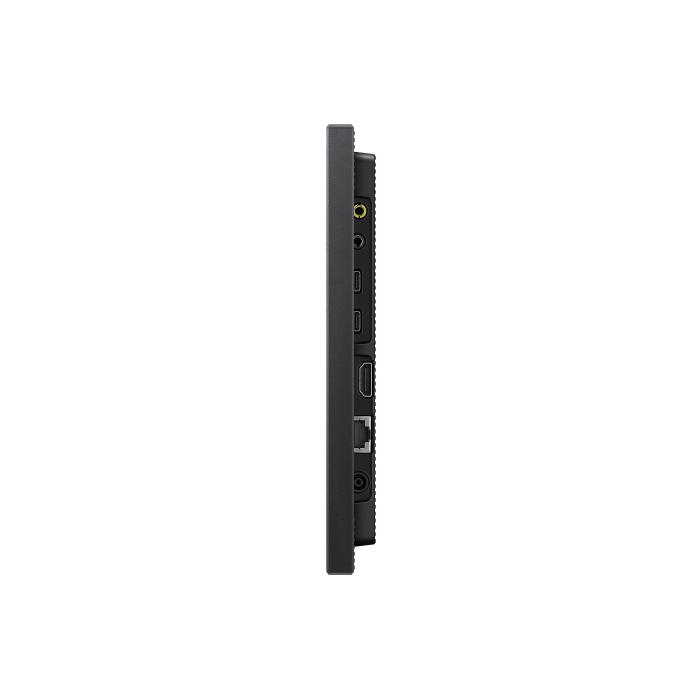

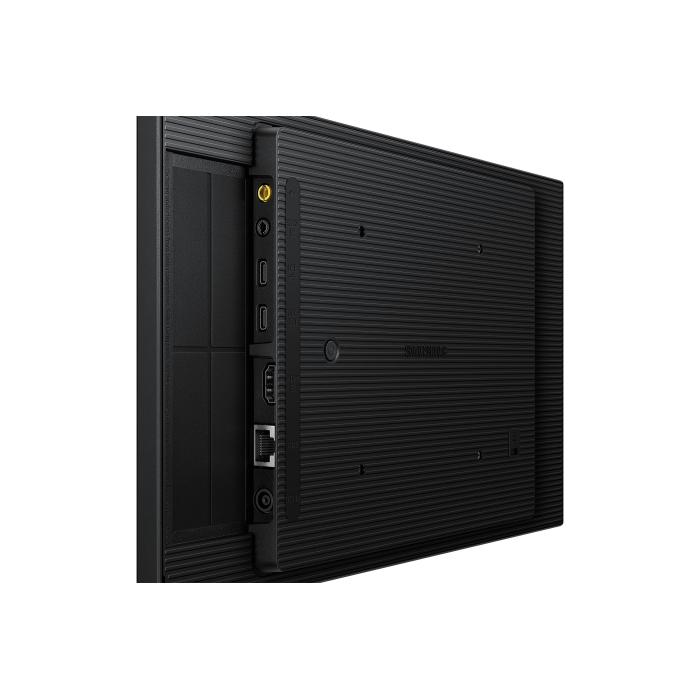

Ports & interfaces


  • HDMI ports quantity: 1
  • HDMI version: 1.4
  • DVI port: No
  • USB port: Yes
  • USB ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 1
  • RS-232 interface: Yes

Audio


  • Built-in speaker(s): No

Design


  • Product design: Digital signage flat panel
  • Placement supported: Indoor
  • Product colour: Black

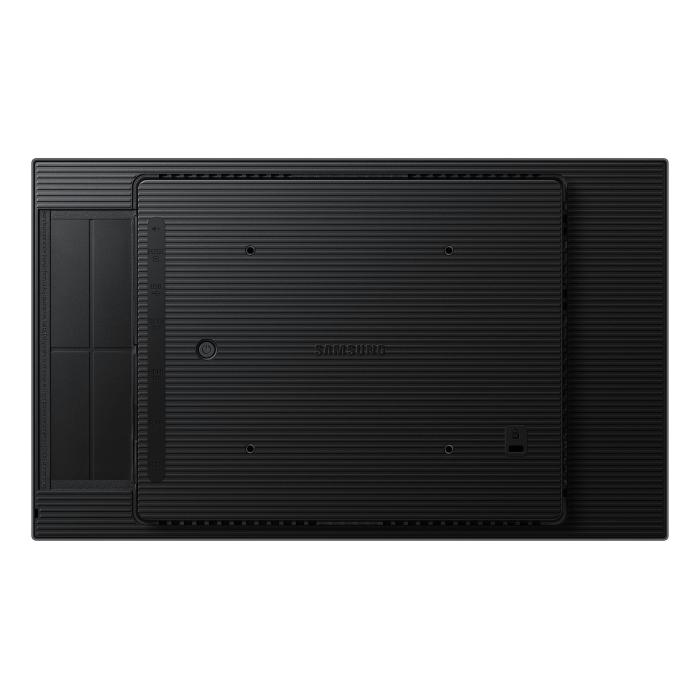

  • VESA mounting: Yes
  • Panel mounting interface: 100 x 100 mm

Performance


  • Purpose: Retail
  • TV tuner integrated: No
  • Operating hours (hours/days): 16/7
  • HDCP: Yes
  • HDCP version: 2.2

Power


  • Power consumption (standby): 0.5 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz

Computer system


  • Internal storage capacity: 8 GB
  • Operating system installed: Tizen 7.0

Weight & dimensions


  • Display width: 322 mm
  • Display depth: 22 mm
  • Display height: 193.5 mm
  • Display weight: 1.1 kg

Packaging data


  • Package width: 520 mm
  • Package depth: 238 mm
  • Package height: 64 mm
  • Package weight: 2 kg

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Operating relative humidity (H-H): 10 - 80%

Network


  • Ethernet LAN: Yes
  • Wi-Fi: Yes

Technical details


  • Compliance certificates: Electromagnetic Compatibility (EMC)

Other features


  • Audio output: 1
  • Bluetooth: Yes
  • RS-232 input ports: 1
