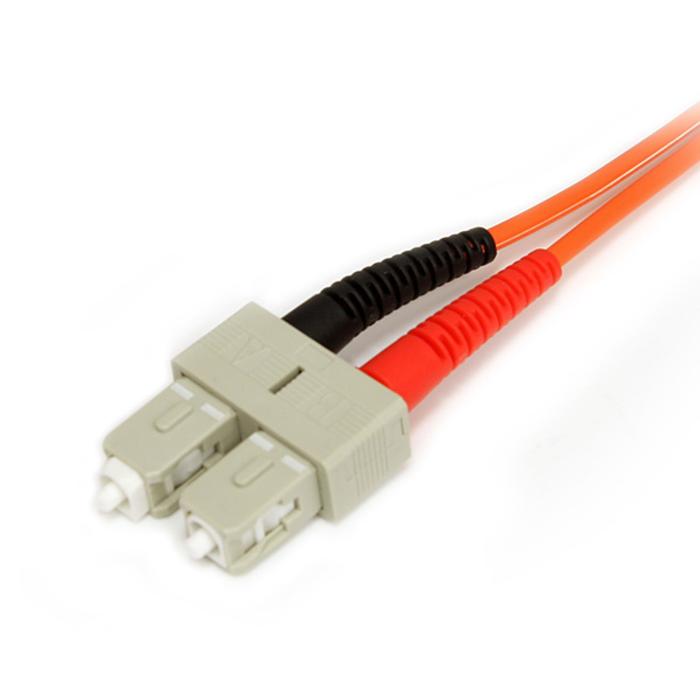

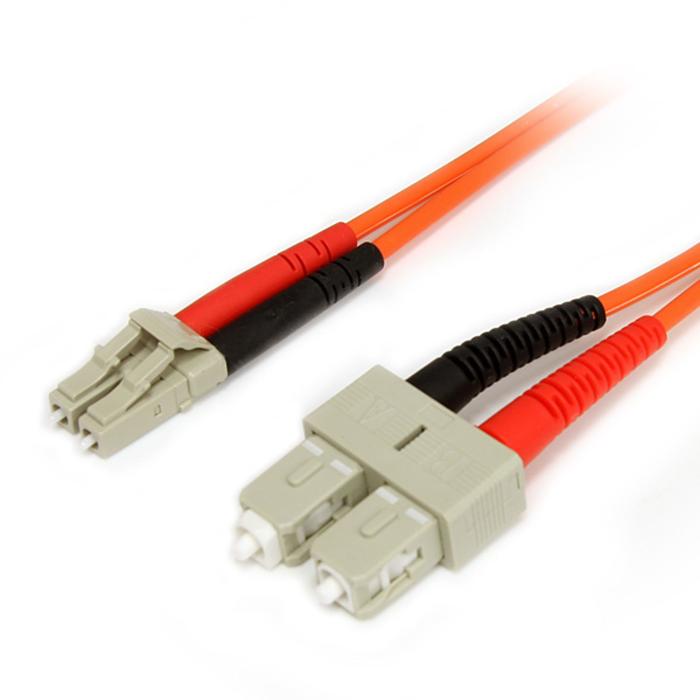

StarTech.com 1m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/SC
More info
Brand: STARTECH.COM
15.55 €
12.96 €
without VAT
Stock available: 12 units.
Get it
on the
September 24
/
September 25
SKU:
72972
PRC:
46223
EAN:
650307977644
PN:
FIBLCSC1
Description
The StarTech.com network adapter cable is an OM1 multimode fibre optic solution with male LC and male SC connectors, designed to link equipment and patch panels in network installations. Its duplex, full bidirectional construction allows simultaneous data transmission in both directions, which is common in fibre links between switches and hubs. The 1 m cable offers just the right length for short connections within a rack or communications cabinet. The fibre has a core diameter of 62.5 µm and a cladding diameter of 125 µm, typical values for OM1 multimode fibre. The jacket is made of halogen-free material (LSZH), a frequent choice in enclosed spaces where reduced fire behaviour is prioritised. The assembly weighs 26 g and comes in orange, the colour usually associated with this type of multimode fibre.
Specifications
Features
- Cable length: 1 m
- Fibre optic type: OM1
- Connector 1: LC
- Connector 2: SC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Orange
- Full duplex: Yes
- Core diameter: 62.5 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Multi-mode
- Jacket material: Low smoke zero halogen (LSZH)
Certificates
- Compliance certificates: CE, RoHS
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Weight: 26 g
Packaging data
- Package width: 200 mm
- Package depth: 220 mm
- Package height: 26 mm
- Package weight: 35 g
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case width: 340 mm
- Harmonized System (HS) code: 85447000
- Master (outer) case length: 245 mm
- Master (outer) case height: 317 mm
- Products per master (outer) case: 320 pc(s)
