Description

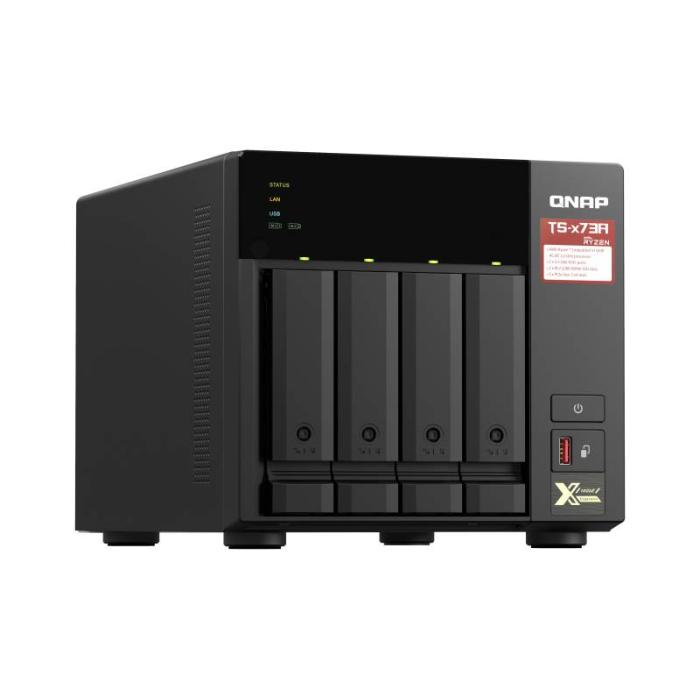

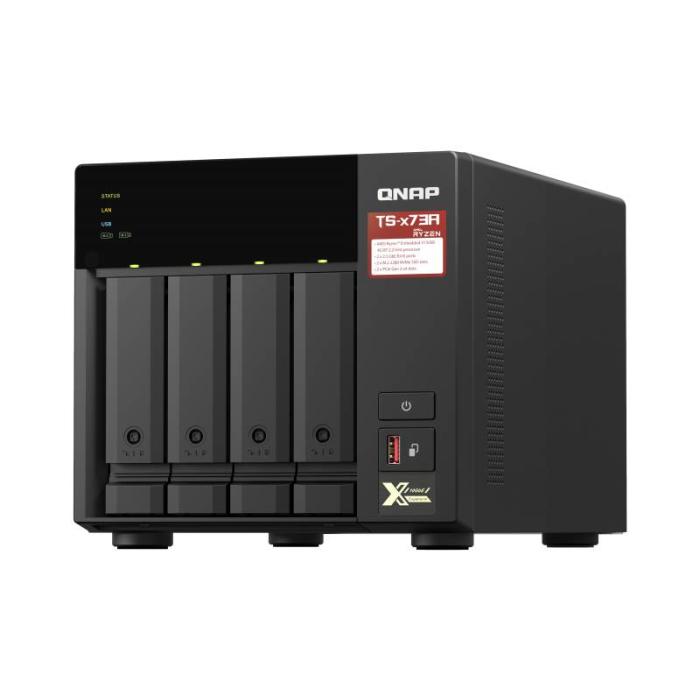

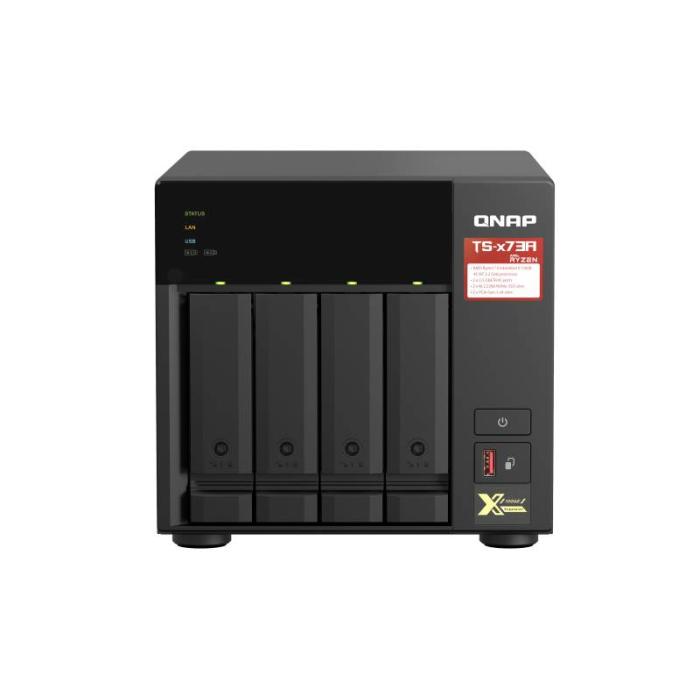

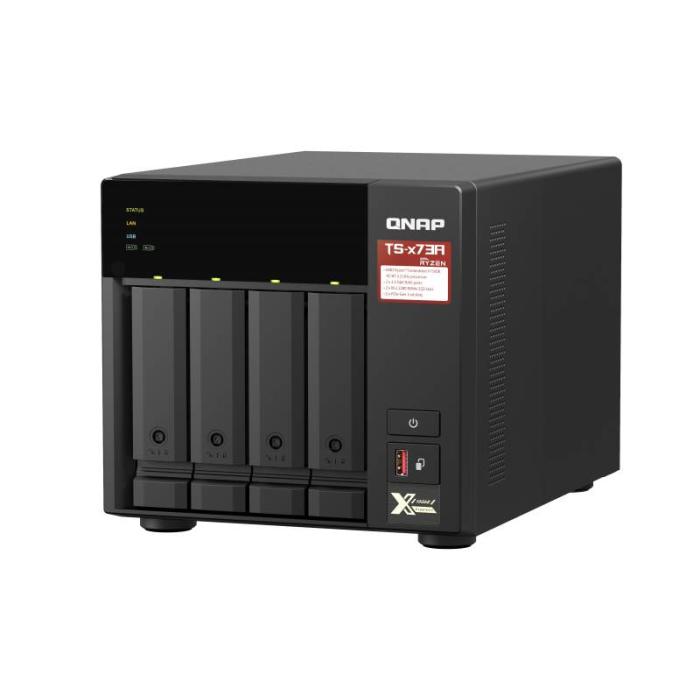

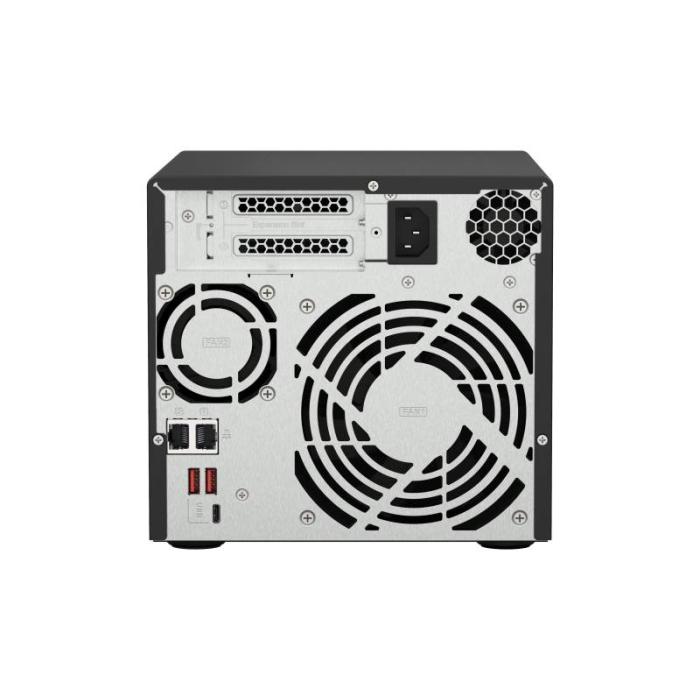

QNAP TS-473A, NAS, Tower, Ryzen Embedded, V1500B, 8 GB, DDR4
Specifications
Storage
- Storage drive capacity: 0 GB
- Storage drive interface: Serial ATA III
- Supported storage drive interfaces: M.2, Serial ATA, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5, M.2
- Number of system drives installed: 1
- System drive capacity: 5 GB
- Number of M.2 (M & B) slots: 2
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Online RAID migration: Yes
- Online RAID expansion: Yes
- RAID rebuild: Yes
- Hot-swap drive bays: Yes
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 4
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: AMD
- Processor generation: AMD Ryzen Embedded V1000 Series
- Processor family: Ryzen Embedded
- Processor model: V1500B
- Processor frequency: 2.2 GHz
- Processor cores: 4
- Processor threads: 8
- On-board graphics card model: Not available
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4
- Maximum RAM supported: 64 GB
- Memory slots: 2
- Memory form factor: SO-DIMM
- ECC: Yes
- Flash memory: 5000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 100, 1000, 2500 Mbit/s
- DHCP server: Yes
- Jumbo frames support: Yes
- Wake-on-LAN ready: Yes
- Dynamic DNS (DDNS): Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- Ethernet LAN (RJ-45) ports: 2
- Concurrent connections: 2000
- PCI Express x4 (Gen 3.x) slots: 2
Design
- Chassis type: Tower
- Cooling type: Active
- Product colour: Black
- Number of fans: 2 fan(s)
- Fan diameter: 12 cm
- Fan diameter 2: 6 cm
- Drive bay locking: Yes
- LED indicators: LAN, Power, SSD, Status, USB
Performance
- Type: NAS
- Device class: Small & Medium Business
- Backup function: Yes
- Backup features: Cloud, USB drive, iSCSI LUN
- Buzzer: Yes
- Noise level: 21.4 dB
- Security algorithms: 256-bit AES, FIPS 140-2, SSH, SSL/TLS
- Reset button: Yes
- On/off switch: Yes
- Built-in FTP server: Yes
- Browser supported: Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
- Password authentication: Yes
- Disk scan: Yes
- S.M.A.R.T. support: Yes
- Remotely operated: Yes
Software
- Operating system installed: QNAP Turbo System
- Windows operating systems supported: Windows 10, Windows 7, Windows 8
- Linux operating systems supported: Yes
- Mac operating systems supported: Mac OS X 10.10 Yosemite
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 250 W
- Number of power supply units: 1
- Power consumption (typical): 29.792 W
- Power consumption (HDD standby): 19.576 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50-60 Hz
- Output current: 3.5 A
Weight & dimensions
- Width: 199.3 mm
- Depth: 280.8 mm
- Height: 188.2 mm
- Weight: 5.03 kg
Packaging content
- Cables included: AC, LAN (RJ-45)
- Power cables quantity: 1
- Number of screws: 24
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
Logistics data
- Harmonized System (HS) code: 84714100
