Description
Specifications
Storage
- Supported storage drive interfaces: M.2, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5, M.2
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Online RAID migration: Yes
- Online RAID expansion: Yes
- RAID rebuild: Yes
- Hot-swap drive bays: Yes
- Supported file systems: FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 4
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
- Auto-rebuild: Yes
- Bad block scan: Yes
- Disk roaming: Yes
Processor
- Processor manufacturer: Marvell
- Processor family: Marvell
- Processor model: CN9131
- Processor frequency: 2.2 GHz
- Processor cores: 4
Memory
- Internal memory: 4 GB
- Internal memory type: DDR4
- Maximum RAM supported: 32 GB
- Memory slots: 1
- Memory form factor: SO-DIMM
- Flash memory: 4000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 100, 1000, 2500, 10000 Mbit/s
- DHCP client: Yes
- DHCP server: Yes
- Jumbo frames support: Yes
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Link aggregation: Yes
- Load balancing system: Yes
- Dynamic DNS (DDNS): Yes

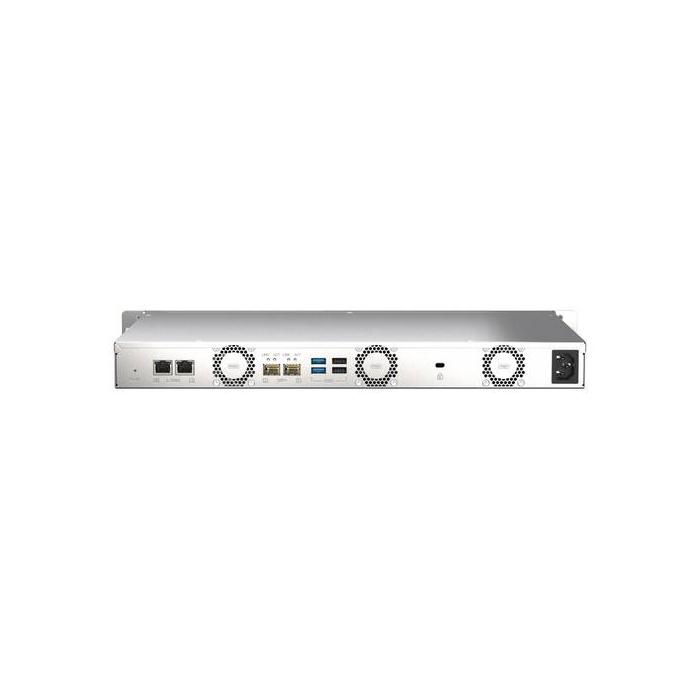

Ports & interfaces
- USB port: Yes
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Fiber ports quantity: 2
- Fiber optic connector: SFP+
- Ethernet LAN (RJ-45) ports: 2
- Concurrent connections: 1500
Design
- Chassis type: Rack (1U)
- Cooling type: Active
- Product colour: Black, Grey
- Number of fans: 3 fan(s)
- Fan diameter: 4 cm
- LED indicators: Yes
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Performance
- Type: NAS
- Device class: Small & Medium Business
- Backup function: Yes
- Backup features: Cloud, iSCSI LUN
- Buzzer: Yes
- Multilingual support: Yes
- Snapshot: Yes
- Access Control List (ACL): Yes
- Reset button: Yes
- On/off switch: Yes
- Built-in FTP server: Yes
- Browser supported: Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox, Microsoft Edge
- System log: Yes
- Hot spare: Yes
- Disk scan: Yes
- S.M.A.R.T. support: Yes
- Share folder: Yes
- Remotely operated: Yes
- Universal Plug and Play (UPnP): Yes
Software
- Operating system installed: QNAP QTS
- Operating system version: 5.0.0
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Mac operating systems supported: Yes
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 100 W
- Number of power supply units: 1
- Power consumption (typical): 30.878 W
- Power consumption (HDD standby): 17.367 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Fan voltage: 12 V
Weight & dimensions
- Width: 430 mm
- Depth: 292.1 mm
- Height: 43.3 mm
- Weight: 4.17 kg
Packaging content
- Cables included: AC, LAN (RJ-45)
- Power cables quantity: 1
- Rack mount kit: Yes
- Number of screws: 28
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 70 °C
Logistics data
- Harmonized System (HS) code: 84714100
