Description

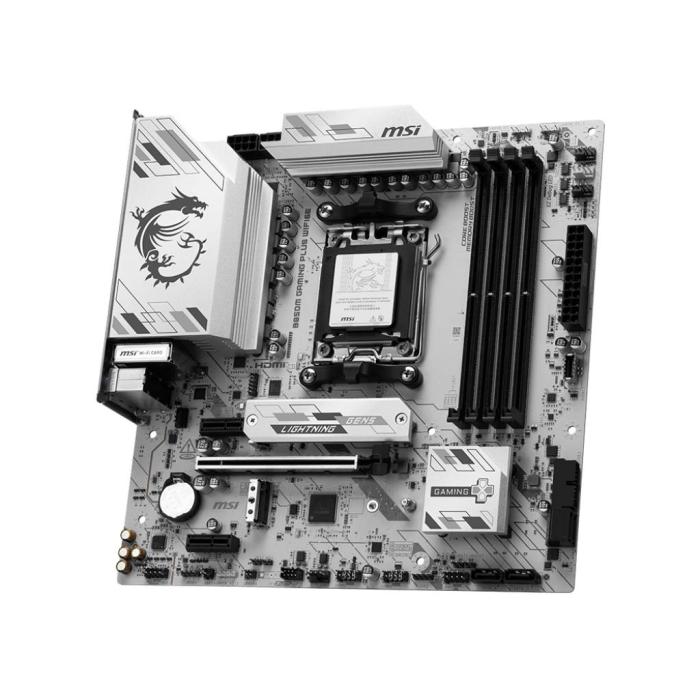

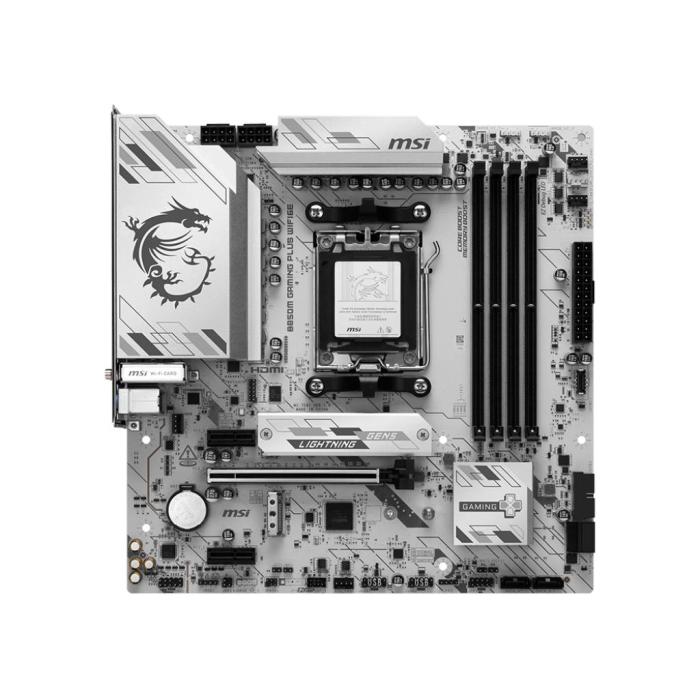

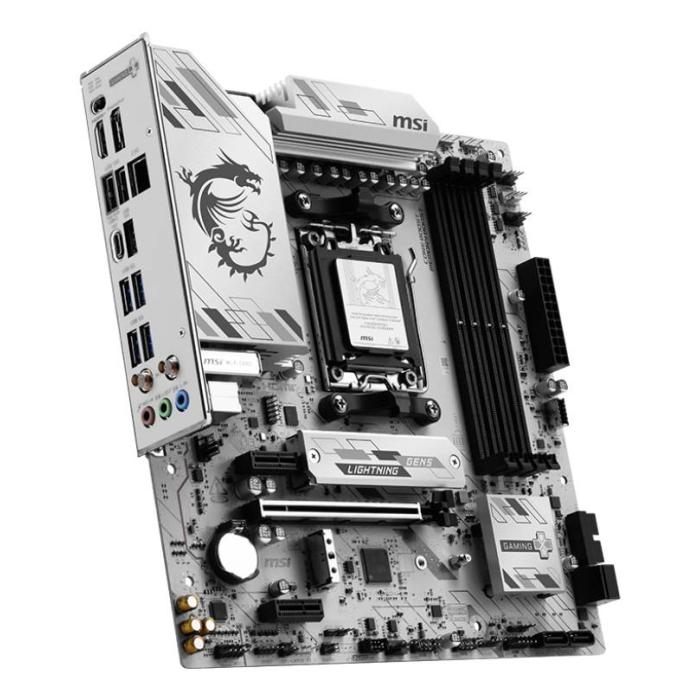

The MSI B850M GAMING PLUS WIFI6E motherboard is a micro ATX model with AM5 socket and black colour, designed to mount AMD Ryzen 7000, 8000 and 9000 series processors. Its AM5 socket offers compatibility with AMD's most recent desktop platforms, so you can upgrade the CPU without changing the motherboard. It has four DIMM slots for DDR5-SDRAM memory, with dual channel support and a maximum capacity of 256 GB. Supported clock speeds reach up to 8200 MHz, including 4800, 6000 and 6400 MHz, so you can choose modules suited to your budget. The storage system relies on M.2 interfaces and supports both HDD and SSD, with RAID levels 0, 1 and 10 and up to four hard drives and seven compatible storage drives. The configuration is Non-ECC, the usual for home and gaming computers. With this setup you build a solid foundation for a compact high-performance tower.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 6000, 6400, 8200 MHz
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory: 256 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of water pump connectors: 1
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3

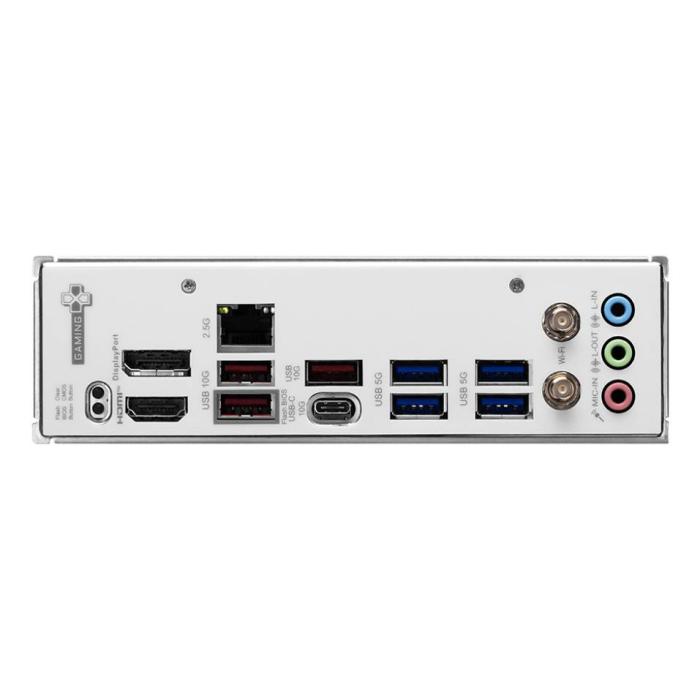

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
Network
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
- Ethernet LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- LAN controller: Realtek RTL8126
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Features
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11 x64
Expansion slots
- PCI Express x4 slots: 1
- PCI Express x16 slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 5.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 6.5
- System management BIOS (SMBIOS) version: 3.7
Weight & dimensions
- Width: 243.8 mm
- Depth: 243.8 mm
