Description

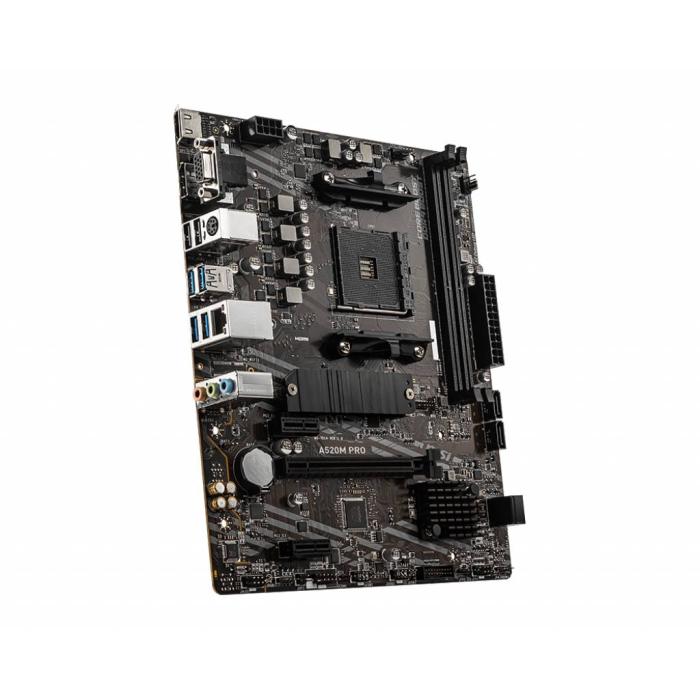

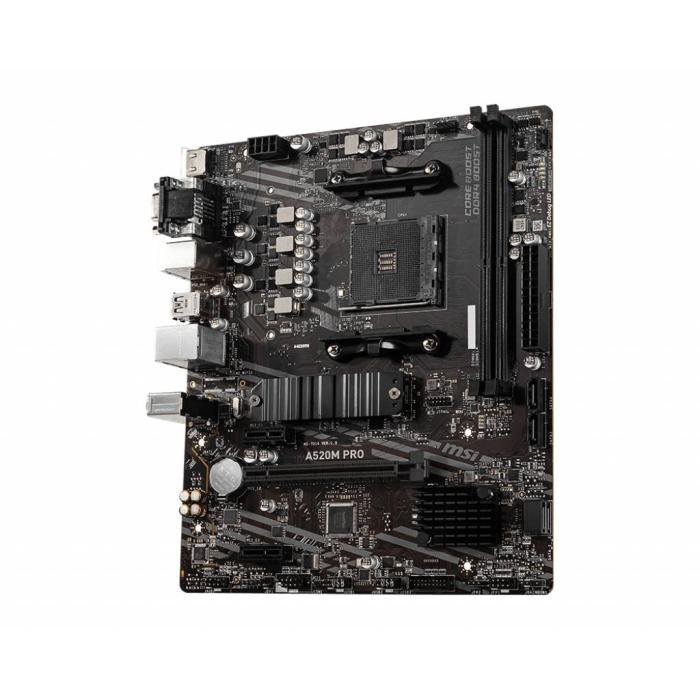

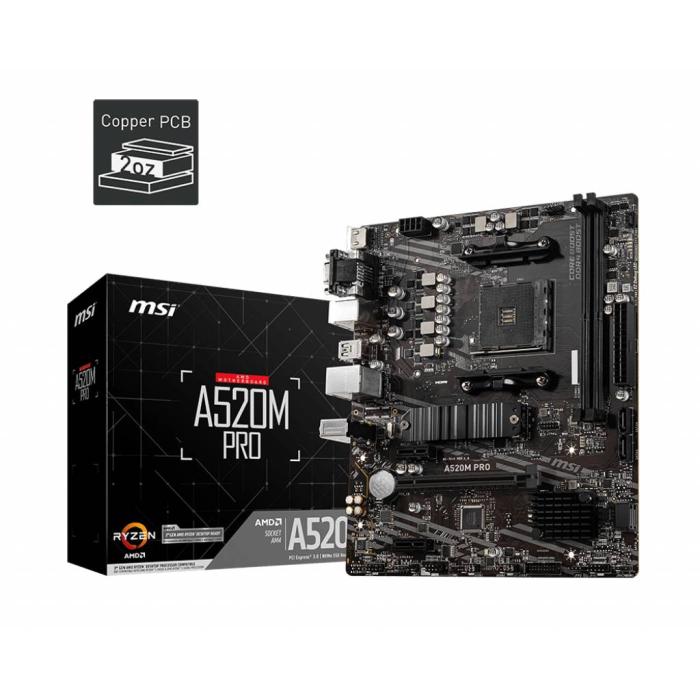

MSI A520M PRO, AMD, Socket AM4, AMD Ryzen 3000 Series, DDR4-SDRAM, 64 GB, DIMM
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: No
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: PCI Express 3.0, SATA
- RAID levels: 0, 1, 10
Graphics
- Maximum resolution: 4096 x 2160 pixels
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- Chassis intrusion connector: Yes

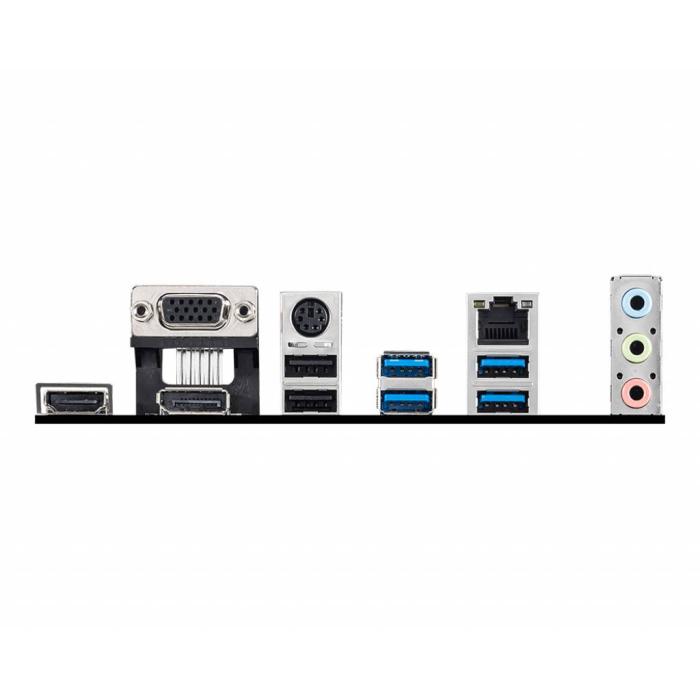

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek 8111H
- Wi-Fi: No
Features
- Motherboard chipset: AMD A520
- Audio chip: Realtek ALC892
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Power source type: ATX
- Number of mounting holes: 6
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 slots: 1
- Number of M.2 (M) slots: 1
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 244 mm
- Depth: 210 mm
- Height: 65 mm
Other features
- Weight: 698 g
