Description

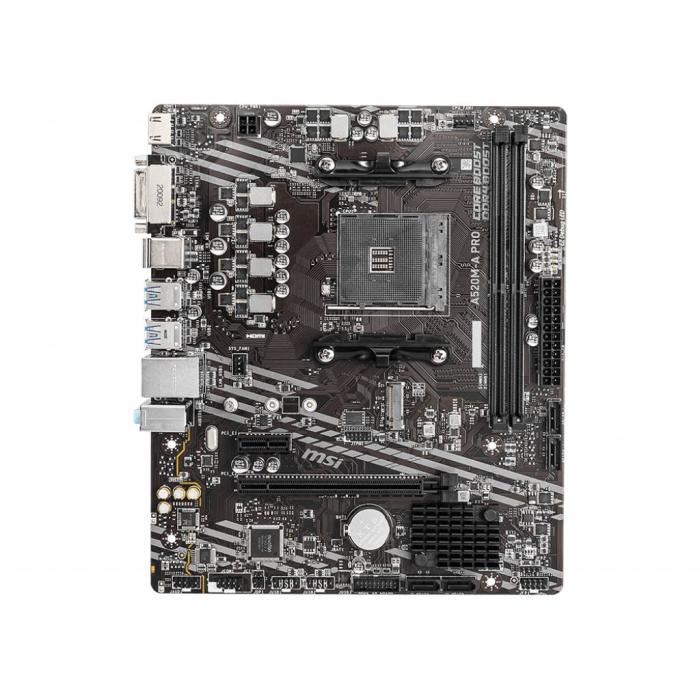

The MSI A520M-A PRO motherboard is a micro ATX model with an AM4 socket and black colour. It is designed for AMD Ryzen 3000 Series processors and supports a single processor. It incorporates two DIMM DDR4-SDRAM slots with dual channel support and a maximum capacity of 64 GB, with ECC and non-ECC compatibility and unbuffered memory. Supported memory clock speeds include 1866, 2133, 2400, 2667, 2800 and 2933. For storage it offers PCI Express 3.0 and SATA interfaces, compatible with RAID at levels 0, 1 and 10, and supports both HDD and SSD. The integrated graphics reach a maximum resolution of 4096 x 2160 pixels. Its dimensions are 236 x 60 x 200 mm (width x height x depth) and its weight is 698 g.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: PCI Express 3.0, SATA
- Number of HDDs supported: 5
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- On-board graphics card: No
- Maximum resolution: 4096 x 2160 pixels
- Number of displays supported: 2
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- Chassis intrusion connector: Yes
Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DVI-D ports quantity: 1
- Headphone outputs: 1
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: No
Features
- Motherboard chipset: AMD A520
- Audio chip: Realtek ALC892
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Number of mounting holes: 8
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 236 mm
- Depth: 200 mm
- Height: 60 mm
Other features
- Weight: 698 g
