Description

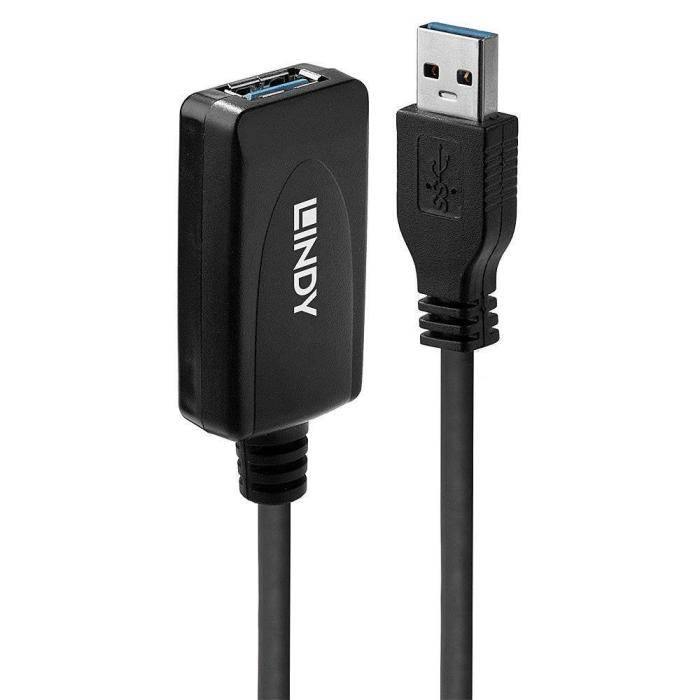

5m LINDY USB cable with USB A male and female connectors in black, designed to extend or connect devices with a maximum transfer rate of 5 Gbit/s. Its tinned copper conductor and gold-plated contacts ensure stable transmission, with nominal attenuation of 1.5 dB at 0.1 GHz and 25 dB at 7.5 GHz, ideal for medium distances. The PVC outer sheath and AWG 28/24 gauge protect the internal twisted pair, maintaining a round form factor and straight connectors. Works as a USB 3.2 Gen 1 (3.1 Gen 1) extension, offering a maximum speed of 5000 Mbit/s with no appreciable loss over long links.
Specifications
Features
- USB version: USB 3.2 Gen 1 (3.1 Gen 1)
- Connector 1: USB A
- Connector 2: USB A
- Connector 1 gender: Male
- Connector 2 gender: Female
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- AWG wire size: 28/24
- Connector material: Gold
- Contact material: Brass
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
- Conductor material: Tinned copper
- Connector shielding: Yes
- Connector shield material: Aluminium
- Connector housing material: Plastic
- Maximum data transfer rate: 5 Gbit/s
- Product colour: Black
- Cable type: Round cable
- Transmission medium: Twisted pair
- Nominal attenuation: 1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz
Weight & dimensions
- Cable length: 5 m
- Cable diameter: 5.5 mm
- Weight: 220 g
- Bend radius (min): 5.5 cm
- Connector 1 dimensions (WxDxH): 16 x 48 x 6 mm
- Connector 2 dimensions (WxDxH): 24 x 46 x 12 mm
Packaging data
- Package width: 237 mm
- Package depth: 60 mm
- Package height: 138 mm
- Package weight: 289 g
- Package type: Blister
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): 0 - 70 °C
Certificates
- Certification: CE, UKCA, FCC, RoHS, REACH
Logistics data
- Harmonized System (HS) code: 84733080
