Description

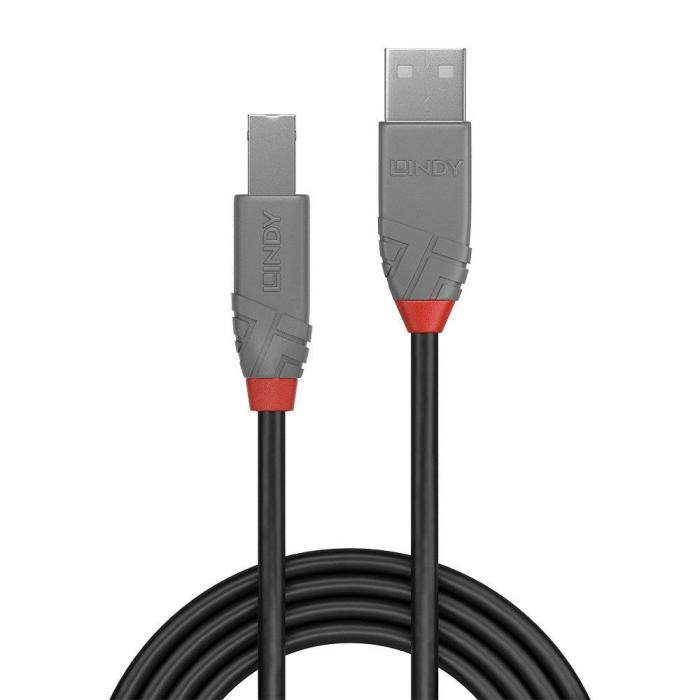

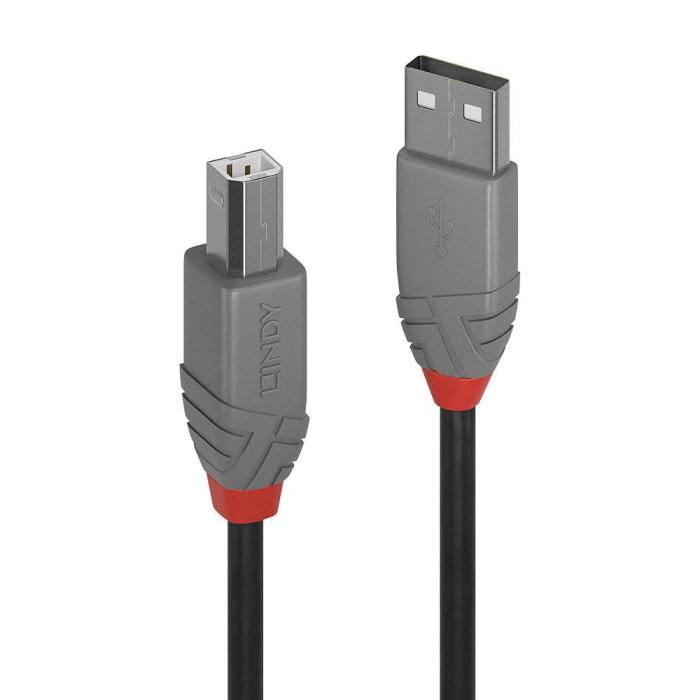

The LINDY USB cable, reference 36677, connects devices with a USB A and USB B port thanks to its two straight type male connectors. It is a 10 m round cable with USB 2.0 version that reaches a maximum data transfer speed of 480 Mbit/s, equivalent to 0.48 Gbit/s. The conductor is tinned copper with AWG 28/24 gauge, and the outer sheath is polyvinyl chloride, as is the coating of the connectors, while the connector material is nickel with gold-plated contacts. Its nominal attenuation is 5.8 dB per kilometre. It is available in black and grey and red, a combination that makes it easy to distinguish it from other cables. It is suitable for connecting printers, scanners and similar peripherals to a computer or hub.
Specifications
Features
- USB version: USB 2.0
- Connector 1: USB A
- Connector 2: USB B
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- AWG wire size: 28/24
- Connector material: Nickel
- Contact material: Copper
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
- Conductor material: Tinned copper
- Connector shielding: Yes
- Connector shield material: Aluminium
- Connector housing material: Polyvinyl chloride (PVC)
- Maximum data transfer rate: 0.48 Gbit/s
- Product colour: Black, Grey, Red
- Cable type: Round cable
- Nominal attenuation: 5.8db/km
Weight & dimensions
- Connector 2 dimensions (WxDxH): 11.8 x 35 x 10.2 mm
- Cable length: 10 m
- Cable diameter: 5 mm
- Bend radius (min): 1.6 cm
- Connector 1 dimensions (WxDxH): 15.5 x 35 x 7.8 mm
Packaging data
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): 0 - 60 °C
Certificates
- Certification: RoHS, REACH, UL
Logistics data
- Harmonized System (HS) code: 84733080
