Description

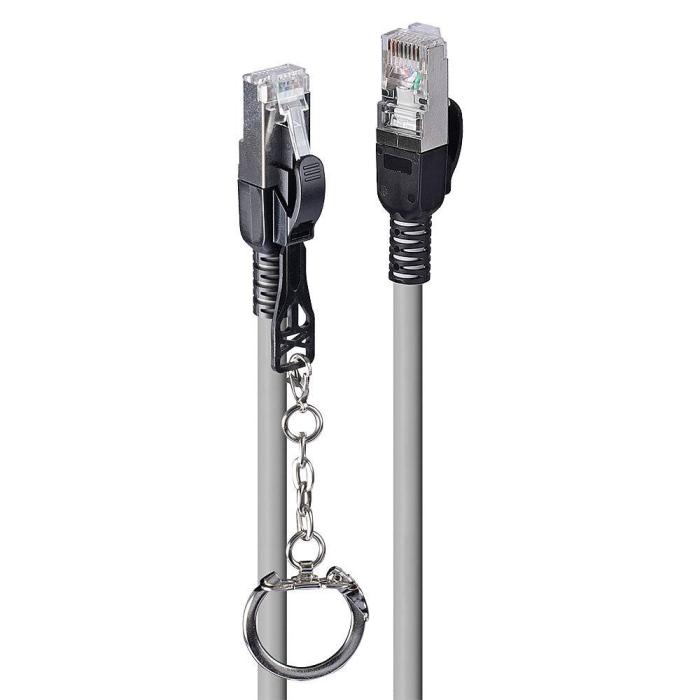

Lindy 47603 network cable, grey, 1.5 m long, designed for demanding Ethernet links. Its Cat6a construction with S/FTP (S-STP) shielding combines copper conductors and a halogen-free jacket, suitable for installations where fire reaction is a concern. It features straight male RJ-45 connectors at both ends, with nickel-plated contacts, and the connector shielding is aluminium, which reinforces shielding continuity. It supports a frequency of 500 MHz, with a nominal attenuation of 49.3dB/100m at that same frequency, so it maintains signal integrity over short high-speed runs. The minimum bend radius of 7.2 cm helps plan the routing without forcing the cable into tight bends. It is a practical solution for connecting network equipment, outlets or rack patch panels, both in the office and in home installations.
Specifications
Features
- Product colour: Grey
- Cable length: 1.5 m
- Cable standard: Cat6a
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Nickel
- Connector shielding: Yes
- Connector shield material: Aluminium
- Jacket material: Low smoke zero halogen (LSZH)
- Conductor material: Copper
- AWG wire size: 26
- Frequency: 500 MHz
- Bend radius (min): 7.2 cm
- Nominal attenuation: 49.3dB/100m @ 500MHz
Operational conditions
- Operating temperature (T-T): -10 - 60 °C
- Storage temperature (T-T): -10 - 60 °C
Certificates
- Certification: RoHS, REACH, UL
Weight & dimensions
- Connector 1 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm
- Connector 2 dimensions (WxDxH): 11.6 x 21.5 x 8.5 mm
Packaging data
- Package type: Polybag
