Description

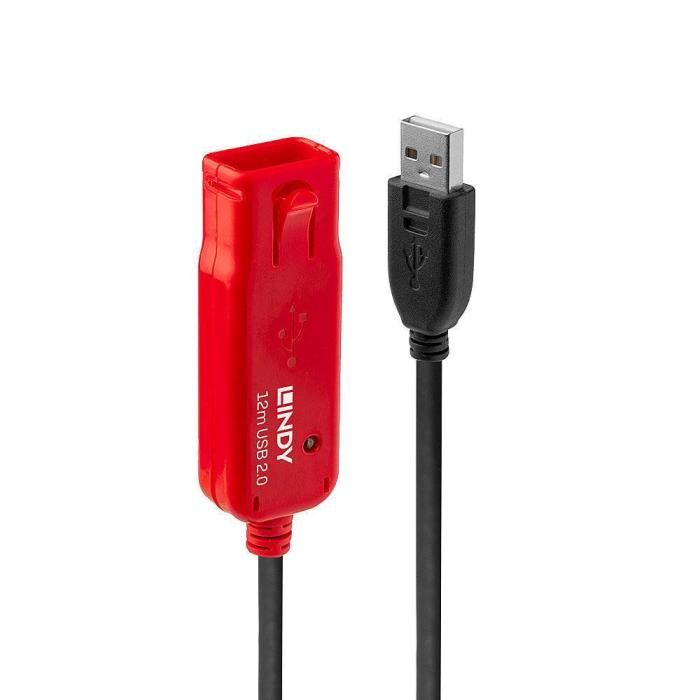

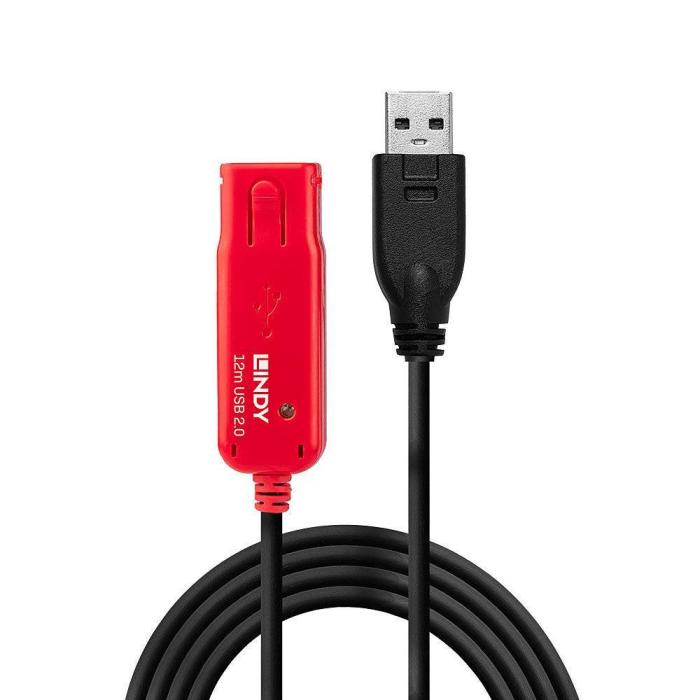

The LINDY 42782 USB cable is a 12 m black cable with USB A connectors at both ends, one male and one female, both straight. It is designed to the USB 2.0 standard and reaches a maximum data transfer speed of 480 Mbit/s, with a transfer rate of up to 0.48 Gbit/s. Its construction includes tinned copper conductors with AWG 26/20 gauge and a polyvinyl chloride sheath, while the brass contacts are gold-plated to promote a stable signal. The connector shielding is aluminium, which provides resistance to daily use. This cable, weighing 420 g, is suitable for connecting USB A devices over long distances without losing the performance of the USB 2.0 standard.
Specifications
Features
- Connector 1: USB A
- Connector 2: USB A
- Connector 1 gender: Male
- Connector 2 gender: Female
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- AWG wire size: 26/20
- Connector material: Gold/Nickel
- Contact material: Brass
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
- Conductor material: Tinned copper
- Connector shield material: Aluminium
- Connector housing material: Plastic
- Maximum data transfer rate: 0.48 Gbit/s
- Product colour: Black
- Cable type: Round cable
- Transmission medium: Twisted pair
- Nominal attenuation: 0.064 MHz, -0.08 dB 0.256MHz, -0.11 dB 0.512MHz, -0.13 dB 0.772 MHz, -0.15 dB 1 MHz, -0.2 dB 4 MHz, -0.39 dB 8 MHz, -0.57 dB 12
- USB version: USB 2.0
Weight & dimensions
- Cable length: 12 m
- Cable diameter: 5 mm
- Weight: 420 g
- Bend radius (min): 2.6 cm
- Connector 1 dimensions (WxDxH): 15 x 43 x 8 mm
- Connector 2 dimensions (WxDxH): 20 x 64 x 13 mm
Packaging data
- Package type: Box
- Package width: 238 mm
- Package depth: 202 mm
- Package height: 66 mm
- Package weight: 597 g
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
Certificates
- Certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Logistics data
- Harmonized System (HS) code: 84733080
Other features
- Compatible operating systems: Win ME, 2000, XP, Vista Mac OS Linux
