Description

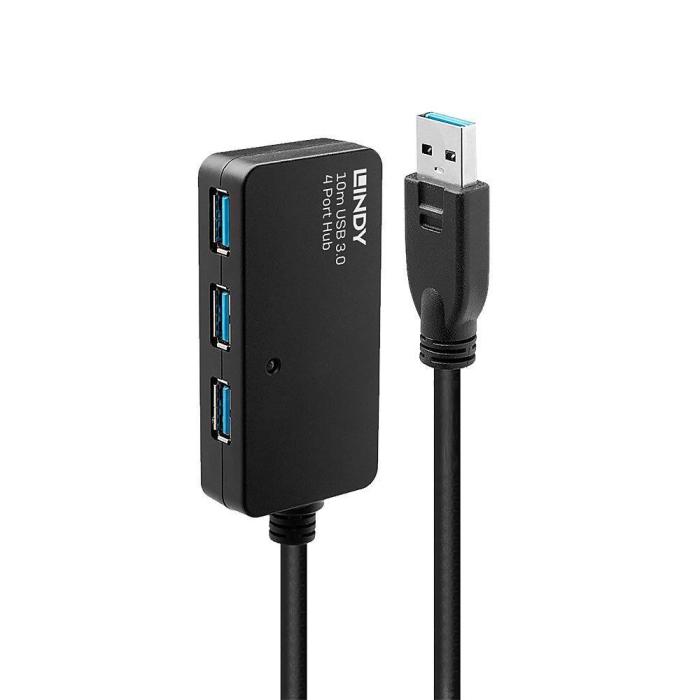

The LINDY 43159 USB hub, in black, expands your equipment's connectivity with four USB 3.2 Gen 1 Type-A ports and a data transfer speed of 5000 Mbit/s. It connects the USB 3.2 Gen 1 Type-A host interface and distributes the signal among the four type A ports, all of the same generation, to link peripherals such as drives, keyboards or mice. It features a direct current input socket and LED indicators that show the operating status. Its 10 m round cable allows you to move the hub away from the computer and place the devices where you need them, with a minimum bend radius of 3.6 cm. The housing is made of plastic, while the contacts are brass with nickel plating and the conductor is tinned copper, all with a polyvinyl chloride sheath. The cable gauge is 24/24/20 and the assembly weighs 790 g, with dimensions of 80 x 15 x 38 mm (width x height x depth).
Specifications
Ports & interfaces
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ports quantity: 4
- DC-in jack: Yes
Features
- Data transfer rate: 5000 Mbit/s
- Product colour: Black
- Housing material: Plastic
- LED indicators: Yes
- Cable type: Round cable
- Plating material: Nickel
- AWG wire size: 24/24/20
- Cable jacket material: Polyvinyl chloride (PVC)
- Cable length: 10 m
- Cable diameter: 7 mm
- Conductor material: Tinned copper
- Contact material: Brass
- Connector contacts plating: Gold
- Plug and Play: Yes
- Bend radius (min): 3.6 cm
- Transmission medium: Twisted pair
- Nominal attenuation: 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67
- Certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Power
- Power note: 3.5/1.35mm DC
Weight & dimensions
- Width: 80 mm
- Depth: 38 mm
- Height: 15 mm
- Weight: 790 g
- Connector 1 dimensions (WxDxH): 15 x 42 x 8 mm
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 240 mm
- Package depth: 200 mm
- Package height: 70 mm
- Package weight: 900 g
- Package type: Box
Packaging content
- Manual: Yes
Operational conditions
- Operating temperature (T-T): -20 - 60 °F
Design
- Cable shielding: Aluminum mylar foil
Logistics data
- Harmonized System (HS) code: 84719000
